This product has been discontinued. It is replaced by the
Symbol LS4278.

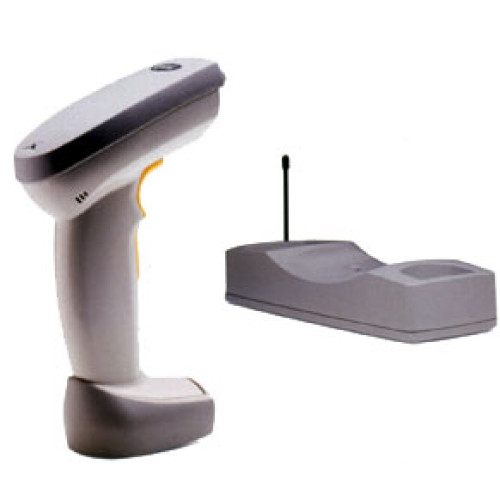

The LS4074 scanner from Symbol Technologies offers cableless scanning operation for greater flexibility, mobility and user friendliness. Ergonomically designed with the operator in mind, the LS4074 also provides excellent scanning performance superior to competitive corded scanners. Plus, it's a member of Symbol's LS 4000 family of high-performance scanners. Also available with Reduced Space Symbology (RSS).
This part is replaced by LS4278-TRWS0100ZWW. LS4074, 916 MHz. RSS Includes RL474 base, XT-AT Synapse, no adapter cable, no power supply. See accessories.
The New RF Cordless Scanner Designed for Retail and Light Industrial Applications
Cable-free for Ease of Use and Improved Performance
The LS 4074 scanner from Symbol Technologies offers cableless scanning operation for greater flexibility, mobility and user friendliness. Ergonomically designed with the operator in mind, the LS 4074 also provides excellent scanning performance superior to competitive corded scanners. Plus, it's a member of Symbol's LS 4000 family of high-performance scanners.
LS 4074 The Premier Scanner for the Retail Marketplace
The LS 4074's superior ergonomic design provides the best possible user comfort, even over extended periods of use. Its unique two-finger trigger makes scanning easier and faster. The LS 4074 is also extremely light and mobile so operators can easily scan bar codes on heavy or bulky items. And there's no cord to get caught or tangled; without a cord in the way, operators won't knock over items while reaching for hard-to-get-at bar codes. Another plus that comes from not being tethered is that the LS 4074 can scan items in shopping carts, so customers don't have to lift heavy items up to the counter.
A Scanner with Advanced Features
The LS 4074 offers features that take advantage of Symbol's advanced technology and electronics:
An RF working range of over 10 feet/3 meters. And since it is cableless, there's never any need to worry about broken cables.
It uses adaptive logic to provide excellent scanning performance on all bar codes, including damaged and poor quality symbols. And its brighter laser provides improved performance in brightly lit environments.
The LS 4074 uses flash memory to store system and application software modules. This allows for easy field updates, plus there's no need to open the scanner and physically replace the PROM chip. In addition, its Synapse™ interface makes connectivity to virtually any host a matter of just changing the cable.
Advanced Data Formatting gives LS 4074 users the ability to modify scanned data before forwarding it to the host computer.
The LS 4074 was designed for heavy use and is very durable. It has a rubber overmold canopy and a protective battery boot cover.
The LS 4074 Reliable, Flexible and Designed to Increase Productivity The new RF LS 4074 cordless scanner is designed to increase productivity. Its award-winning, advanced ergonomic design provides greater user comfort so the job is completed more effectively and with much less fatigue. In addition, there's no more downtime due to cable problems. The LS 4074 is the ideal choice for scanning jobs in retail and light warehouse and manufacturing environments.
Another Winning Scanner from Symbol Technologies The LS 4074 is an innovative cordless scanner more advanced than any offered by the competition. And it's brought to you by Symbol Technologies, the leader in bar code-driven data management systems with more than 4 million scanners and terminals installed worldwide.
The LS 4074 lets operators scan items without lifting them for added speed andconvenience and no cable restrictions.
LS4074 Specification Highlights
Performance Characteristics
Light Source:
675 nm laser diode
Scan Rate:
36 scan/sec. (bidirectional)
Roll (Skew):
±25 °
Pitch:
±55 °
Yaw:
±55 °
Print Contrast:
25% minimum reflectance
Decode Capability:
(Decoded versions, varies by model and host) UPC/EAN, UPC/EAN with supplementals, Code 39 Full ASCII, Code 128, Codabar, Interleaved 2 of 5, Discrete 2 of 5, MSI/Plessey
Interface Type:
(Varies by model) IBM 4680/4690, Wand Emulation, RS-232-C, OCR, OCIA, Fujitsu, ICL, NCR, Nixdorf, Omron, TEC, Sharp, Casio, POS and Computer Keyboard Wedges from IBM, DEC, Telex, NCR, WYSE, HP and other manufacturers
Electrical:
Complies with UL, CSA and VDE; conforms to FCC Class A and Class B limits
Power Requirements (Base Unit):
U.S.: 110V± 10%, 60 Hz;Europe: 230V± 10%, 50 Hz
Battery Capacity:
3000 scans/charge, minimum
Battery Recharge Time:
2 hr. maximum (uninterrupted)
Radio Range:
10 ft./3m, minimum
Laser Class:
(Varies by model) CDRH Class II, BSI 4803 Class I, IEC 825 Class 2, IEC 825 Class 1
Weight:
Base: 8.92 oz./253 gm (without power supply or cables);Scanners: 10.23 oz./290 gm
User Environment
Ambient Light:
Immune to normal artificial indoor and outdoor (indirect sunlight) lighting conditions
