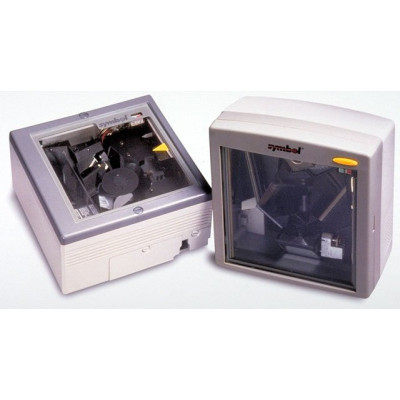

Photo of Symbol LS5800
Symbol logo

Symbol LS5800 Scanner

The Symbol LS5800 has been discontinued. No direct replacement is available.
Please contact us for a suitable substitute.

The LS5800 dense omnidirectional mini-slot scanners provide unsurpassed throughput and a high first-pass read for hands-free point-of-sale retail laser scanning. The expanded working range and aggressive performance combine for fast, accurate scanning with minimal operator effort. The result is quicker, more productive check-out operations-and happier customers. Ideal for the demanding requirements of point-of-sale scanning, the LS5800 delivers maximum performance for on-counter applications, and the LS5800 model for in-counter installation. Both models offer more advanced features than comparably priced hands-free scanners, and include support for a secondary Symbol handheld scanners, essential for retail environments with oversized or heavy merchandise. All units ship with one product reference guide.
LS5800 Options
Part # DescriptionAvailabilityPriceOrder
LS5800000TNU0S05 LS5800, Includes glass scan window tin oxide, Synapse Cables and Power supply. Check Availability Call for Details
LS5800000TNU0S00 LS5800, Includes standard glass scan window, AC adapter, Synapse Adapter Cable & product reference guide. Order Synapse smart cable separately. See accessories. Check Availability Call for Details
LS5800000TNU0500 This part is replaced by LS7808-BNNR2300UR.
LS5800, Includes standard glass scan window, AC adapter, RS-232 cable, & product reference guide.
See Replacement Call for Details
LS5800000TNU0000 LS5800, In-Counter scanner, Power supply and cord, Requires cable. Check Availability Call for Details
LS5800000SNU0S05 LS5800, Includes Sapphire glass scan window, Synapse Cables and Power supply. Check Availability Call for Details
LS5800000SNU0000 LS5800, Includes standard glass scan window with Sapphire, Power supply. Order cables separately. See accessories. Check Availability Call for Details
LS5800000SNN0500 LS5800, In-Counter scanner, STD, SS, SAP. Check Availability Call for Details
LS-5800-I200TN LS5800, Includes tempax scan window & product reference guide. Order cables & power supply separately. See accessories. Check Availability Call for Details

Symbol LS5800 Details

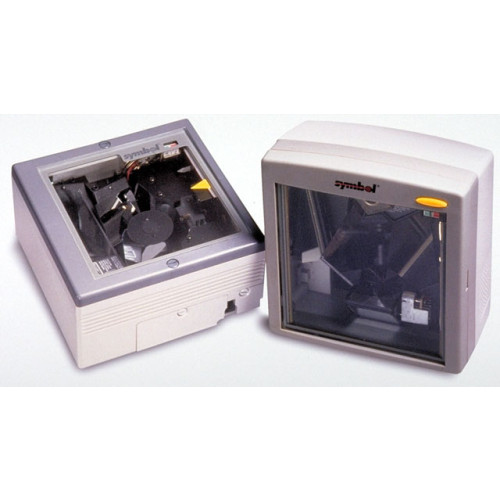

LS 5700 and LS5800 In-counter and On-counter Mini-Slot Scanners

Fast, Aggressive Mini-Slot Scanners Increase Productivity and Improve Customer Satisfaction

The LS 5700 and LS5800 omni-directional mini-slot scanners from Symbol Technologies provide unsurpassed throughput and a high first-pass read for hands-free point-of-sale retail laser scanning. The expanded working range and aggressive performance combine for fast, accurate scanning with minimal operator effort. The result is quicker, more productive check-out operations—and happier customers.

Superior Performance, Advanced Features

Ideal for the demanding requirements of point-of-sale scanning, the LS 5700 delivers maximum performance for on-counter applications, and the LS5800 model for in-counter installation. Both models offer more advanced features than comparably priced handsfree scanners, and include support for Symbol hand-held scanners—essential for retail environments with oversized or heavy merchandise.

In addition, both models feature Code stitching, an applied logic for deciphering and rebuilding damaged and truncated bar codes, which increases first-pass read rate and ensures high throughput. And the LS 5700 and LS5800 deliver additional value through overall ease of use, which reduces training time and expense.

A Profile to Fit Your POS Profile

The LS 5700 and LS5800 have been designed with your valuable check-out space in mind: both models boast the smallest footprint possible, while maintaining large scan fields for the greatest ease of use.

The scan field for the 5700 has been optimized for high-speed "swipe" scanning over the broadest possible working range—from contact to 8 in./20 cm. Items can be read flush to the counter, eliminating the need to lift merchandise. Fatigue is reduced—and the check-out process is faster. And the small footprint requires minimum space on your countertop while delivering maximum scanning performance.

The in-counter LS5800 has improved optics for reading bar codes presented perpendicular or at an angle to the scan window. Cashiers save both time and motion by simply passing merchandise over the countertop: the need to tilt bottles, cans or other items toward the scanner window is virtually eliminated. Window options are available to meet the needs of your grocery, soft goods, low-volume or high-capacity retail environment. And the low 3 in./7.6 cm profile is perfect for operators who are seated and require added leg space.

Benefits Consumers, Employees and Retailers

The LS 5700/LS5800 's unsurpassed combination of performance and features benefits customers, employees, and management.

This aggressive, cost-effective mini-slot scanner offers a choice of models to meet any countertop requirement. They join Symbol's high-performance scanner product line designed especially for retailers. Symbol Technologies is the world leader in bar code driven data management systems, with millions of scanners and terminals installed. For more information about Symbol scanners visit us at www.symbol.com/scanners

LS5800 Features

LS5800 Benefits

Aggressive first-pass read rate for excellent performance on low-contrast, damaged and poorly printed symbols

Fast scanning speeds shoppers through check-out

Omni-directional, dense scan pattern reduces movement needed to scan bar codes

Reduces need for operators to manipulate items, increases user comfort and speeds up customer throughput

Programmable depth of field adjusts to your POS environment

Controlled scan field accommodates tight check-out spaces, eliminating unintentional scans

Electronically erasable flash memory

Ensures that the LS 5700/LS5800 are easily upgraded on site

Handheld laser scanner connectivity to Symbol scanners, including the LS 4000 Series

Ideal for retail environments where a handheld scanner is often needed for oversized or heavy merchandise

Optional Electronic Article Surveillance (EAS) with interlock feature integrates bar code scanning and security tag deactivation in a single action

Saves times by eliminating the need to activate security tag in a separate step; increases effectiveness of security system and maximizes valuable point-of-sale counter space

Synapse "smart cable," a Symbol exclusive, connects the LS 5700/LS5800 to most popular POS host systems

One POS scanner is compatible with multiple host systems, eliminating the need for costly scanner upgrades when migrating across host environments; simplifies logistics and equipment management

Scanners go into automatic sleep mode when not in use, but "wake up" at the pass of a bar code

Reduces power demand and extends scanner life

Adjustable beeper volume and frequency

Adjusts to ambient noise levels; different frequencies distinguish check-outs to avoid cashier confusion

LS 5700/LS5800 Mini Slot Scanners Specification Highlights

LS 5700

LS5800

LS5800 Physical Characteristics:

Dimensions:

6 in. W x 6 in. L x 3.8 in. H 152 mm W x 152 mm L x 89 mm H

6 in. W x 6 in. L x 3.0 in. H 152 mm W x 152 mm L x 76 mm H

Weight:

2.4 lbs/1.1 kg.

2.4 lbs/1.1 kg.

Power:

5.0 Volts ±5% @ 600 mA

5.0 Volts ±5% @ 600 mA

Mounting Options:

on-counter

in-counter

LS5800 Performance Characteristics:

Light Source:

670 nm visible laser diode

670 nm visible laser diode

Scan Pattern:

16 interlocking scan lines

18 interlocking scan lines

Scan Rate:

1,600 repetitions per scan

1,600 repetitions per scan

Depth of Field:

0 to 8 in./0 to 20 cm, UPC 100%

0 to 6 in./0 to 15 cm, UPC 100%

Roll, Pitch, Yaw:

360°, -30 to 60°, ±45°

360°, 0 to 90°, ±45°

Decode Capability:

UPC/EAN/JAN, Code 39, Code 128, EAN/UCC 128, Interleaved 2 of 5, Codabar, UPC/EAN/JAN

UPC/EAN/JAN, Code 39, Code 128, EAN/UCC 128, Interleaved 2 of 5, Codabar, UPC/EAN/JAN

Interfaces Supported:

IBM 468X, 469X; OCIA; RS-232; PC/P0S Keyboard Wedge

IBM 468X, 469X; OCIA; RS-232; PC/P0S Keyboard Wedge

LS5800 User Environment

Operating Temperature:

32° to 104°F/0° to 40°C

32° to 104°F/0 to 40°C

Storage Temperature:

-40° to 140°F/-40° to 60°C

-40° to 140°F/-40° to 60°C

Humidity:

5% to 95% noncondensing

5% to 95% noncondensing

Ambient Light Immunity:

450 ft. candles/4,844 lux

450 ft. candles/4,844 lux

LS5800 Regulatory:

Electrical Safety:

Certified to UL1950, CSA C22.2 No. 950, EN60950/IEC950

Certified to UL1950, CSA C22.2 No. 950, EN60950/IEC950

Laser Safety:

CDRH Class IIa, IEC Class 1

CDRH Class IIa, IEC Class 1

EMI/RFI:

FCC Part 15 Class A, ICES-003 Class A, European Union EMC Directive, Australian SMA

FCC Part 15 Class A, ICES-003 Class A, European Union EMC Directive, Australian SMA

The Symbol LS5800 is also known as the Symbol Technologies LS5800 .
