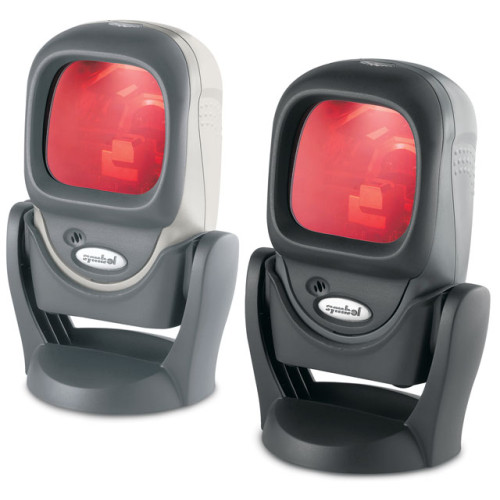

Symbol LS9208 Scanner

This product has been discontinued. It is replaced by the Symbol LS 9208i.

The Symbol LS9208 presentation scanner delivers both a high-performance processor and an innovative 100-line rastering omnidirectional scan pattern for increased productivity at checkout, resulting in higher customer satisfaction. Created to be quick and versatile, the LS9208 offers both omnidirectional and single-line scanning to cover any application. The LS9208 also supports Electronic Article Surveillance (EAS) for added security and convenience. Reads Reduced Space Symbology (RSS). All units feature a 30 month warranty.

Questions?

1-888-875-7170

Email We respond to every email

Information:	Specifications \| Ask a question \|
Accessories:	Accessories/Options \| Symbol LS9208 service contract \|

LS9208 Options

Part #	Description	Availability	Price
LS9208-SR10007NSWW	This part is replaced by LS9208-SR10007NSWR. LS9208, Includes stand & product reference guide. Color: black. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# CBA-U01-S07ZAR), PS/2 (Part# CBA-K01-S07PAR), or RS-232 Serial cables (Part# CBA-R01-S07PAR) and a Power supply (Part# PWRS-14000-253R).	See Replacement	Call for Details
LS9208-SR10007NSWR	This part is replaced by LS9208-SR11007NSWR. LS9208, Includes stand & product reference guide. Color: black. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# CBA-U01-S07ZAR), PS/2 (Part# CBA-K01-S07PAR), or RS-232 Serial cables (Part# CBA-R01-S07PAR) and a Power supply (Part# PWRS-14000-253R).	See Replacement	Call for Details
LS9208-SR10007NNWW	This part is replaced by LS9208-SR10007NNWR. LS9208, Scanner with Quick Reference Guide and No Adjustable Stand. Color: Twilight Black.	See Replacement	Call for Details
LS9208-SR10007NNWR	This part is replaced by LS9208-SR11007NNWR. LS9208, Scanner with Quick Reference Guide and No Adjustable Stand. Color: Twilight Black.	See Replacement	Call for Details
LS9208-SR10007CSWR	This part is replaced by LS9208-SR11007CSWR. LS9208, Scanner Kit (Adjustable Stand, EAS and Quick Reference Guide) - Color: Twilight Black	See Replacement	Call for Details
LS9208-SR10001NSWW	This part is replaced by LS9208-SR10001NSWR. LS9208, Includes stand & product reference guide. Color: white. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# CBA-U01-S07ZAR), PS/2 (Part# CBA-K01-S07PAR), or RS-232 Serial cables (Part# CBA-R01-S07PAR) and a Power supply (Part# PWRS-14000-253R).	See Replacement	Call for Details
LS9208-SR10001NSWR	This part is replaced by LS9208-SR11001NSWR. LS9208, Includes stand & product reference guide. Color: white. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# CBA-U01-S07ZAR), PS/2 (Part# CBA-K01-S07PAR), or RS-232 Serial cables (Part# CBA-R01-S07PAR) and a Power supply (Part# PWRS-14000-253R).	See Replacement	Call for Details
LS9208-SR10001NNWW	LS9208, No adjustable stand, Quick Reference Guide, Color: White.	Check Availability	Call for Details
LS9208-SR10001CSWW	This part is replaced by LS9208-SR10001CSWR. LS9208, Adjustable stand, EAS, Quick Reference Guide, Color: White.	See Replacement	Call for Details
LS9208-SR10001CSWR	This part is replaced by LS9208-SR11001CSWR. LS9208, Adjustable stand, EAS, Quick Reference Guide, Color: White.	See Replacement	Call for Details
LS9208-C14R2800SR	This part is replaced by LS9208I-C14R2800SR. LS9208, Ruby Ready RS-232 kit. VeriFone Ruby Cable 9 ft. Coiled 25-43156-20, No Synapse smart cable, Stand 20-59808-01 or -04 Only. Color: Twilight Black.	See Replacement	Call for Details
LS9208-C14R2800S	This part is replaced by LS9208-C14R2800SR. LS9208, Ruby Ready RS-232 kit. VeriFone Ruby Cable 9 ft. Coiled 25-43156-20, No Synapse smart cable, Stand 20-59808-01 or -04 Only. Color: Twilight Black.	See Replacement	Call for Details
LS9208-7NNU0300SR	This part is replaced by LS9208I-7NNU0300SR. LS9208, PoweredUSB Kit, Stand, 6.0S and CD. Color: Black. Call to purchase. RoHS.	See Replacement	Call for Details
LS9208-7NNU0100SR	This part is replaced by LS9208I-7NNU0100SR. LS9208, USB kit: Scanner, USB cable, stand, & product reference guide. Color: black.	See Replacement	Call for Details
LS9208-7NNU0100S	This part is replaced by LS9208-7NNU0100SR. LS9208, USB kit: Scanner, USB cable, stand, & product reference guide. Color: black.	See Replacement	Call for Details
LS9208-7NNS0100DR	This part is replaced by LS9208I-7NNS0100DR. LS9208, Synapse kit: Includes Synapse Adapter 6' straight cable, stand and US power supply, No EAS, No Plural Stage Application. Synapse smart cable not included. See accessories. Color: Black.	See Replacement	Call for Details
LS9208-7NNS0100D	This part is replaced by LS9208-7NNS0100DR. LS9208, Synapse kit: Includes Synapse Adapter 6' straight cable, stand and US power supply, No EAS, No Plural Stage Application. Synapse smart cable not included. See accessories. Color: Black.	See Replacement	Call for Details
LS9208-7NNR2800SR	This part is replaced by LS9208I-7NNR2800SR. LS9208, RS-232 kit: Scanner, power supply, RS-232 VeriFone cable, stand, product reference guide & Software CD.	See Replacement	Call for Details
LS9208-7NNR2800S	This part is replaced by LS9208-7NNR2800SR. LS9208, RS-232 kit: Scanner, power supply, RS-232 VeriFone cable, stand, product reference guide & Software CD.	See Replacement	Call for Details
LS9208-7NNR0100DR	This part is replaced by LS9208I-7NNR0100DR. LS9208, RS-232 kit: Scanner, power supply, RS-232 cable, stand, & product reference guide. Color: black.	See Replacement	Call for Details
LS9208-7NNR0100D	This part is replaced by LS9208-7NNR0100DR. LS9208, RS-232 kit: Scanner, power supply, RS-232 cable, stand, & product reference guide. Color: black.	See Replacement	Call for Details
LS9208-7NNM0100SR	This part is replaced by LS9208I-7NNM0100SR. LS9208, 468X/9X kit: Includes 468X/9X 7' straight cable, stand and US power supply, No EAS, No Plural Stage Application. Color: Black.	See Replacement	Call for Details
LS9208-7NNM0100S	This part is replaced by LS9208-7NNM0100SR. LS9208, 468X/9X kit: Includes 468X/9X 7' straight cable, stand and US power supply, No EAS, No Plural Stage Application. Color: Black.	See Replacement	Call for Details
LS9208-7NNK0100DR	This part is replaced by LS9208I-7NNK0100DR. LS9208, Keyboard wedge kit: Scanner, power supply, PS/2 Y-cable, stand, & product reference guide. Color: black.	See Replacement	Call for Details
LS9208-7NNK0100D	This part is replaced by LS9208-7NNK0100DR. LS9208, Keyboard wedge kit: Scanner, power supply, PS/2 Y-cable, stand, & product reference guide. Color: black.	See Replacement	Call for Details
LS9208-1NNU0300SR	This part is replaced by LS9208I-1NNU0300SR. LS9208, PoweredUSB Kit, Stand, 6.0S and CD. Color: White. Call to purchase. RoHS.	See Replacement	Call for Details
LS9208-1NNU0100SR	This part is replaced by LS9208I-1NNU0100SR. LS9208, USB kit: Scanner, USB cable, stand, & product reference guide. Color: white.	See Replacement	Call for Details
LS9208-1NNU0100S	This part is replaced by LS9208-1NNU0100SR. LS9208, USB kit: Scanner, USB cable, stand, & product reference guide. Color: white.	See Replacement	Call for Details
LS9208-1NNS0100DR	This part is replaced by LS9208I-1NNS0100DR. LS9208, Synapse kit: Includes Synapse Adapter 6' straight cable, stand and US power supply, No EAS, No Plural Stage Application. Synapse smart cable not included. See accessories. Color: White.	See Replacement	Call for Details
LS9208-1NNS0100D	This part is replaced by LS9208-1NNS0100DR. LS9208, Synapse kit: Includes Synapse Adapter 6' straight cable, stand and US power supply, No EAS, No Plural Stage Application. Synapse smart cable not included. See accessories. Color: White.	See Replacement	Call for Details
LS9208-1NNR1000SR	This part is replaced by LS9208I-1NNR1000SR. LS9208, Nixdorf Beetle kit: includes stand, RS-232 Nixdorf Beetle-Direct Power 7' straight cable and product CD. Color: White.	See Replacement	Call for Details
LS9208-1NNR0100DR	This part is replaced by LS9208I-1NNR0100DR. LS9208, RS-232 kit: Scanner, power supply, RS-232 cable, stand, & product reference guide. Color: white.	See Replacement	Call for Details
LS9208-1NNR0100D	This part is replaced by LS9208-1NNR0100DR. LS9208, RS-232 kit: Scanner, power supply, RS-232 cable, stand, & product reference guide. Color: white.	See Replacement	Call for Details
LS9208-1NNM0200SR	This part is replaced by LS9208I-1NNM0200SR. LS9208, 468X/9X kit: Includes 468X/9X 9' coiled cable, stand and US power supply. Color: White.	See Replacement	Call for Details
LS9208-1NNM0200S	This part is replaced by LS9208-1NNM0200SR. LS9208, 468X/9X kit: scanner, 8.5 ft. coiled 9B cable, adjustable stand. Color: white.	See Replacement	Call for Details
LS9208-1NNM0100SR	This part is replaced by LS9208I-1NNM0100SR. LS9208, 468x/469x Port 9B kit: Includes stand, 7' straight interface cable and product CD. Color: White.	See Replacement	Call for Details
LS9208-1NNM0100S	This part is replaced by LS9208-1NNM0100SR. LS9208, 468X/9X kit: Includes 468X/9X 7' straight cable, stand and US power supply, No EAS, No Plural Stage Application. Color: White.	See Replacement	Call for Details
LS9208-1NNK0100DR	This part is replaced by LS9208I-1NNK0100DR. LS9208, Keyboard wedge kit: Includes cable, stand, power supply and product CD. Color: White.	See Replacement	Call for Details
LS9208-1NNK0100D	This part is replaced by LS9208-1NNK0100DR. LS9208, Keyboard wedge kit: Scanner, power supply, PS/2 Y-cable, stand, & product reference guide. Color: white.	See Replacement	Call for Details
LS9208-1NN00000DR	This part is replaced by LS9208I-1NN00000DR. LS9208, Includes stand and power supply kit. Color: White. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# CBA-U01-S07ZAR), PS/2 (Part# CBA-K01-S07PAR), or RS-232 Serial cables (Part# CBA-R01-S07PAR) and a Power supply (Part# PWRS-14000-253R).	See Replacement	Call for Details
LS9208-1NN00000D	This part is replaced by LS9208-1NN00000DR. LS9208, Includes stand and power supply kit. Color: White. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# CBA-U01-S07ZAR), PS/2 (Part# CBA-K01-S07PAR), or RS-232 Serial cables (Part# CBA-R01-S07PAR) and a Power supply (Part# PWRS-14000-253R).	See Replacement	Call for Details

Symbol LS9208 Details

2005 Sunrise Date Compliant

Speed and Versatility Combine for Increased Productivity at Checkout

The LS9208 presentation scanner, from Symbol Technologies, delivers both a high-performance processor and an innovative 100-line rastering omnidirectional scan pattern for increased productivity at checkout, resulting in higher customer satisfaction.

Built for both speed and versatility, the LS9208 features a small footprint, choice of colors and an optional, adjustable multimount stand that is easily adaptable to many point-of-sale environments, such as:

Environment:

Applications:

Retail (convenience stores, grocery stores, department stores, specialty hard and soft goods stores)	Customer checkout EAS tag deactivation Back room applications
Pharmacies and drug stores	Customer checkout EAS tag deactivation Prescription verification Distribution and management of controlled substances
Other	Time and attendance Library Office automation

Robust New Features Offer Easy Set Up and Reduced Costs

With the 123Scan setup utility, programming and configuring the LS9208 is made easy and minimizes startup time wherever the scanner is used. What's more, multiple onboard interfaces and universal cables further reduce your inventory requirements. For the most investment protection, the LS9208 also features built in shock absorption that adds unmatched durability for a scanner in this class. The LS9208 offers premium features and powerful performance to help you save time and money.

Today's Most Advanced Presentation Scanner from a Global Leader

In many applications, the feature-rich LS9208 presentation scanner offers aggressive performance, maximum durability and optimal ergonomics to create a more productive POS environment. When you buy the LS9208 , you receive the added assurance of purchasing from Symbol—a company with proven solutions and millions of scanner installations worldwide.

To find out more about how your company can benefit from Symbol's scanners contact us at any of our offices, or visit us at www.symbol.com/bar code.

LS9208 Features

Benefits

High-performance, 100-line rastering omnidirectional scan pattern	Increased productivity for novice and expert users resulting in shorter checkout lines, better customer service
Single line scan pattern	Perfect for reading bar code menus and pick lists
Multiple onboard interfaces	Flexible host connectivity protects your hardware investment
Universal cables	Allows for easy replacement and/or upgrades
Small footprint	Fits into the tightest cash/wrap environment
Adjustable, multimount stand	Optimize operator comfort and efficiency
Built-in shock absorption	Protects scan module assembly increasing durability
Flash memory	Facilitates updates/customization of product in the field
Checkpoint Electronic Article Surveillance (EAS) deactivation option	Integrated antenna saves valuable counter space
Supports 123Scan setup utility	Flexible setup using PC download
Reads Reduced Space Symbology® (RSS)	Compatibility with new symbology leverages your hardware investment
Global Trade Item Number (GTIN) Compliant	Capable of decoding and transmitting 14-digit GTINs, where appropriate
Advanced Data Formatting (ADF)	Enables users to modify data prior to sending to host computer, eliminating costly modifications to the host software

LS9208 Omnidirectional Scanner Specification Highlights

LS9208 Physical Characteristics:

Dimensions:	Scanner only: 5.51 in H x 3.49 in W x 2.96 in. D 14 cm H x 8.8 cm W x 7.5 cm D With adjustable stand: 7.18 in H x 4.83 in W x 3.73 in. D/ 18.24 cm H x 12.27 cm W x 9.47 cm D
Weight:	Scanner only: 10.2 oz/320 g With adjustable stand: 21.5 oz/670 g
Power Source:	Power drawn from Host terminal or external power supply; depends on Host type
Voltage:	5.0 VDC +/- 10%
Nominal Current:	390 mA
Power:	2 Watts
Mounting Options:	Adjustable multi-mount stand
Color:	Cash Register White or Twilight Black

LS9208 Performance Characteristics:

Light Source:	650 nm visible laser diode
Roll (Tilt ): ¹	Omnidirectional: 360° Single scan line: +/- 40°
Pitch: ²	Omnidirectional: +/- 50° Single scan line: +/- 60
Skew (Yaw): ³	Omnidirectional: +/- 50° Single scan line: +/- 50°
Print Contrast:	25% minimum reflective difference
Scan Patterns:	Omnidirectional: 20 interlocking lines, 5 scan angles, 4 lines per angle rastering @ 5Hz Single scan line capability
Scan Rate:	Omnidirectional: 1500 scans per second Single scan line: 75 scans per second
Depth of Field:	0-9 in./0-22.9 cm @ 13 mil (100 % UPC/EAN)
Nominal Working Range:	5 mil (38%) 1–2.5 in./2.5–6.4 cm 7.8 mil (60%) 0–6 in./0–15.2 cm 10.4 mil (80%) 0–7.5 in./0–19 cm 13 mil (100%) 0–9 in./0–22.9 cm
Width of Field:	1.6 in./40 mm @ Face 6.7 in./170 mm @ 9 inches
Minimum Resolution:	5 mils
Decode Capability:	UPC/EAN/JAN, UPC/EAN with Supplementals, UCC/EAN 128, Code 128, ISBT 128, Code 39, Code 39 Trioptic, Interleaved 2 of 5, Discrete 2 of 5, Code 93, Code 11, Codabar, MSI, RSS variants
Interfaces Supported:	USB, RS232, IBM® 468X/9X, Keyboard Wedge, Wand and Synapse™ (allows connectivity to virtually every POS host type)

LS9208 User Environment

Operating Temperature:	32° to 104°F/0° to 40°C
Storage Temperature:	-40° to 158°F/-40° to 70°C
Humidity:	5% to 95% noncondensing
Drop Specifications:	Withstands repeated 4 ft/1.2 m drops to concrete
Ambient Light Immunity:	Immune to normal artificial indoor and natural outdoor (direct sunlight) lighting conditions. Fluorescent, Incandescent, Mercury Vapor and Sodium Vapor: 450 ft-candles (4,844 LUX) Sunlight: 8,000 ft-candles (86,111 LUX)
EAS Support:	Optional Checkpoint Electronic Article Surveillance EAS

LS9208 Regulatory:

Electrical Safety:	Certified to UL 1950, CSA C22.2 No. 950 EN60825
Laser Safety:	CDRH Class IIa Laser Product IEC 60825 Class 1 Laser Product
EMC:	CISPR B, FCC B
