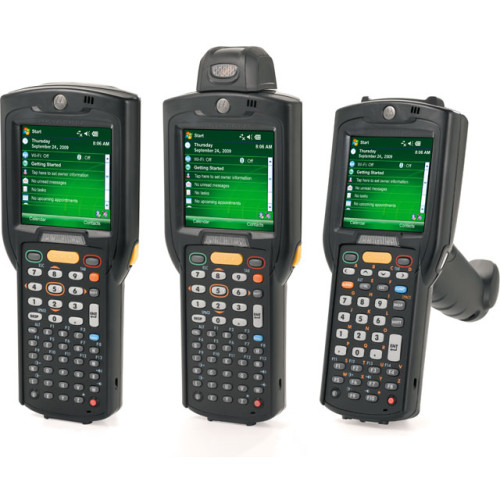

Symbol MC 3100 Hand Held Computer

Building on the successful MC3000, the new Symbol MC 3100 brings cost-effective mobility and user comfort to key-based applications within the four walls. The rugged and ergonomic MC 3100 offers advanced computing power and data capture capabilities, enhanced security and enterprise class motion sensing capabilities. MC3000 users will require virtually no training on the MC 3100. Because the MC3000, MC 3100 and many other Motorola mobile computers share a common architectural platform, porting existing applications to the MC 3100 is fast and easy. And compatibility with existing MC3000 accessories provides a seamless upgrade path to the latest in mobile computing.
Questions?
1-888-875-7170
We respond to every email
MC 3100 Options
Part # DescriptionAvailabilityPriceOrder
MC3100-SI3H04E00 MC3100, MC: BATCH, Bluetooth, SS, 2D, 38KY, 2X, CE6 256/1G Ships Free Today $742.66
MC3190-SL4H24E0A MC3190-S, Wi-Fi (802.11a/b/g), Brick Straight Shooter, 1D Laser Scanner, 48 key Alphanumeric Keypad, High Capacity Battery, Bluetooth, Full Audio, Color Touch Display, Windows Mobile 6.5 Classic, 256MB RAM/1GB ROM, English. Cables and Charging Cradle Not Included. For the full kit see (Part# MC3190-SL4H24E0A-KIT). See Replacement Call for Details
MC3190-SL4H12E0U MC3190-S, MC3100 Mobile Computer - Intel Xscale 624 MHz - 128 Mb RAM - 512 Mb Flash - 3" LCD - 48 Keys - Alphanumeric Keyboard See Replacement Call for Details
MC3190-SL4H04E0A MC3190-S, Brick Straight Shooter, 1D Laser Scanner, 48 key Alphanumeric Keypad, High Capacity Battery, Wi-Fi/Bluetooth, Full Audio, Color Touch Display, Windows CE 6.0 Pro, 256MB RAM/1GB ROM, English. Cables and Charging Cradle Not Included. For the full kit see (Part# MC3190-SL4H04E0A-KIT). See Replacement Call for Details
MC3190-SL3H24E0A MC3190-S, Brick Straight Shooter, 1D Laser Scanner, 38 key Alpha Shift Keypad, High Capacity Battery, Wi-Fi/Bluetooth, Full Audio, Color Touch Display, Windows Mobile 6.5 Classic, 256MB RAM/1GB ROM, English. Cables and Charging Cradle Not Included. For the full kit see (Part# MC3190-SL3H24E0A-KIT). See Replacement Call for Details
MC3190-SL3H04E0A MC3190-S, Wi-Fi (802.11a/b/g), Brick Straight Shooter, 1D Laser Scanner, Windows CE 6.0, 38 key Alpha Shift Keypad, High Capacity Battery, Bluetooth, Full Audio, Color Touch Display, 256MB RAM/1GB ROM, English. Interface cables and charging cradle sold separately. For the full kit see (Part# MC3190-SL3H04E0A-KIT). See Replacement Call for Details
MC3190-SL3H02E0U MC3190-S, 802.11a/b/g, Bluetooth, Full Audio, Straight Shooter, 1D Laser SE950, Color-Touch Display, 38 key, High Capacity Battery, Ce 6.0 Pro, 128MB RAM/512MB ROM, English, United States Only See Replacement Call for Details
MC3190-SL2H24E0A MC3190-S, Brick Straight Shooter, 1D Laser Scanner, 28 key Numeric Keypad, High Capacity Battery, Wi-Fi/Bluetooth, Full Audio, Color Touch Display, Windows Mobile 6.5 Classic, 256MB RAM/1GB ROM, English. Cables and Charging Cradle Not Included. See Replacement Call for Details
MC3190-SL2H04E0A MC3190-S, Brick Straight Shooter, 1D Laser Scanner, 28 key Numeric Keypad, High Capacity Battery, Full Audio, Color Touch Display, Windows CE 6.0 Pro, 256MB RAM/1GB ROM, English. Cables and Charging Cradle Not Included. For the full kit see (Part# MC3190-SL2H04E0A-KIT). See Replacement Call for Details
MC3190-SI4S04E0A MC3190-S, Brick Straight Shooter, 2D Imager, 48 key Alphanumeric Keypad, Standard Capacity Battery, Wi-Fi/Bluetooth, Full Audio, Color Touch Display, Windows CE 6.0 Pro, 256MB RAM/1GB ROM, English. Cable and charging cradle not included. See Replacement Call for Details
MC3190-SI4H24E0A MC3190-S, Wi-Fi (802.11a/b/g), Brick Straight Shooter, 2D Imager, 48 key Alphanumeric Keypad, High Capacity Battery, Bluetooth, Full Audio, Color Touch Display, Windows Mobile 6.5 Classic, 256MB RAM/1GB ROM, English. Interface cables and charging cradle sold separately. For the full kit see (Part# MC3190-SI4H24E0A-KIT). See Replacement Call for Details
MC3190-SI4H04E0A MC3190-S, Wi-Fi (802.11a/b/g), Brick Straight Shooter, 2D Imager, Windows CE 6.0, 256MB RAM/1GB ROM, 38 key AlphaShift Keypad, High Capacity Battery, Bluetooth, Full Audio, Color Touch Display, English. Interface cables and charging cradle sold separately. For the full kit see (Part# MC3190-SI4H04E0A-KIT). See Replacement Call for Details
MC3190-SI3H24E0A MC3190-S, Brick Straight Shooter, 2D Imager, 38-key Alpha Shift Keypad, High Capacity Battery, WiFi/Bluetooth, Full Audio, Color Touch Display, Windows Mobile 6.5 Classic, 256MB RAM/1GB ROM, English. Cables and Charging Cradle Not Included. For the full kit see (Part# MC3190-SI3H24E0A-KIT). See Replacement Call for Details
MC3190-SI3H04E0A MC3190-S, Wi-Fi (802.11a/b/g), Brick Straight Shooter, 2D Imager, Windows CE 6.0, 256MB RAM/1GB ROM, 38 key AlphaShift Keypad, High Capacity Battery, Bluetooth, Full Audio, Color Touch Display, English. Interface cables and charging cradle sold separately. For the full kit see (Part# MC3190-SI3H04E0A-KIT). See Replacement Call for Details
MC3190-SI3H02E0U MC3190-S, I3h02e0u Handheld Terminal - Intel Xscale 624 MHz - 128 Mb RAM - 512 Mb Flash - 3" LCD - 38 Keys - Alpha Keyboard See Replacement Call for Details
MC3190-SI2H04E0A MC3190-S, Brick Straight Shooter, 2D Imager, 28 key Numeric Keypad, High Capacity Battery, Wi-Fi/Bluetooth, Full Audio, Color Touch Display, Windows CE 6.0 Pro, 256MB RAM/1GB ROM, English. Cables and Charging Cradle Not Included. For the full kit see (Part# MC3190-SI2H04E0A-KIT). See Replacement Call for Details

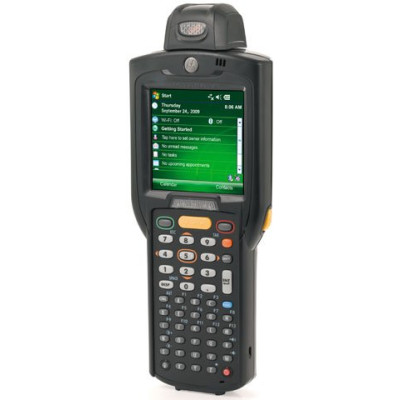

MC3190-RL4S24E0A MC3190-R, Wi-Fi (802.11a/b/g), Rotating head, 1D Laser Scanner, Windows Mobile 6.5 Classic, 256MB RAM/1GB ROM, 48 key Alphanumeric Keypad, Bluetooth, Full Audio, Color Touch Display, English. Interface cables and charging cradle sold separately. For the full kit see (Part# MC3190-RL4S24E0A-KIT). See Replacement Call for Details
MC3190-RL4S12E0U MC3190-R, L4s12e0u Handheld Terminal - Intel Xscale 624 MHz - 128 Mb RAM - 512 Mb Flash - 3" LCD - 48 Keys - Alphanumeric Keyboard See Replacement Call for Details
MC3190-RL4S04E0A MC3190-R, Wi-Fi (802.11a/b/g), Rotating head, 1D Laser Scanner, 48 key Alphanumeric Keypad, Bluetooth, Full Audio, Color Touch Display, Windows CE 6.0 Pro, 256MB RAM/1GB ROM, English. Interface cables and charging cradle sold separately. For the full kit see (Part# MC3190-RL4S04E0A-KIT). See Replacement Call for Details
MC3190-RL4S02E0U MC3190-R, MC3100 Mobile Computer - Intel Xscale 624 MHz - 128 Mb RAM - 512 Mb Flash - 3" LCD - 48 Keys - Alphanumeric Keyboard See Replacement Call for Details
MC3190-RL3S24EIA MC3190-R, Rotating Head, 1D Laser Scanner, 38 key Numeric Keypad, Interactive Sensor Technology, Standard Capacity Battery, Wi-Fi/Bluetooth, Full Audio, Color Touch Display, Windows Mobile 6.5 Classic, 256MB RAM/1GB ROM, English. Cables and Charging Cradle Not Included. For the full kit see (Part# MC3190-RL3S24EIA-KIT). See Replacement Call for Details
MC3190-RL3S24E0A MC3190-R, Wi-Fi (802.11a/b/g), Rotating head, 1D Laser Scanner, Windows Mobile 6.5 Classic, 256MB RAM/1GB ROM, 38 key Alpha Shift Keypad, Bluetooth, Full Audio, Color Touch Display, English. Interface cables and charging cradle sold separately. For the full kit see (Part# MC3190-RL3S24E0A-KIT). See Replacement Call for Details
MC3190-RL3S04EIA MC3190-R, Rotating Head, 1D Laser Scanner, 38 key Numeric Keypad, Standard Capacity Battery, Interactive Sensor Technology, Wi-Fi/Bluetooth, Full Audio, Color Touch Display, Windows CE 6.0 Pro, 256MB RAM/1GB ROM, English. Cables and Charging Cradle Not Included. For the full kit see (Part# MC3190-RL3S04EIA-KIT). See Replacement Call for Details
MC3190-RL3S04E0A MC3190-R, Rotating Head, 1D Laser Scanner, 38 key Shifted Alpha Keypad, Wi-Fi/Bluetooth, Full Audio, Color Touch Display, Windows CE 6.0 Pro, 256MB RAM/1GB ROM, English. Cables and Charging Cradle Not Included. For the full kit see (Part# MC3190-RL3S04E0A-KIT). See Replacement Call for Details
MC3190-RL3S02EIU MC3190-R, MC3190-Si2h02e0w Handheld Terminal - Intel Xscale 624 MHz - 128 Mb RAM - 512 Mb Flash - 3" LCD - 38 Keys - Alpha Keyboard See Replacement Call for Details
MC3190-RL3S02E0U MC3190-R, L3s02e0u Handheld Terminal - Intel Xscale 624 MHz - 128 Mb RAM - 512 Mb Flash - 3" LCD - 38 Keys - Alpha Keyboard See Replacement Call for Details
MC3190-RL2S24E0A MC3190-R, Rotating Head, 1D Laser Scanner, 28-key Numeric Keypad, Standard Capacity Battery, WiFi/Bluetooth, Full Audio, Color Touch Display, Windows Mobile 6.5 Classic, 256MB RAM/1GB ROM, English. Cables and Charging Cradle Not Included. For the full kit see (Part# MC3190-RL2S24E0A-KIT). See Replacement Call for Details
MC3190-RL2S04E0A MC3190-R, Wi-Fi (802.11a/b/g), Rotating Head, 1D Laser Scanner, 28 key Numeric Keypad, Bluetooth, Full Audio, Color Touch Display, Windows CE 6.0 Pro, 256MG RAM/1GB Rom, English. Cables and Charging Cradle Not Included. For the full kit see (Part# MC3190-RL2S04E0A-KIT). See Replacement Call for Details
MC3190-RL2H04E0A MC3190-R, Rotating Head, 1D Laser Scanner, 28 key Numeric Keypad, High Capacity Battery, Wi-Fi/Bluetooth, Full Audio, Color Touch Display, Windows CE 6.0 Pro, 256MB RAM/1GB ROM, English. Cables and charging cradle not included. See Replacement Call for Details
MC3190-GL3H04EIA MC3190-G, Gun Grip, 1D Laser Scanner, High Capacity Battery, Interactive Sensor Technology, Wi-Fi/Bluetooth, Full Audio, Color Touch Display, Windows CE 6.0 Pro, 256MB RAM/1GB ROM, English. Cables and charging cradle not included. See Replacement Call for Details

Page: 1 2 »

Symbol MC 3100 Details

2-D Imager Engine

Aiming element (VLD)
655 ± 10 nm Laser (SE4500 SR and SE4500 HD)

Illumination element (LED)
625 ± 5 nm LEDs (2x) (SE4500 SR and SE4500 HD)

Field of View
Horizontal: 38°/Vertical: 25° (SE4500 SR);Horizontal: 39°/Vertical: 25° (SE4500 HD)

Pitch angle
±60° (SE4500 SR and SE4500 HD)

Skew tolerance
±60° (SE4500 SR and SE4500 HD)

Roll
360° (SE4500 SR and SE4500 HD)

Sensor resolution
752 x 480 pixels (SE4500 SR and SE4500 HD)

Communications

WLAN
Tri-mode IEEE® 802.11a/b/g; CCXv4 certified; support for IPv6; FIPS140-2 Certified

WPAN (Bluetooth Support)
Class II, v2.1 with Enhanced Data Rate (EDR), Integrated antenna

Linear 1-D Scanner

Optical resolution
4 Mil minimum element width

Scan angle
47° ± 3° default; configurable narrow angle: 35° ± 3°

Scan rate
104 (+/- 12) scans/sec (bi-directional)

Performance Characteristics

Memory
256MB RAM / 1G Flash

Data capture options
1-D Laser Scanner, 1-D/2-D Imager, DPM

Operating system (OS)
Microsoft Windows Mobile 6.1 Classic, Microsoft Windows CE 6.0 Pro, Microsoft Windows Mobile 6.5 Classic Edition

Processor (CPU)
Marvell PXA320 @ 624 MHz

Physical Characteristics

Audio options
VOWLAN, Rugged audio connector, Handset and headset modes, Speakerphone

Headset
Bluetooth headset, Wired headset

Dimensions (HxWxD)
Straight Shooter:
7.49 in. H x 3.25 in. W x 1.77 in. D/190.4 mm x 82.6 mm x 45.2 mm
At grip:
2.40 in. W x 1.44 in. D/61.2 mm x 36.8 mm
Rotating Turret:
8.37 in. L x 3.22 in. W x 1.57 in. D/ 212.6 mm x 81.9 mm x 40.0 mm
At grip:
2.40 in. W x 1.14 in. D/61.2 mm x 29 mm
Gun configurations:
7.5 in. H x 3.2 in. W x 6.5 in. D/193 mm x 80.8 mm x 166 mm

Display type
3.0 in. Color (TFT) Display with backlight

Keypad options
28-key Numeric, 38-key Shifted Alpha, 48-key Alpha-Numeric

Notification
Audio notifications, Programmable LEDs

Zebra Interactive Sensor Technology
3-axis accelerometer that enables motion-sensing applications on dynamic screen orientation, power management and free-fall detects

Expansion slot
User accessible (located under battery), Approved for memory expansion only, Standard SD slot

Weight (including strap, stylus and battery)
Straight Shooter Imager or Laser:
14.95 oz./424 gm
Rotating Turret:
13.52 oz./384 gm (with standard battery)
Gun Configurations:
18.34 oz./520 gm (with extended battery)

Power

Battery
Standard rechargeable Li-Ion battery: 2740mAh @ 3.7 VDC (Straight Shooter and Rotating Turret models) Extended rechargeable Li-Ion battery: 4800mAh @ 3.7 VDC (all models)

Regulatory Specifications

Electrical safety
CSA C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, Certified to UL / cUL 60950-1

Laser safety1
EN 60825-1, IEC 60825-1, IEC Class 2/FDA Class II

RF exposure
USA: FCC Part 2, FCC OET Bulletin 65 Supplement C; Canada: RSS-102; EU: EN 62311; Australia: Radiocommunications Standard 2003

EMI/RFI
Batch: USA: FCC Part 15; Canada: ICES 003 Class B; EU: EN55022 Class B EN55024; Japan: CISPR 22, Class B; Australia: AS3548; Radio: USA: FCC Part 15; Canada: RSS210 Class B; EU: EN 301 489-1, 489-17

User Environment

Ambient lighting tolerance2
Tolerant to typical artificial indoor and natural outdoor (direct sunlight) lighting conditions. Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED : 450 Ft Candles (4, 844 Lux) Sunlight: 8000 Ft Candles (86, 111 Lux)

Environmental sealing
IP54 category 2; meets or exceeds applicable IEC sealing specifications

Drop specification
Multiple 4 ft./1.2 m drops to concrete across the operating temperature range, Multiple 5 ft./1.5 m drops to concrete at ambient temperature 73° F/23° C; meets and exceeds MIL-STD 810G

Electrostatic discharge (ESD)
+/-15kVDC air discharge, +/-8kVDC direct discharge, +/-8kVDC indirect discharge

Humidity
5 - 95% non-condensing

Operating temperature
-4° to 122° F/-20° to 50° C

Storage temperature
-40°F to 158° F/-40° to 70° C

Tumble specifications
500 1.64 ft./0.5 m tumbles (1, 000 drops) at room temperature per IEC 68-2-32
