Photo of Symbol MC 50
Symbol logo

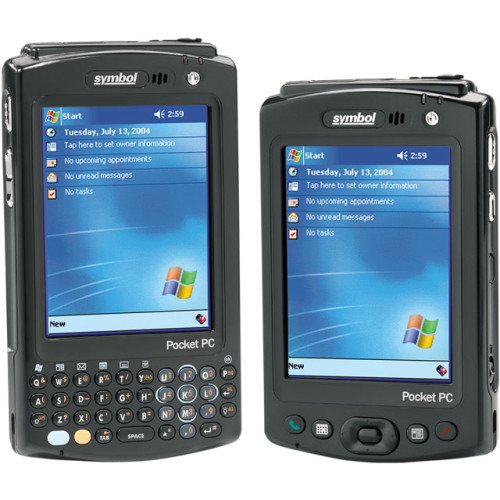

Symbol MC 50 Hand Held Computer

This product is discontinued and replaced by the
Symbol MC 55: MC 5590 & MC 5574 Symbol
MC 55: MC 5590 & MC 5574
The MC 50 from Symbol Technologies is first in a class of mobile computers that combines an enhanced PDA-style form factor with optimal performance to operate enterprise-level applications. This small, lightweight mobile computer features advanced data capture options, flexible voice and data communication and easy wireless local area network (WLAN) synchronization.
MC 50 Options
Part # DescriptionAvailabilityPriceOrder
MC5040-PS0DBQEA8WR This part is replaced by MC5590-PU0DKQQA7WR.
MC 50, Wireless Enterprise Digital Assistant, WLAN, Positron, 64MB RAM, 64MB ROM, QWERTY keypad, Pocket PC 2003 (Microsoft Windows Mobile 2003 Second Edition), 3400 mAh (extended) battery. Order cradle, cables & power supply separately. See accessories.
See Replacement Call for Details
MC5040-PS0DBQEA7WR This part is replaced by MC5590-PU0DKQQA7WR.
MC 50, Wireless Enterprise Digital Assistant - 802.11b WLAN, CSE600 Linear CMOS Imager with 1D support, QWERTY Keyboard, 1560 mAh Lithium-ion rechargeable Battery, Windows Mobile 2003 and 64/64. Includes soft case (Part# 21-67294-01R). Order cradle, cables & power supply separately. See accessories. Formerly listed as (Part# MC50-SQ10)
See Replacement Call for Details
MC5040-PS0DBNEA8WR-KIT This part is replaced by MC5590-PK0DKQQA9WR-KIT.
MC 50 Complete Kit, Includes everything you need: MC50 terminal (Wireless Enterprise Digital Assistant - 802.11b WLAN, CSE600 Linear CMOS Imager with 1D support, 4 key PIM + Navigation keys, 3600 mAh Lithium-ion rechargeable Battery, Windows Mobile 2003 and 64/64. Includes soft case Part# 21-67294-01R. Order cradle, cables & power supply separately. See accessories. Formerly listed as (Part# MC50-SP20), cradle, USB cable, power supply, and line cord.
See Replacement Call for Details
MC5040-PS0DBNEA8WR This part is replaced by MC5590-PU0DKNQA9WR.
MC 50, Wireless Enterprise Digital Assistant - 802.11b WLAN, CSE600 Linear CMOS Imager with 1D support, 4 key PIM + Navigation keys, 3600 mAh Lithium-ion rechargeable Battery, Windows Mobile 2003 and 64/64. Includes soft case (Part# 21-67294-01R). Order cradle, cables & power supply separately. See accessories. Formerly listed as (Part# MC50-SP20)
See Replacement Call for Details
MC5040-PS0DBNEA7WR This part is replaced by MC5590-PU0DKNQA7WR.
MC 50, Wireless Enterprise Digital Assistant - 802.11b WLAN, CSE600 Linear CMOS Imager with 1D support, 4 key PIM + Navigation keys, 1560 mAh Lithium-ion rechargeable Battery, Windows Mobile 2003 and 64/64. Includes soft case (Part# 21-67294-01R). Order cradle, cables & power supply separately. See accessories. Formerly listed as (Part# MC50-SP10)
See Replacement Call for Details
MC5040-PQ0DBQEA8WR This part is replaced by MC5590-PY0DKQQA7WR.
MC 50, Wireless Enterprise Digital Assistant - 802.11b WLAN, Windows Mobile 2003, 64/64, QWERTY Key1.1 megapixel Color Camera with 3600 mAh battery Includes soft case (Part# 21-67294-01R). Order cradle, cables & power supply separately. See accessories. Formerly listed as (Part# MC50-CQ20)
See Replacement Call for Details
MC5040-PQ0DBQEA7WR This part is replaced by MC5590-PY0DKQQA7WR.
MC 50, Wireless Enterprise Digital Assistant - 802.11b WLAN, Windows Mobile 2003, 64/64, QWERTY Keypad, CCD Camera. Includes soft case (Part# 21-67294-01R). Order cradle, cables & power supply separately. See accessories.
See Replacement Call for Details
MC5040-PQ0DBNEA8WR This part is replaced by MC5590-PY0DKNQA7WR.
MC 50, Wireless Enterprise Digital Assistant - 802.11b WLAN, Windows Mobile 2003, 64/64, PIM Key, no barcode scanner, 1.1 megapixel Color Camera with 3600 mAh battery Includes soft case (Part# 21-67294-01R). Order cradle, cables & power supply separately. See accessories. Formerly listed as (Part# MC50-CP20)
See Replacement Call for Details
MC5040-PQ0DBNEA7WR This part is replaced by MC5590-PY0DKNQA7WR.
MC 50, Wireless Enterprise Digital Assistant: PDA, WLAN, CCD Digital Camera, color QVGA, 64/64, Nav/PIM (4 keys), Pocket PC 2003, and 1x 1560 mAh Battery)
See Replacement Call for Details
MC5040-PK0DBQEE1GR MC 50, WLAN Pocket PC 2003, 64MB, QWERTY Key, NO BA, US Govt only Check Availability Call for Details
MC5040-PK0DBQEA8WR-KIT This part is replaced by MC5590-PK0DKQQA9WR-KIT.
MC 50 Complete Kit, Includes everything you need: MC50 terminal (Wireless Enterprise Digital Assistant - SE 4400 Pico Imager engine with 1D/2D and RSS support, QWERTY Keyboard, 802.11b wireless, 3600 mAh Lithium-ion rechargeable Battery, Windows Mobile 2003 and 64/64. Includes soft case (Part# 21-67294-01R). Order cradle, cables & power supply separately. See accessories. Formerly listed as (Part# MC50-IQ20), cradle, USB cable, power supply, and line cord.
See Replacement Call for Details
MC5040-PK0DBQEA8WR This part is replaced by MC5590-PK0DKQQA9WR.
MC 50, Wireless Enterprise Digital Assistant - SE 4400 Pico Imager engine with 1D/2D and RSS support, QWERTY Keyboard, 802.11b wireless, 3600 mAh Lithium-ion rechargeable Battery, Windows Mobile 2003 and 64/64. Includes soft case (Part# 21-67294-01R). Order cradle, cables & power supply separately. See accessories. Formerly listed as (Part# MC50-IQ20)
See Replacement Call for Details
MC5040-PK0DBQEA7WR-KIT This part is replaced by MC5590-PK0DKQQA9WR-KIT.
MC 50 Complete Kit, Includes everything you need: MC50 terminal (Wireless Enterprise Digital Assistant - SE 4400 Pico Imager engine with 1D/2D and RSS support, QWERTY Keyboard, 802.11b wireless, 1560 mAh Lithium-ion rechargeable Battery, Windows Mobile 2003 and 64/64. Includes soft case Part# 21-67294-01R. Order cradle, cables & power supply separately. See accessories. Formerly listed as (Part# MC50-IQ10), cradle, USB cable, power supply, and line cord.
See Replacement Call for Details
MC5040-PK0DBQEA7WR This part is replaced by MC5590-PK0DKQQA7WR.
MC 50, Wireless Enterprise Digital Assistant - SE 4400 Pico Imager engine with 1D/2D and RSS support, QWERTY Keyboard, 802.11b wireless, 1560 mAh Lithium-ion rechargeable Battery, Windows Mobile 2003 and 64/64. Includes soft case (Part# 21-67294-01R). Order cradle, cables & power supply separately. See accessories. Formerly listed as (Part# MC50-IQ10)
See Replacement Call for Details
MC5040-PK0DBNEA8WR This part is replaced by MC5590-PK0DKNQA7WR.
MC 50, Wireless Enterprise Digital Assistant - SE 4400 Pico Imager engine with 1D/2D and RSS support, 4 key PIM + Navigation keys, 802.11b wireless, 3600 mAh Lithium-ion rechargeable Battery, Windows Mobile 2003 and 64/64. Includes soft case (Part# 21-67294-01R). Order cradle, cables & power supply separately. See accessories. Formerly listed as (Part# MC50-IP20)
See Replacement Call for Details
MC5040-PK0DBNEA82R MC 50, Wireless Enterprise Digital Assistant Check Availability Call for Details
MC5040-PK0DBNEA7WR This part is replaced by MC5590-PK0DKNQA7WR.
MC 50, Wireless Enterprise Digital Assistant - 802.11b WLAN, Windows Mobile 2003, 64/64, PICO Imager. Includes soft case (Part# 21-67294-01R). Order cradle, cables & power supply separately. See accessories.
See Replacement Call for Details
MC5040-PK0DBNEA72R MC 50, Wireless Enterprise Digital Assistant (PDA OEM, WLAN, Pico Imager, 64MB/64MB, PIM, Windows Pocket PC 2003 and 1x) Check Availability Call for Details
MC50-SQ20 This part is replaced by MC5040-PS0DBQEA8WR.
MC 50, Wireless Enterprise Digital Assistant - 802.11b WLAN, CSE600 Linear CMOS Imager with 1D support, QWERTY Keyboard, 3600 mAh Lithium-ion rechargeable Battery, Windows Mobile 2003 and 64/64. Order cradle, cables & power supply separately. See accessories.
See Replacement Call for Details
MC50-SP20 This part is replaced by MC5040-PS0DBNEA8WR.
MC 50, PDA: WLAN Positron 64MB/64MB PIM Windows Pocket PC 2003 2X Battery -SP20
See Replacement Call for Details
MC50-IP10 This part is replaced by MC5040-PK0DBNEA7WR.
MC 50, Wireless Enterprise Digital Assistant - SE 4400 Pico Imager engine with 1D/2D and RSS support, 4 key PIM + Navigation keys, 802.11b wireless, 1560 mAh Lithium-ion rechargeable Battery, Windows Mobile 2003 and 64/64. Order cradle, cables & power supply separately. See accessories.
See Replacement Call for Details
MC50-CQ10 This part is replaced by MC5040-PQ0DBQEA7WR.
MC 50, Wireless Enterprise Digital Assistant - 802.11b WLAN, Windows Mobile 2003, 64/64, QWERTY Key, no barcode scanner, 1.1 megapixel Color Camera with 1560 mAh battery Order cradle, cables & power supply separately. See accessories.
See Replacement Call for Details
MC50-CP10 This part is replaced by MC5040-PQ0DBNEA7WR.
MC 50, Wireless Enterprise Digital Assistant (WLAN, PPC 2003, 64/64, PIM Key, Color Camera with 1560 mAh Battery)
See Replacement Call for Details

Symbol MC 50 Details

Redefine Mobility for Enterprise-Class Applications

The MC50 from Symbol Technologies is first in a class of mobile computers that combines an enhanced PDA-style form factor with optimal performance to operate enterprise-level applications. This small, lightweight mobile computer features advanced data capture options, flexible voice and data communication and easy wireless local area network (WLAN) synchronization.

Increase Productivity and Gain Access to Real-time Information

With data capture, voice telephony, smart battery, device level management, wireless and security options, on-the-go professionals are empowered to make rapid, informed decisions. This convenient mobile computer delivers enterprise-class functionality, including support for e-mail, phone, scheduling/calendar, signature capture, CRM, sales force automation and other enterprise applications. With the MC50 in hand, retail store managers, merchandisers and salespeople have the necessary tool to create and maintain a competitive advantage.

Deploy and Manage Mobility Systems More Effectively

The MC50 enables superior manageability and rapid integration into new or existing IT infrastructures. Its Microsoft® Windows MobileTM software platform offers compatibility with, Oracle®, Siebel®, SAP® and IBM® customer relationship management (CRM) software for easy, fast rollouts into any environment. Adding mobility management software allows you to quickly deploy and manage thousands of MC50 devices with instant visibility and control over all the mobile computers, wireless networks and applications from an intuitive, Web-based interface.

Enhanced Durability for Frequent, Extended Use

The MC50 is designed to be more durable than a consumer-grade PDA. Extra reliability is built into every aspect of the MC50 – from battery contacts to keypads to acoustics – to ensure it exceeds the performance demands of daily, high-volume usage. Managers, supervisors and sales professionals can feel more confident using the MC50 from anywhere at anytime, whether it is on the road, on the sales floor or at a customer site.

Symbol Enterprise Mobility Services

Symbol Enterprise Mobility Services ensure that your mobility solution works seamlessly and at maximum efficiency – from defining your business requirements through ongoing service and support.

Features

Benefits

Enterprise-level foundation

Combines mobile computing, data capture and wireless networking for a totally integrated solution

Durable design

Enhances product lifecycle with less downtime than consumer-grade devices

Deployment-ready systems

Designed to run – out of box – fast and easy

High-speed CPU performance

Operates enterprise-level applications

Diverse data capture options

Captures information accurately and quickly every time

Wireless networking based on the standard IEEE 802.11b (WLAN)

Enables real-time communications and decision-making with secure mobile transactions

Ready voice over IP (VoIP)

Designed to perform seamless voice communications via push-to-talk, peer-to-peer, PBX connectivity, 1-to-1 or 1-to-many

Mobility Services Platform (MSP)

Reduces TCO with accelerated rollout and ongoing visibility into mobile devices, networks and applications

Smart battery

Ensures maximum uptime

User-accessible SDIO

Provides technology flexibility while slot with cover improving acoustics

User-friendly keypad options

Offers flexible functionality and keypad design for efficient, productive data entry

MC50 Specification Highlights

Physical Characteristics

Dimensions:



NAV

1D: 4.77 in. H x 2.95 in. W x .94 in. L
(12.1 cm H x 7.5 cm W x 2.4 cm L)
2D Imager: 4.77 in. H x 2.95 in. W x 1.13 in. L
(12.1 cm H x 7.5 cm W x 2.9 cm L)
CCD Camera: 4.77 in. H x 2.95 in. W x 1.11 in. L
(12.1 cm H x 7.5 cm W x 2.8 cm L)

Qwerty:

1D: 5.35 in. H x 2.95 in. W x .94 in. L
(13.6 cm H x 7.5 cm W x 2.4 cm L)
2D Imager: 5.35 in. H x 2.95 in. W x 1.13 in. L
(13.6 cm H x 7.5 cm W x 2.9 cm L)
CCD Camera: 5.35 in. H x 2.95 in. W x 1.11 in. L
(13.6 cm H x 7.5 cm W x 2.8 cm L)

Weight (including standard battery):

NAV 1D: 6.42 oz/ 182 g
QWERTY 1D: 6.77 oz/ 192 g

Display:

Transflective color TFT-LCD, 65K colors, 240 (W) x 320 (L) (QVGA size)

Touch Panel:

Glass analog resistive touch

Backlight:

LED backlight

Main Battery:

Rechargeable Lithium Ion 3.7V, 1560 mAh

Extended Capacity Battery:

Optional 3.7V, 3600 mAh

Backup Battery:

Ni-MH battery (rechargeable) 15mAh 1.2V, 1 cell

Expansion slot:

User accessible SDIO slot (with secure cover)

Notification:

Vibrator and LED

Keypad Options:

NAV: 4 application keys and 5-way navigation key
QWERTY: 37-key

Audio:

Speaker, receiver, microphone, headset jack
Software support for full duplex record and playback (stereo)

Performance Characteristics

CPU:

Intel® XScale™ 520 Mhz processor

Operating System:

Microsoft® WindowsTM Mobile 2003 Second Edition

Memory:

64MB RAM/ 64MB ROM

Interface/ Communications:

RS-232, USB 1.1

User Environment

Operating Temperature:

0° to 50° C (32° to 155° F)

Storage Temperature:

-25° to 60° C (-13° to 140° F)

Humidity:

95% non-condensing

Drop Specification:

3' drop to tile over concrete, 1 drop per side at 21° C
( 70° F)

Electrostatic Discharge (ESD):

+/-8kV air discharge, +/-8kV direct discharge

Wireless Data and Voice Communications

Wireless Local Area (WLAN):

IEEE® 802.11b

Data Rate:

1/2/5.5/11 Mbps

Frequency Range:

Country dependent; typically 2.4 to 2.5 GHz

Output Power:

14.5dBm (typical)

Security:

WEP, TKIP, LEAP, PEAP, EAP-TLS, WPA (pre-shared key)

Spreading Technique:

Direct sequence

Antenna:

Internal

Voice Communication:

Integrated Voice-over-IP ready (P2P, PBX, PTT)
Wi-Fi™-certified, IEEE 802.11b direct sequence wireless LAN

Data Capture Specifications

Options:

2D imager, linear CMOS or CCD camera

2D Imager Engine (SE 4400) Specifications:

Field of View:

Horizontal: 32.2°, Vertical: 24.5°

Optical Resolution (gray scale):

640 (H) x 480 (V) pixels

Roll:

360°

Pitch Angle:

+/- 60° from normal

Skew Tolerance:

+/- 50° from normal

Focal Distance from Front of Engine:

Near: 5 inches, Far: 9 inches

Aiming Element (VLD):

650 nm +/- 5 nm

Illumination Element (LED):

635 nm +/- 20 nm

Minimum Print Contrast:

Minimum 25% absolute dark/light reflectance measured at 650 nm

Symbologies:

1D Symbology: UPC/EAN, Code 128, UCC.EAN128, RSS, Code 39, Code 93, I 2 of 5, Discrete 2 of 5, Codabar, MSI
2D Symbology: MaxiCode, PDF417, DataMatrix, QRCode
Postal Codes: U.S. Postnet, U.S Planet, UK Postal, Australian Postal, Japan Postal

Image File Formats:

BMP, TIFF, JPEG

Linear CMOS (CSE600):

View Angle:

40°+/- 2°

Pitch Angle:

+/- 50° from normal

Roll:

+/- 20° from vertical

Skew Tolerance:

+/- 30° from normal

Minimum Print Contrast:

35% MRD measured at 675 nm

Supported Symbologies:

UPC /EAN, Code 39, I 2 of 5, Discrete 2 of 5, Code 128, UCC.EAN128, Code 93, Codabar

CCD Camera:

Image Sensor:1/4 in. type 1.1 mega-pixel CCD

Maximum Frame Rate:

7.5 fps

Minimum Subject Illumination:

2 lux (at 5 fps)

Number of Output Pixels:

1144 (H) x 880 (V)

Image Output Interface:

UYVY 8-bit

Lens F-Number:

f2.8

Scan Triggers:

Left and right trigger buttons

Peripherals and AccessoriesCradles:

Single-slot USB with spare battery (1X and 2X) charging, four-slot Ethernet or USB

Communication and Charging Cables:

USB v1.1, vehicle charging cable, power/charging cable

Battery Chargers:

4-slot battery charger (1X and 2X), universal battery charger (requires adapters for 1X and 2X capacity batteries)

Vertical-specific attachments:

Snap-on magnetic stripe reader, universal cable cup adapter attachable cables

Regulatory

Electrical Safety:

UL60950 (UL marking), CSA C22.2 No. 60950 (c-UL marking ), EN60950/IEC 950

EMI/RFI:

EU/International
EN 301 489-1, -17
EN61000-4-2: 1995, ESD ±8kV air/ ±4kV contact
EN61000-4-3: 1997, Radiated Immunity 3V/m
EN61000-4-4: 1995, EFT ± 0.5kV
EN61000-4-5: 1995, Surge ± 0.5kV
EN61000-4-6: 1

Laser Safety:

IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1

Warranty

The Symbol MC50 is warranted against defects in workmanship and materials for a period of 12 months from date of shipment, provided that the product remains unmodified and is operated under normal and proper conditions.

The Symbol MC 50 is also known as the Symbol Technologies MC 50 .
