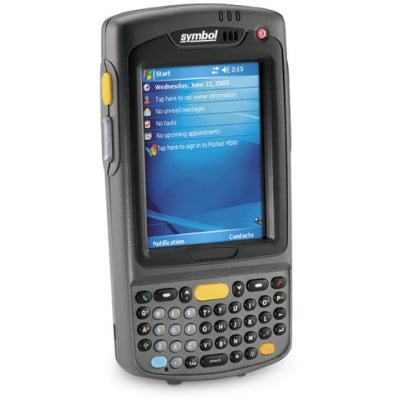

The flagship MC70 Enterprise Digital Assistant (EDA) is a rugged handheld mobile device that incorporates a mobile phone, PDA, computer, scanner and imager in a single unit designed for the rigors of all-day, everyday usage. This compact, lightweight device combines multi-mode wireless networking, voice and data communications, and advanced data capture in an enterprise productivity tool that can support nearly any application in any environment. Superior voice functionality includes outstanding acoustic performance and voice quality, handset, headset and speakerphone modes, as well as push to talk capability (if supported by your WLAN application or WWAN carrier). Your mobile workers will have everything they need to increase productivity and efficiency inside and outside your four walls - from field workers reading meters and repairing equipment to drivers delivering packages, hospital workers checking lab results and medication orders, and more.
Rugged construction delivers a low TCOThe industry leading innovative mechanical design and technology platform offer superior construction and expandability, delivering outstanding investment protection and a low TCO. Engineered to withstand rigorous use in extreme environments and working conditions, the MC70, including the internal WLAN and external WWAN antennas, can endure multiple drops, a wide range of temperatures, moisture, dust and more and still deliver reliable performance.
Built-in WWAN/WLAN/WPANThe MC70 offers robust and cost-effective anytime, anywhere voice and data connectivity. For workers outside of your facility, support for eGPRS (EDGE) networks delivers global coverage, fast wireless data speeds that enable rich applications, and enterprise level security. Inside your facility, the MC70 connects to your wireless LAN for voice and data communications, providing better control over wireless WAN usage - and costs. And wireless PAN functionality, via Bluetooth, further increases employee productivity through wireless printing and more.
Reduce the cost and complexity of mobilityThe versatile, effective MC70 is a smart investment, providing a cell phone, PDA and more - all in a single rugged device. Capital expenditures and IT support costs are significantly reduced. Superior manageability enables you to easily and remotely provision, track and support all your MC70 devices from one central location through Symbol�s Mobility Services Platform. A full suite of accessories provides maximum application flexibility. And comprehensive maintenance and support services - required for even the most rugged products - ensure maximum uptime and value for your investment.
Features | Benefits |
Symbol�s industry-leading double impact testing (drop and tumble), IP54 sealing, integrated antennas |
Lightweight yet rugged; built for year-round use in nearly any environment |
Intel�s latest processor, designed for mobility: XScale PXA270 @ 624 Mhz |
Desktop-like multimedia performance with lower power requirements |
Microsoft�s latest operating system: Windows Mobile 5.0 Premium or Phone Edition | Integrated multimedia, persistent memory and FIPS-140-2 security certification |
WWAN: eGPRS/GSM Compatibility | Voice and high-speed wireless data |
WLAN: 802.11a/b/g tri-mode radio; comprehensive VoIP support | Cost-effective voice and data connectivity in the office |
WPAN: Bluetooth v1.2, Class II | Wireless modem, printing synchronization, and more |
High quality speakerphone, microphone and transducer | Superior voice quality and performance |
On-board advanced data capture: 1D and 2D bar code scanning from 4 in. to 40 in.; image capture | Automate and error proof data collection and increase productivity |
3.5 in. QVGA color screen | Easy to view in any lighting |
Multiple keyboard options: QWERTY or numeric | Flexibility to meet diverse user and application needs |
Support for standard and extended cards | Provides additional memory and expandable functionality |
Multiple battery options: standard and extended | Ample power for full shifts in nearly any environment |
Physical Characteristics | |
---|---|
Dimensions: | 6 in. L x 3 in. W x 1.5 in H / 15.3 cm L x 7.6 cm W x 3.7 cm H (all configurations) |
Weight (inc. standard battery): | LAN/PAN configurations - 11.2 oz./314 g WAN/LAN/PAN configurations - 12 oz./336 g |
Display: | Transflective color 3.5� QVGA with backlight, TFT-LCD, 65K colors, 240 W x 320 L (QVGA size) |
Touch Panel: | Glass analog resistive touch |
Backlight: | LED backlight |
Main Battery: | Lithium Ion 3.7V, 1900 mAh Smart Battery |
Extended Cap. Battery: | Optional 3.7V, 3800 mAh Smart Battery |
Backup Battery: | Ni-MH battery (rechargeable) 20mAh 1.2V, 2 cells (not user-accessible) |
Expansion slot: | User accessible SDIO slot (with secure cover); accommodates extended cards (with cover removed); NOTE: terminals with extended cards cannot be accommodated in the charging cradle and will not be sealed |
Network Connections: | Ethernet (via cradle); high-speed USB, host or client |
Notification: | Vibrator and LED |
Keypad Options: | 26 Numeric key; 44 QWERTY key |
Audio: | Speaker, receiver, microphone, headset jack, software support for full duplex record and playback (stereo) |
Performance Characteristics | |
CPU: | Intel XScale 624 Mhz processor |
Operating System: | Microsoft Windows Mobile 5.0 Premium, Microsoft Windows Mobile 5.0 Premium Phone Edition |
Memory: | 64MB RAM/128MB ROM |
Interface/ Communications: | RS-232, USB 1.1 |
User Environment | |
Operating Temperature: | 14°F to 155° F/-10°C to 68° C |
Storage Temperature: | -40° F to 140° F/-40° C to 60° C |
Humidity: | 95% non-condensing |
Drop Specification: | 4 ft. drop to concrete, 6 drops per 6 sides over operating temperature range; 5 ft. drop to concrete, 2 drops per 6 sides at ambient temperature 73° F/23° C |
Tumble Specification: | 1,000 1.6 ft./.5 m tumbles (2,000 drops) |
Electrostatic Discharge (ESD): | +/-15kV air discharge, +/-8kV direct discharge |
Wireless WAN Data and Voice Communications | |
Wireless Wide Area (WWAN) radio: | eGPRS/GSM (850, 900, 1800 and 1900 MHz) |
Wireless LAN Data and Voice Communications | |
Wireless Local Area (WLAN) radio: | Tri-mode IEEE 802.11a/b/g |
Data Rates Supported: | 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48 and 54 Mbps |
Operating Channels: | Chan 8-169 (5040 � 5845 MHz) (4920 � 4980 MHz) Japan only; Chan 1-13 (2412-2472 MHz); Chan 14 (2484 MHz) Japan only; Actual operating frequencies depend on regulatory rules and certification agency |
Security: | WPA2, WEP (40 or 128 bit), TKIP, TLS, TTLS (MS-CHAP), TTLS (MS-CHAP v2), TTLS (CHAP), TTLS-MD5, TTLS-PAP, PEAP-TLS, PEAP (MS-CHAP v2), AES, LEAP |
Spreading Technique: | Direct Sequence Spread Spectrum (DSSS) and Orthogonal Frequency Division Multiplexing (OFDM) |
Antenna: | Internal for LAN, External for WAN |
Voice Communication: | Integrated Voice-over-IP ready (P2P, PBX, PTT), Wi-Fi-certified, IEEE 802.11a/b/g direct sequence wireless LAN |
Wireless PAN Data and Voice Communications | |
Bluetooth: | Class II, v 1.2 |
Data Capture Specifications | |
Options: | 1D linear, 2D imager |
Linear 1D Scanner (SE800HP) | |
Optical Resolution: | 0.005 in. minimum element width |
Roll: | +/- 30° from vertical |
Pitch Angle: | +/- 65° from normal |
Skew Tolerance: | +/- 60° from normal |
Ambient Light: | Sunlight: 8,000 ft. candles (86,112Lux) |
Artificial Light: | 450 ft. candles (4,844Lux) |
Shock: | 2,000 +/- 5% G |
Scan Rate: | 50 (+/-6) scans/sec (bidirectional) |
Scan Angle: | 46.5° (typical) |
Laser Power: | 1.0 mW nominal |
2D Imager Engine (SE 4400) Specifications: | |
Optical Resolution (gray scale): | 640 H x 480 V pixels (gray scale) |
Roll: | 360° |
Pitch Angle: | +/- 60° from normal |
Skew Tolerance: | +/- 50° from normal |
Ambient Light: | Total darkness to 9,000 ft. candles (96,900Lux) |
Shock: | 2,000 +/- 5% G |
Focal Distance from Front of Engine: | Near: 5 inches, Far: 9 inches |
Aiming Element (VLD): | 650 nm +/- 5 nm |
Illumination Element (LED): | 635 nm +/- 20 nm |
Field of View: | Horizontal - 32.2°, Vertical - 24.5° |
Peripherals and Accessories: | |
Cradles: | Single-slot serial/USB with spare battery charging for standard and extended batteries, four-slot Ethernet cradle, vehicle cradle |
Communication and Charging Cables: | Serial and USB v1.1 charging cables, printer cables, vehicle charging cable, power/charging cable |
Battery Chargers: | 4-slot battery charger (1X and 2X), universal battery charger (requires adapters for 1X and 2X capacity batteries) |
Vertical-specific attachments: | Snap-on magnetic stripe reader, snap-on trigger handle, rigid case |
Regulatory | |
Electrical Safety: | to UL / cUL 60950-1, IEC / EN60950-1 |
WLAN and Bluetooth: | USA: FCC Part 15.247, 15.407 Canada: RSS-210 EU: EN 300 328-1, EN 301 893 Japan: ARIB STD-T33, ARIB STD-T66, ARIB STD-T71 Australia: AS/NZS 4268 |
Quad Band eGPRS / GSM (850, 900, 1800 and 900 bands): | Global: 3GPP TS 51.010, GCF approved module USA: FCC Part 22 , Part 24 Canada: RSS-132, RSS-133 EU: EN301 511 Australia: AS/ACIF S 018, AS TS 001 |
RF Exposure: | USA: FCC Part 2, FCC OET Bulletin 65 Supplement C Canada: RSS-102 EU: EN 50360 Australia: AS/NZ 2772.1, ARPANSA |
EMI/RFI: | North America: FCC Part 15 Canada: ICES 003 Class B EU: EN55022 Class B, EN 301 489-1, EN 301 489-7, EN 310 489-17, EN 60601-1-2 Australia: AS/NZS CISPRA 22 |
Laser Safety: | IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1 |
Warranty | |
The Symbol MC70 is warranted against defects in workmanship and materials for a period of 12 months from date of shipment, provided that the product remains unmodified and is operated under normal and proper conditions. |
