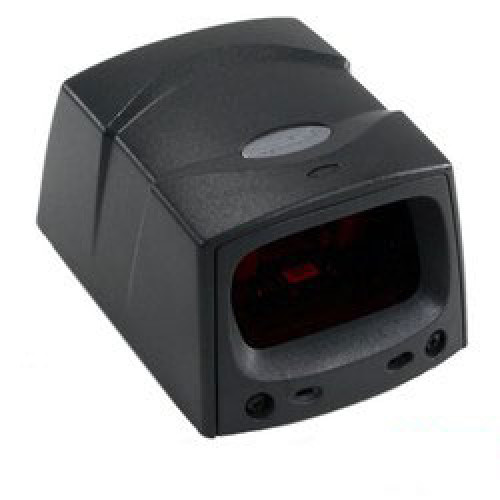

Symbol MiniScan MS1207 Fixed Barcode Scanner

Symbol MiniScan MS1207 Fixed Barcode Scanner

The MiniScan MS1207 from Symbol is a compact, durable, industrial fixed-mount scanner. The MiniScan MS1207 is an excellent choice for OEM devices requiring accurate, automated data collection, even in the most demanding environments. The MiniScan MS1207 scanner features immunity to ambient light and durable design which combine to deliver premium scanning performance in the most demanding environments. MiniScan MS1207 scanners are easy to program and configure, enabling you to shorten your development time and bring your product to market faster - even if you don't have in-house technical resources for scanner integration. With its rugged durable housing, exit window, integrated beeper and multiple interface options, MiniScan MS1207 scanners enable your project teams to quickly and confidently integrate high-performance 1D barcode data capture into many applications.
Discontinued - Need Assistance
See all options
  • Fuzzy logic decode capability for all 1D barcodes
  • Plug-and-play installation
  • Decode range: near contact to over 60"
  • 60 degrees scan angle
  • Integrated beeper with external beeper support
  • Sealed to IP54 standards
  • Supports 123Scan utility
  • Multiple mounting options

Performance Characteristics

Scan pattern
Single line

Minimum resolution
MS12XX FZY: Minimum 25% absolutedark/light reflectance measured at 650 nm; MS 1207 WA: Minimum 20% absolutedark/light reflectance measured at 670 nm

Decode capability
1-D, See data sheet for full list of supported symbologies

Interfaces supported
RS-232, Synapse, USB, TTL, Interfaces vary per model; see datasheet for details

Depth of field
MS120xFZ: 100% UPC - 80% MRD: 2.2 - 25.75 (in) / 5.59 - 65.41 (cm); MS120xWA: 100% UPC - 80% MRD: 0.6 - 11 (in) / 1.52 - 27.94 (cm)

Technology
Laser

Physical Characteristics

Dimensions
1.6 H x 2.28 x 2.94 in. (40.64 x 57.91 x 74.76 mm) H x W x D

Weight
4.45 oz. (126 g)

Voltage and current2
MS12XX FZY: 160 mA; MS1207 WA: 110 mA

Regulatory Specifications

Electrical Safety
C22.2 No. 60950-1, EN 60950-1, IEC 60950-1

EMI/RFI
FCC Part 15 Class B, ICES 003 Class B

Environmental
RoHS Directive 2002/95/EEC

User Environment

Ambient lighting tolerance
Tolerant to typical artificial indoor and natural outdoor (direct sunlight) lighting conditions. Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED : 450 Ft Candles (4, 844 Lux) Sunlight: 8000 Ft Candles (86, 111 Lux)

Operating temperature
MS12XX FZY: -4° to 122° F (-20° to 50° C); MS1207 WA: 32° to 104° F (0 - 40° C)

Storage temperature
MS12XX FZY: -40° to 158° F (-40° to 70° C); MS1207 WA: -40° to 140 °F (-40° to 60° C)

Drop specifications
Unit functions normally after multiple 30 in. (76 cm) drops to concrete

Environmental sealing
IP54

Extended Details
Refine Your Options
Shop By
Shopping Options
Scanner Type
  1. Laser (2)
  1. Symbol MiniScan MS1207 Fixed Barcode Scanner
    Part #: MS-1207WA-I000R | SKU: SYM61907

    MS 1207 MiniScan (Housed Scan Engine, CL 2, SL-WA, 60D and USB/Synapse). Requires cable, not included. See accessories.
  2. Symbol MiniScan MS1207 Fixed Barcode Scanner
    Part #: MS-1207FZY-I000R | SKU: SYM29507

    MS 1207 MiniScan (Fixed Mount Scanner: CL 2, SL, FZY and USB-Synapse)
  3. Symbol MiniScan MS1207 Fixed Barcode Scanner
    Part #: MS-1207FZY-I000 | SKU: SYM17248

    MiniScan (Housed Scan Engine, CL 2, SL, FZY, USB/Synapse)
  4. Symbol MiniScan MS1207 Fixed Barcode Scanner
    Part #: MS-1207WA-I000 | SKU: SYM17249

    Zebra MiniScan MS1207 Bar Code Reader - Cable Connectivity - 36 scan/s - 1D - Linear - Serial

4 Item(s)

Recommended Accessories for Model: Symbol MiniScan MS1207 Fixed Barcode Scanner

  • Zebra DS457 Accessory
    Part #: 20-60136-02R | SKU: ZEB61845

    Twilight black gooseneck intellistand for MiniScan series. Includes screws for mounting scanner to the stand
    MSRP: $39.15 Price: $32.44
    In Stock
  • Zebra DS457 Accessory
    Part #: KT-65578-01R | SKU: ZEB49131

    Miniscan Adjustable Mounting Bracket for easier mounting of DS457 in a kiosk or other confined space locations
    MSRP: $68.10 Price: $50.66
  • Symbol Mini Scan Series Accessory
    Part #: 25-13227-02 | SKU: SYM17123

    Cable Assembly (Host, F, TXD-2)
  • Symbol Mini Scan Series Accessory
    Part #: 25-13228-02 | SKU: SYM17124

    Cable Assembly (TXD, P2, with Trigger and Beeper)
  • Symbol Mini Scan Series Accessory
    Part #: 25-58925-01 | SKU: SYM17141

    Cable Assembly (USB, R-A) for MS1207 Scanners with Trigger and Beep)
