Optimal Ergonomic Design for Enhanced Industrial Data
Capture

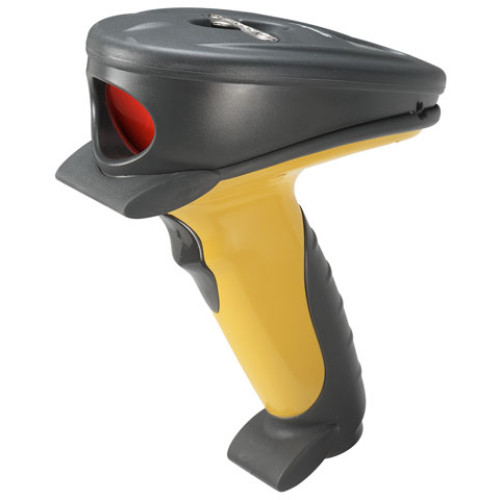

The P300 STD undecoded industrial handheld scanner from Symbol
Technologies reads conventional 1-D bar codes in rugged industrial
environments. Utilizing Symbol's high-performance SE 1200HP scan
engine and superior Phaser ergonomics, the P300 STD offers the
highest level of scanning efficiency and user comfort
available.
Designed for Extreme Environments (XE)
The P300 STD meets the most stringent industrial standards,
earning the Symbol XE class label. It is sealed to the IP54
specification against windblown dust and rain, and withstands
multiple 6 ft./1.8 m drops to concrete over the entire temperature
range of -22° to 122° F/-30° to 50° C.
Its XE class ruggedness and high-throughput scanning ability
make the P300 STD an ideal choice for a wide range of 1-D
applications in industrial environments such as distribution
centers, manufacturing floors and warehouses.
Innovative Design Features
As innovative as it is rugged, the P300 STD delivers the
sophisticated ergonomic and operational features industrial
applications demand. The scanner's exit window is scratch-resistant
and recessed to prevent damage from direct contact. A twist-to-lock
cable seals the scanner and provides superior strain relief. For
those applications requiring quick access and out-of-the-way
storage, the P300 STD comes with a built-in metal hook for
attachment to a pulley. And the large, LED-enhancing window makes
the "good decode" feedback impossible to miss. The P300 STD also
utilizes the award-winning Phaser "handle-forward" design making
the scanner extremely comfortable to hold and reduces fatigue when
scanning throughout a full shift in scan-intensive
applications.
High-Productivity Scanning
Building on Symbol's experience and leadership in the industrial
handheld scanner market, the P300 STD offers numerous hardware and
software improvements that deliver better performance and more
durability than ever. The P300 STD uses the SE 1200HP scan engine
with high-visibility 650 nm laser and Adaptive Logic Technology.
Using multiple digitizer thresholds, Adaptive Logic extends the
working range on both high-density and poor-quality bar codes. The
high-visibility 650 nm laser makes it faster and easier to aim the
scanner and read bar codes in sunlight and bright ambient
light.
To find out how your company can benefit from Symbol's scanners
contact us at any of our offices, or visit us at www.symbol.com/bar
code.
P300 STD Features
|
P300 STD Benefits
|
|
XE-class durability
|
Withstands multiple 6-ft./1.8 m drops to concrete
|
Sealed to IP54 standard
|
Protected from windblown dust and rain
|
650 nm laser diode
|
Easy to see laser beam
|
Large, bright LED window
|
Excellent user feedback
|
|
P300 STD Specification Highlights
P300 STD Physical Characteristics:
|
|
Dimensions:
|
6.8 in. H x 5.9 in. L x 2.9 in. D/173 mm H x 150 mm L x 74 mm
D
|
Weight:
|
11 oz./312 gm (without cable)
|
Power Requirements:
|
Laser On100 mA
|
Power Supply:
|
Input voltage from 4.75 V to 14 V
|
|
P300 STD Performance Characteristics:
|
|
InterfaceType:
|
Standard undecoded interface
|
Scan Element Type:
|
Retro-collective
|
Light Source:
|
650 nm laser diode/1.2 mW max
|
Scan Rate:
|
35 scans per second
|
Minimum Reflectance Difference:
|
25% measured at 650 nm
|
Program Loading:
|
Parameters set by bar code menus
|
Decode Capabilities (decoder required):
|
UPC-A, UPC-E, EAN 8, EAN 13, Code 39, Tri-Optic Code 39, Code
93, Discrete 2 of 5, Bookland EAN, UPC Coupon Code, Code 39 Full
ASCII, Code 128, Interleaved 2 of 5, Codabar, UCC.EAN 128 with full
autodiscrimination between all symbologies, MSI Plessey, UPC E1
|
|
P300 STD User Environment
|
|
Operating Temperature:
|
-22° to 122°F/-30° to 50°C
|
Storage Temperature:
|
-40° to 158°F/-40° to 70°C
|
Humidity:
|
5% to 95% (non-condensing)
|
Shock:
|
Withstands multiple 6-ft./1.8 m drops to concrete
|
Ambient Light:
|
Sunlight: 10,000 ft.-candles, Incandescent, Fluorescent, Sodium
Vapor, and Mercury Light: 450 ft.-candles, 4,845 lux. Immune to
direct exposure from normal office and factory level lighting
|
Environmental Sealing:
|
IP54 (Industry standard for dust and water sealing)
|
Agency Approvals:
|
CDRH Class II, IEC 825 Class II, FCC Class A, UL, CSA, VDE
|
|
Electrical Safety:
|
Certified to UL1950, CSA C22.2 No. 950, EN60950/IEC950
|
Laser Safety:
|
CDRH Class II, IEC Class 2
|
EMI/RFI:
|
FCC Part 15 Class B, IECES-003 Class B, European Union EMC
Directive
|
|
