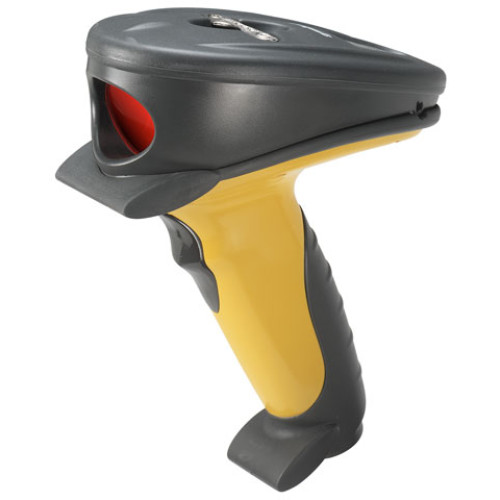

Photo of Symbol P304PRO
Symbol logo

Symbol P304PRO Scanner

This product is discontinued and replaced by the
Symbol DS3408 Symbol
DS3408
The P304PRO from Symbol Technologies is the industrial handheld laser scanner for unsurpassed high-volume 2D bar code scanning. The P304PRO offers more than just an award-winning ergonomic shape, it provides time-saving features like laser spot mode and smart raster to deliver unrivaled sub-second decoding on both 2D and 1D symbols. All units ship with one product reference guide.
P304PRO Options
Part # DescriptionAvailabilityPriceOrder
P304PRO-I100 This part is replaced by DS3408-SF20005.
P304PRO, Scanner. Order cables & power supply separately. See accessories.
See Replacement Call for Details
K304PRO-RS-02 P304PRO, RS-232 kit: Scanner, RS-232 cable, power supply, & product reference guide. Check Availability Call for Details
K304PRO-KY-02 P304PRO, Keyboard wedge kit: Scanner, PS/2 Y-cable & product reference guide. Check Availability Call for Details

Symbol P304PRO Details

High-Performance Industrial Scanner

The P304PRO from Symbol Technologies is the industrial handheld laser scanner for unsurpassed high-volume 2-D bar code scanning. The P304PRO offers more than just an award-winning ergonomic shape, it provides time-saving features like laser spot mode and smart raster to deliver unrivaled sub-second decoding on both 2-D and 1-D symbols.

Designed for Extreme Environments (XE)

The P304PRO meets the most stringent industrial standards, earning the Symbol XE class label. It is sealed to the IP54 specification against windblown dust and rain, and withstands multiple 6 ft./1.8 m drops to concrete over the entire temperature range of -22° to 122° F/-30° to 50° C.

Its XE class ruggedness and high-throughput scanning ability make the P304PRO an ideal choice for a wide range of 2-D and 1-D applications in industrial environments such as distribution centers, manufacturing floors and warehouses.

Innovative Design Features

As innovative as it is rugged, the P304PRO delivers the sophisticated ergonomic and operational features industrial applications demand. The scanner's exit window is scratch-resistant and recessed to prevent damage from direct contact. A twist-to-lock cable seals the scanner and provides superior strain relief. For those applications requiring quick access and out-of-the-way storage, the P304PRO comes with a built-in metal hook for attachment to a pulley. And the large, LED-enhancing window and extra loud 75 dB twin beepers make the "good decode" feedback impossible to miss. The P304PRO also utilizes the award-winning Phaser "handle-forward" design making the scanner extremely comfortable to hold and reduces fatigue when scanning throughout a full shift in scan-intensive applications.

High-Productivity Scanning

When high-productivity scanning is required, the P304PRO delivers 560 scans per second for faster 2-D and 1-D bar code reading. This high-performance field-proven 650 nm laser technology makes easy work of difficult applications like scanning through layered plastic wrap or glass such as an automobile windshield. In addition to great performance, the P304PRO excels at handling real-world conditions such as poor ambient lighting, conveyer belt vibrations and hand jitter caused by fast-paced volume scanning.

With point-and-shoot aiming, the programmable laser spot mode focuses the laser output into a very bright, concentrated spot for easy sighting on symbols even in direct sunlight. Making it easy for first-time users, smart raster automatically detects a 2-D bar code and scans it vertically, eliminating the need for manual rastering. This feature further increases your productivity by scanning only the symbol, and none of the blank area, text or other symbols around it.

Easy System Integration

Enabling effortless connectivity to hosts, the P304PRO has a direct-connect RS-232 capability and Symbol's Synapse "smart" cable connectivity to all popular host terminals including those using USB ports. Synapse "smart" cables eliminate the need for separate scanner-to-host interface controllers. In addition, the P304PRO has built-in Advanced Data Formatting (ADF), giving you the ability to modify the bar code data string before sending it to your host. This feature frees your application from the burdens of data formatting.

To find out how your company can benefit from Symbol's scanners, contact us at any of our offices, or visit us at www.symbol.com/bar code.

P304PRO Features

P304PRO Benefits

XE-class durability

Withstands multiple 6-ft./1.8 m drops to concrete over entire temperature range

Sealed to IP54 standard

Protected from windblown dust and rain

High-speed scanning

Faster PDF417 and 1-D bar code at 560 scans/second

Laser Spot Mode

Bright, easy-to-see laser, even in direct sunlight

Advanced Data Formatting and Parameter Programming

Easy programming and powerful Parameter Programming data manipulation

Flash memory

Easy software upgrades in the field

P304PRO Specification Highlights

P304PRO Physical Characteristics:

Dimensions:

6.8 in. H x 5.9 in. L x 2.9 in. D/173 mm H x 150 mm L x 74 mm D

Weight:

11 oz./312 gm (without cable)

Power Requirements:

4.75 to 5.5 V Standby Current less than 1 mA Average Current: 250 mA

Memory:

64KB SRAM/512KB Flash

P304PRO Performance Characteristics:

Interface Type:

Integrated RS-232 with additional host interfaces supported by Synapse Smart cables (Keyboard wedge, USB, OCIA, Dual RS-232, etc.)

Scan Element Type:

Raster scanning

Light Source:

650 nm laser diode/1.2 mW max

Scan Rate (x):

560 scans per second

Frame Rate (y):

25 frames per second

Optical Resolution:

Minimum X-dimension: 1-D = 6.0 mil (0.15 mm), 2-D = 6.6 mil (0.17 mm); Minimum Y-dimension= 3X

Minimum Reflectance Difference:

25% (1-D symbologies); 35% (PDF417) measured at 650 nm

Program Loading:

Parameters set by bar code menus; Flash memory for software upgrades

Decode Capabilities:

PDF417, micro-PDF417, UPC-A, UPC-E, EAN 8, EAN 13, Code 39, Tri-Optic Code 39, Code 93, D2of5, Bookland EAN, UPC Coupon Code, Code 39 Full ASCII, Code 128, I2of5, Codabar, UCC.EAN 128 with full auto-discrimination between all symbologies, MSI Plessey, Code 11

P304PRO User Environment

Operating Temperature:

-22° to 122°F/-30° to 50°C

Storage Temperature:

-40° to 158°F/-40° to 70°C

Shock:

Withstands multiple 6-ft./1.8 m drops to concrete over entire temperature range

Environmental Sealing:

IP54 (Industry standard for dust and water sealing)

Humidity:

5% to 95% (non-condensing)

Ambient Light Immunity:

Sunlight: 8,000 ft.-candles, 86,111 lux; Incandescent, Fluorescent, Sodium Vapor, and Mercury Light: 450 ft.-candles, 4,845 lux. Immune to direct exposure from normal office and factory level lighting

P304PRO Regulatory:

Electrical Safety:

Certified to UL1950, CSA C22.2 No. 950, EN60950/IEC950

Laser Safety:

CDRH Class II, IEC Class 2

EMI/RFI:

FCC Part 15 Class B, IECES-003 Class B, European Union EMC Directive

The Symbol P304PRO is also known as the Symbol Technologies P304PRO .
