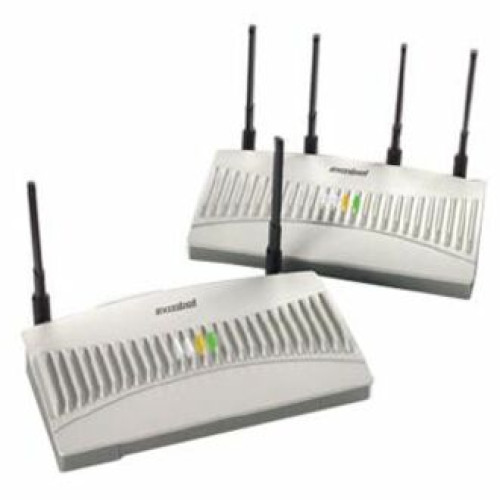

Photo of Symbol AP-5131-13043-WWR Symbol logo

Symbol AP 5131

Dual Radio Kit includes 802.3af PoE Power supply (Part# AP-PSBIAS-T-1P-AF) and 4 Dual-band Antennas (Part# ML-2452-APA2-01). Requires AC Line cord, if using in the USA order (Part# 23844-00-00R).

This part is replaced by AP-6532-66030-WR.
Call for Details
Ships in 24-48 hours

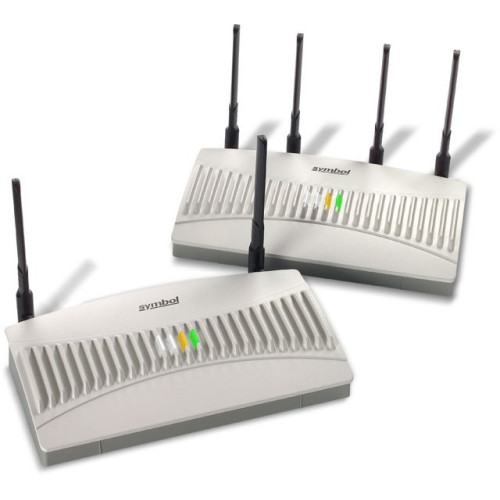

Symbol AP5131 Access Point

Designed to address the wireless and wired connectivity needs of the small office or retail outlet, the AP5131 provides a single-box solution that integrates all services required to extend secure broadband access to mobile users. With the ability to connect local users to a remote private network via a secured IPSec link, the AP5131 is ideal for deployment in branch offices or at telecommuter sites for enterprise-class WLAN performance and secure connectivity of wired clients. The AP5131 integrates a Router and DHCP Server for local LAN connectivity, a configurable stateful inspection firewall for LAN isolation, a VPN endpoint for secure backhaul connectivity, and a QoS Engine for superior performance of real-time video and voice applications. The AP5131 is available in single or dual-radio configuration. The dual-band version is able to support simultaneous 802.11a and 802.11b/g data services up to 54 Mbps in both the 2.4 and 5 GHz bands, or a combination of data and full-band Rogue AP detection services. The single-radio version of the AP5131, designed for deployments that require only one band of service, allows the administrator to select the band of operation, 802.11a or 802.11b/g, as a configuration parameter in the management interface.

Full specifications (PDF)

Manufacturer part number: AP-5131-13043-WWR

Technical Information

  • Frequency Range:
    • 2.412 - 2.462GHz
    • 5.150 - 5.250GHz
    • 5.250 - 5.350GHz
    • 5.725 - 5.825GHz
  • Interfaces: 2 x 10/100Base-T Ethernet
  • Band:
    • 2.4GHz
    • 5GHz

General Information

  • Manufacturer:
  • Product Name: AP-5131 Wireless Access Point

Physical Characteristics

  • Mounting Configurations:
    • Ceiling Mount
    • Wall Mount

Agency Approvals

  • Agency Approvals:
    • RoHS Compliance
    • UL
    • cUL 60950-1
    • IEC
    • EN60950-1
    • UL2043
    • TUV GS
    • FCC
    • Industry Canada
    • CE
    • TELEC
    • WPA2
    • WMM

Other

  • Additional Information:
    • Direct Sequence Spread Spectrum (DSSS)
    • Orthogonal Frequency Division Multiplexing (OFDM)
    • 2 ports (WAN, LAN) Auto-sensing 10/100Base-T Ethernet

Environmental Conditions

  • Temperature:
    • -20°C (-4°F) to 50°C (122°F) Operating
    • -40°C (-40°F) to 70°C (158°F) Storage
  • Humidity: 5 to 95% Non-condensing

Warranty

  • Manufacturer Warranty: 12 Month(s)
