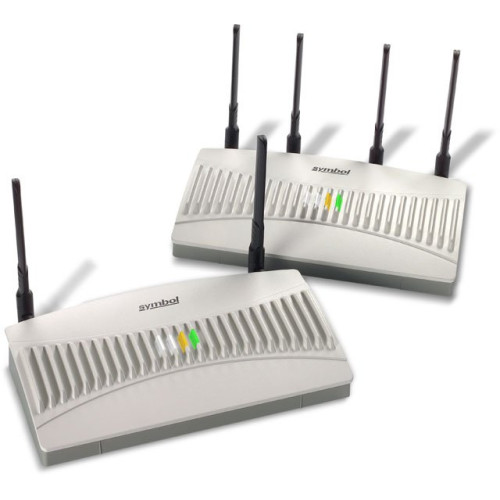

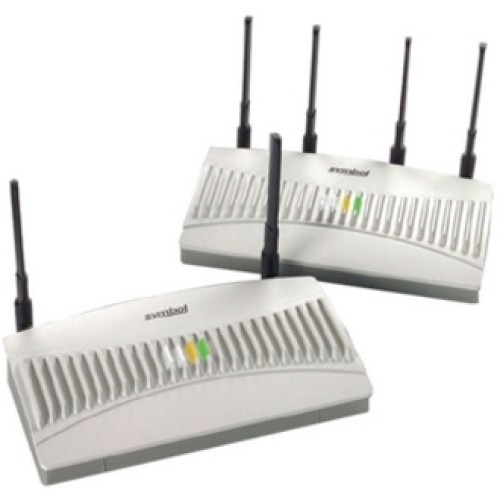

AP-5131-40020-WW - Symbol AP5131 Access Point

The AP-5131 delivers a new level of simplicity and cost-efficiency to enterprise level high-performance wired and wireless networking. Remote employees in branch offices, small businesses, and telecommuters working from home enjoy secure connectivity to the Internet, corporate private network and more from desktops, laptops and other mobile devices. This all-in-one easy-to-deploy solution offers 802.11a/b/g wireless networking flexibility, the latest wired and wireless security standards, and the speed required to support the most demanding applications including voice and video. Engineered with built-in easy to use management tools and the rugged durability for nearly any environment, the AP-5131 is the ideal total networking solution for your smaller locations.

We respond to every email
Part # Description Availability Price Order
AP-5131-40020-WW AP 5131, Single Radio Only. If using non PoE (Part# 50-14000-243R) and (Part# 50-16000-182R) are required. See accessories.
Information:   |  Specifications  |
Accessories:   |  Accessories/Options  |  Symbol AP5131 service contract  |

AP-5131-40020-WW Details

Technical Information

  • Wireless Technology: IEEE 802.11a/b/g
  • Frequency Band/Bandwidth:
    • 2.4GHz
    • 5GHz
  • Frequency Band/Bandwidth Details:
    • 2.412 to 2.472GHz IEEE 802.11b/g ISM Band
    • 4.92 to 5.835GHz IEEE 802.11a
  • Transmission Speed:
    • 54MbpsAuto-fallback IEEE 802.11a/g
    • 6Mbps IEEE 802.11a/g
    • 11MbpsAuto-fallback IEEE 802.11b
    • 1Mbps IEEE 802.11b
  • Channels:
    • 1 to 35 Channel(s)Operating IEEE 802.11a
    • 1 to 13 Channel(s)Operating IEEE 802.11b/g
  • Transmit Power: 4dBm to 20dBm
  • Receiver Sensitivity:
    • -73 dBm @ 54Mbps 10% PER IEEE 802.11a
    • -91 dBm @ 6Mbps 10% PER IEEE 802.11a
    • -84 dBm @ 11Mbps 10% PER IEEE 802.11b
    • -94 dBm @ 1Mbps 10% PER IEEE 802.11b
  • Wireless Security: WPA WPA2
  • Modulation:
    • DSSS
    • OFDM

General Information

  • Manufacturer: Symbol
  • Product Name: AP-5131 Wireless Access Point

Physical Characteristics

  • Dimensions: 1.77" (45mm) x 9.45" (240mm) x 5.32" (135mm)
  • Weight: 1.95 lb (0.88 kg)

Environmental Conditions

  • Temperature:
    • -20°C (-4°F) to 50°C (122°F) Operating
    • -40°C (-40°F) to 70°C (158°F) Storage
  • Humidity: 5 to 95% Operating Non-condensing


  • Additional Information: Single Radio (Dual Band - a or b/g) Software selectable Ethernet connectivity: 1 x RJ-45 10/100 Base-T Operating Bands: IEEE 802.11b: 2.412 to 2.462 GHz IEEE 802.11a/g 5.150 to 5.250 (UNII -1) IEEE 802.11a/g 5.250 to 5.350 (UNII -2) IEEE 802.11a/g 5.725 to 5.825 (UNII -3)

Agency Approvals

  • Agency Approvals: FCC Wi-Fi 802.3af WPA2 WMM IEEE 802.11a IEEE 802.11b IEEE 802.11g UL2043 UL cUL 60950-1 IEC / EN60950-1 TUV GS


  • Manufacturer Warranty: 1 Year(s)
Part # Description Availability Price Order
25-72178-01 Symbol Adapter Cable, RP-SMA to RP-BNC Ships Free Today $15.88
50-16000-221R Motorola MC67 Accessories, AC Line Cord, 1.8 meter, 250V, US Ships Free Today $19.86
50-16000-219R Motorola MC67 Accessories, Cord: Pwr 18awg 10a 250v Uk Ships Free Today $19.86
50-16000-182R Motorola AC Power Line Cord, 2 Wire, 6', ungrounded, NEMA 1-15P Plug. (For use with 2 Wire, ungrounded Power Supplies) Ships Free Today $12.84
25-85392-01R Symbol Cable, Assembly, Jumper, Type-N, F/RP-SMA F, 3.5L
Ships Free in 3-5 Days
25-85391-01R Symbol Cable, Assembly (Jumper, Type-N, M/RP SMA F, 3.5L)
Ships Free in 3-5 Days
ML-5299-HPA1-01R Symbol 5 GHz (802.11a) Antenna, In/Outdoor Omnidirectional (Gain: 5dBi). Ships Free Today $127.05
ML-2452-LAK1-01R Symbol Lightning Arrestor, Dual Band, 12'N-M2R-SMA
Ships Free in 3-5 Days
Call for Details

The Symbol AP-5131-40020-WW is also known as Symbol Technologies SYM-AP513140020WW or AP513140020WW .
