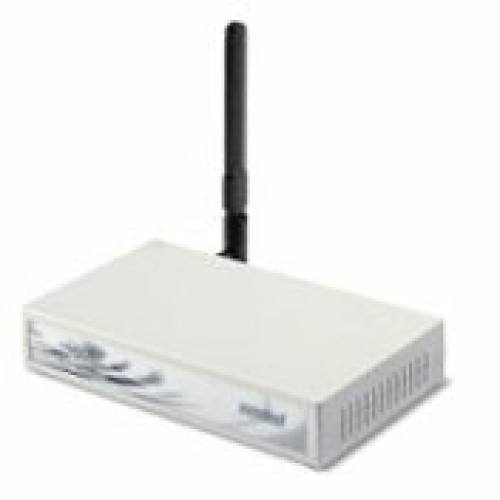

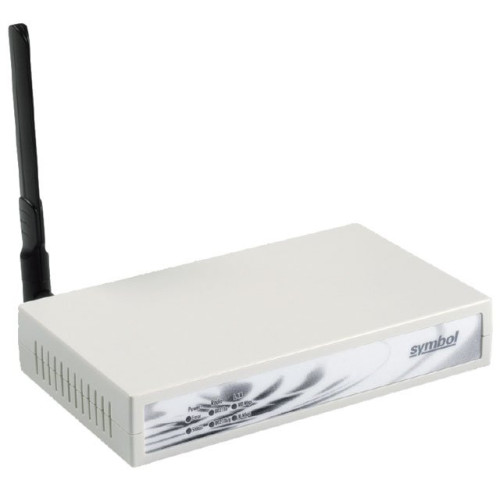

CB-3000-0010-WWR - Symbol CB3000 Access Point

CB3000 Client Bridge provides affordable and reliable wireless connectivity for Ethernet devices that do not have a PC or PCI card slot. Connect everything from printers, scales and medical equipment, to manufacturing machinery, barcode readers, time clocks, cash registers and other data collection devices via an RJ45 port. This cost-efficient connection point can support up to 16 wireless clients via an Ethernet hub. And advanced security capabilities protect your traffic from being deciphered and your network from unauthorized access.

We respond to every email
Part # Description Availability Price Order
CB-3000-0010-WWR CB 3000, Ethernet Client Bridge (802.11a/b/g, Power supply, Ethernet Cable, and Worldwide Power Adapter)
Information:   |  Specifications  |
Accessories:   |  Accessories/Options  |  Symbol CB3000 service contract  |

CB-3000-0010-WWR Details

Technical Information

  • Wireless Technology: IEEE 802.11a/b/g
  • Frequency Band/Bandwidth:
    • 5GHz
    • 2.4GHz
  • Frequency Band/Bandwidth Details:
    • 5.15 to 5.825GHz IEEE 802.11a
    • 2.4 to 2.48GHz IEEE 802.11b/g
  • Antenna: Omnidirectional Antenna
  • Transmission Speed:
    • 54Mbps Auto-fallback IEEE 802.11a/g
    • 6Mbps IEEE 802.11a/g
    • 11Mbps Auto-fallback IEEE 802.11b
    • 1Mbps IEEE 802.11b
  • Transmit Power:
    • 13dBm to 21.5dBm IEEE 802.11a
    • 15dBm to 21.5dBm IEEE 802.11b/g
  • Receiver Sensitivity:
    • 72 dBm @ 54Mbps IEEE 802.11a
    • 90 dBm @ 6Mbps IEEE 802.11a
    • 85 dBm @ 11Mbps IEEE 802.11b
    • 97 dBm @ 1Mbps IEEE 802.11b
  • Wireless Security: WPA2/802.11i WEP 40/128 bits 802.1x Supplicant PEAP EAP/TLS EAP/TTLS
  • Modulation: DSSS (Direct Sequence Spread Spectrum) OFDM (Orthogonal Frequency Division Multiplexing)
  • Client Support: 16

General Information

  • Manufacturer: Motorola
  • Product Name: CB3000 Wireless Bridge

Physical Characteristics

  • Dimensions: 7" (178mm) x 4" (102mm) x x 1.2" (30mm)

Agency Approvals

  • Agency Approvals:
    • RoHS Compliance IEEE 802.1x IEEE 802.11a IEEE 802.11b IEEE 802.11g
    • IEEE 802.3
    • IEEE 802.1d
    • IEEE 802.11i
    • IEEE 802.11h (DFS/TCP)
    • HTTPS

Environmental Conditions

  • Temperature: 0°C (32°F) to 50°C (122°F) Operating
  • Humidity: 10 to 90% Non-condensing


  • Package Contents: CB3000 Wireless Bridge
  • Additional Information: RJ-45 10/100Base-T

The Symbol CB-3000-0010-WWR is also known as Symbol Technologies SYM-CB30000010WWR or CB30000010WWR .
