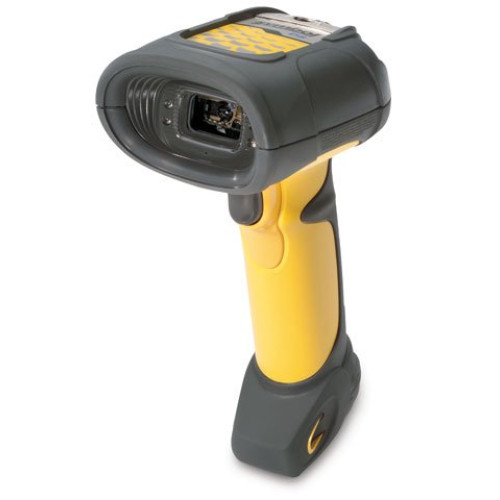

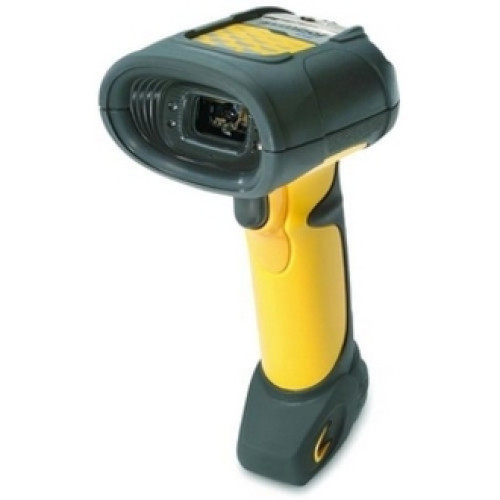

DS3407-SF20005 - Symbol DS3407 Bar code Scanner

The DS3407, with its CCD sensor, is ideal for capturing linear and 2D bar codes as well as image capture and transfer. A USB connection insures quick data communications. The DS3407 features omnidirectional reading, making scans faster and speeding up inventory and checkout processes. The DS3407's rugged construction makes it perfect for warehouses, outdoor point of sale stations and shipping and receiving facilities.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
DS3407-SF20005 DS3407, High Speed Imager with RS-232 Serial/USB multiple interface. Color: Yellow. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# CBA-U01-S07ZAR), PS/2 (Part# CBA-K01-S07PAR), or RS-232 Serial cables (Part# CBA-R01-S07PAR) and a Power supply (Part# PWRS-14000-253R).
Information:   |  Specifications  |
Accessories:   |  Accessories/Options  |  Symbol DS3407 service contract  |

DS3407-SF20005 Details

Technical Information

  • Form Factor: Handheld Scanner
  • Barcode Dimension: 1D/2D
  • Resolution: 5 mil(s)
  • Symbologies Supported:
    • UPC/EAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • JAN-8
    • JAN-13
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Code 128
    • Code 128 Full ASCII
    • Codabar (NW7)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • Code 11
    • Code 32
    • Bookland EAN
    • IATA
    • UCC/EAN
    • RSS
    • RSS Variants
    • PDF 417
    • Micro PDF417
    • MaxiCode
    • DataMatrix
    • Composite Codes
    • QR Code
    • U.S. Planet
    • U.K. Postal
    • Japanese Post
    • Australian Post
    • Dutch Postal
    • U.S. Postnet
  • Scanner Type: Laser
  • Interface Options:
    • RS-232
    • USB
  • Interface Connectivity: Corded
  • Scan Pattern: Omnidirectional
  • Input Voltage: 5 V DC
  • Depth of Field: 1 - 14" - 100% UPC/EAN

General Information

  • Manufacturer: Symbol
  • Product Name: DS3407 Barcode Scanner

Physical Characteristics

  • Dimensions: 7.34" (186.44mm) x 4.82" (122.43mm) x 2.93" (74.42mm)
  • Weight: 12.56 oz - Without Cable
  • Color:
    • Black
    • Yellow

Agency Approvals

  • Agency Approvals:
    • UL1950
    • CSA C22.2 No. 950
    • EN60950/IEC950
    • CDRH Class II
    • IEC Class 2
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA

Environmental Conditions

  • Temperature:
    • 0°C (32°F) to 50°C (122°F) Operating
    • -40°C (-40°F) to 70°C (158°F) Storage
  • Humidity: 5 to 95% Non-condensing

Other

  • Cables Included:
    • USB
    • RS-232

Warranty

  • Manufacturer Warranty: 3 Year(s)
Part # Description Availability Price Order
CBA-U01-S07ZAR Motorola Cable, USB Cable, 7 ft. (2m) Straight, Series A Connector. Ships Free Today $25.50
Retail $27
CBA-U01-S07ZAR Motorola Cable, USB Cable, 7 ft. (2m) Straight, Series A Connector. Ships Free Today $25.50
Retail $27

The Symbol DS3407-SF20005 is also known as Symbol Technologies SYM-DS3407SF20005 or DS3407SF20005 .
