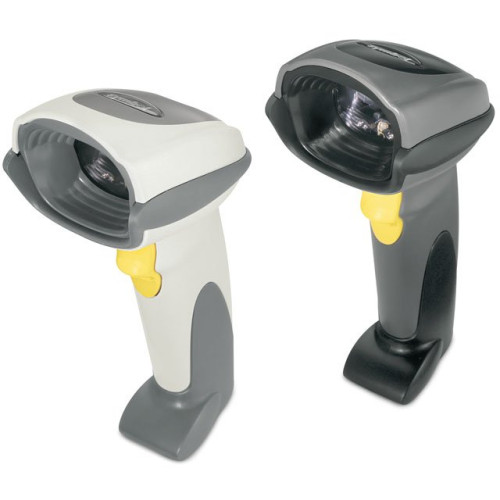

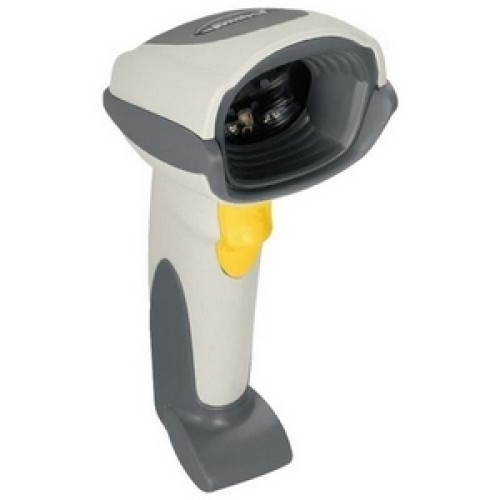

DS6607-HD20007R - Symbol DS6607 Bar code Scanner

The DS6607, with its CCD sensor, is ideal for capturing linear and 2D bar codes as well as image capture and transfer. A USB connection insures quick data communications. The DS6607 features omnidirectional reading, making scans faster and speeding up inventory and checkout processes. The DS6607's sturdy construction makes it perfect for retail point of sale stations.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
DS6607-HD20007R DS6607, USB/RS-232, Near Focus - Color: Black. Order cables and power supply separately. See accessories.
Information:   |  Specifications  |
Accessories:   |  Accessories/Options  |  Symbol DS6607 service contract  |

DS6607-HD20007R Details

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • UPC/EAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • JAN-8
    • JAN-13
    • Code 39
    • Code 39 Full ASCII
    • Trioptic Code 39
    • Code 128
    • Code 128 Full ASCII
    • Codabar (NW7)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • Code 11
    • Code 32
    • Bookland EAN
    • IATA
    • UCC/EAN RSS
    • RSS Variants
    • PDF 417
    • Micro PDF-417
    • MaxiCode
    • DataMatrix
    • QR Code
    • U.S. Postnet
    • U.S. Planet
    • U.K. Postal
    • Japanese Post
    • Australian Post
    • Dutch Postal
    • UPC/EAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • JAN-8
    • JAN-13
    • Code 39
    • Code 39 Full ASCII
    • Trioptic Code 39
    • Code 128
    • Code 128 Full ASCII
    • Codabar (NW7)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • Code 11
    • Code 32
    • Bookland EAN
    • IATA
    • UCC/EAN RSS
    • RSS Variants
    • PDF 417
    • Micro PDF-417
    • MaxiCode
    • DataMatrix
    • QR Code
    • U.S. Postnet
    • U.S. Planet
    • U.K. Postal
    • Japanese Post
    • Australian Post
    • Dutch Postal
  • Maximum Scan Resolution: 5 mil
  • Depth of Field: 1" - 14"@ - 100% UPC/EAN

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: DS6607
  • Product Name: DS6607 HD Barcode Reader

Physical Characteristics

  • Height: 6.6"
  • Width: 2.8"
  • Depth: 4.7"
  • Color: Black
  • Weight (Approximate): 6.04 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • RoHS Compliant
    • Electrical Safety:
    • UL1950
    • CSA C22.2 No. 950
    • EN60950/IEC950
    • Laser Safety:
    • CDRH Class II
    • IEC Class 2
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA
  • Additional Information:
    • Supported Interfaces:
    • SerialUSB

Warranty

  • Limited Warranty: 5 Year

Power Description

  • Input Voltage: 5 V DC
Part # Description Availability Price Order
TSP-US-SC-3 BCI Service Contracts, True Support Contract 3-year - Scanners Includes Tier 1 and Tier 2 Technical Helpdesk Support 7: 30am-cst-5: 00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $48 per year for 3 years, billed annually.
Ships Free in 3-5 Days
$48.00
SXB-DS6607-50 Symbol Service Plan, 5 year comprehensive overnight free replacement service for any problems with your DS6607. Available only on new units.
Ships Free in 3-5 Days
$41.36

The Symbol DS6607-HD20007R is also known as Symbol Technologies DS6607-HD20007R or DS6607HD20007R .
