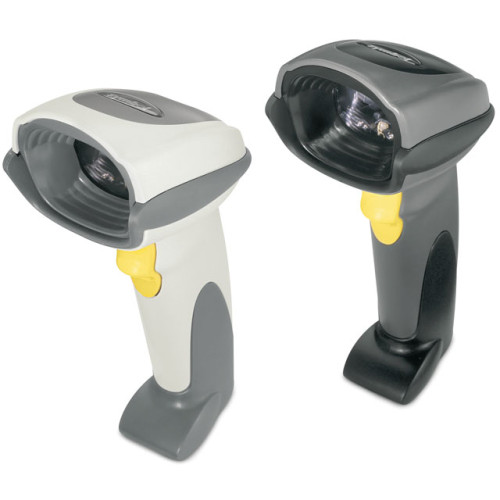

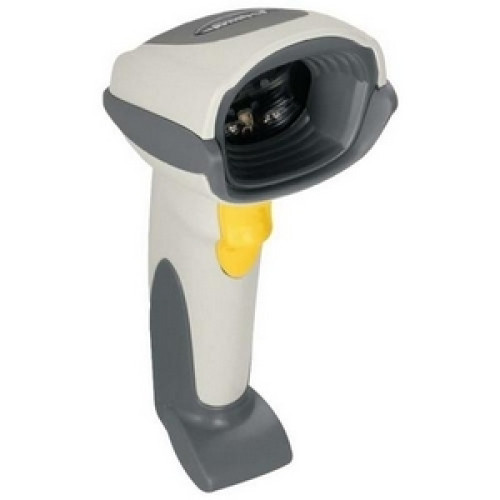

DS6607-SR20001 - Symbol DS6607 Bar code Scanner

The DS6607, with its CCD sensor, is ideal for capturing linear and 2D bar codes as well as image capture and transfer. A USB connection insures quick data communications. The DS6607 features omnidirectional reading, making scans faster and speeding up inventory and checkout processes. The DS6607's sturdy construction makes it perfect for retail point of sale stations.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
DS6607-SR20001 DS6607, USB/RS-232, Far Focus - Color: Cash Register White. Order cables and power supply separately. See accessories.
Information:   |  Specifications  |
Accessories:   |  Accessories/Options  |  Symbol DS6607 service contract  |

DS6607-SR20001 Details

Technical Information

  • Form Factor: Handheld Scanner
  • Barcode Dimension: 1D/2D
  • Symbologies Supported:
    • UPC/EAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • JAN-8
    • JAN-13
    • Code 39
    • Trioptic Code 39
    • Code 128
    • Code 128 Full ASCII
    • Codabar (NW7)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • Bookland EAN
    • IATA
    • Code 11
    • Code 32
    • IATA
    • UCC/EAN RSS
    • RSS Variants
    • PDF 417
    • Micro PDF417
    • MaxiCode
    • MaxiCode
    • DataMatrix
    • QR Code
    • U.S. Postnet
    • U.S. Planet
    • U.K. Postal
    • Japanese Post
    • Australian Post
    • Dutch Postal
  • Scanner Type: Imager with Laser Aiming
  • Interface Options:
    • RS-232
    • USB
  • Interface Connectivity: Corded
  • Scan Pattern: Omnidirectional
  • Input Voltage: 5 V DC
  • Power Supply: External
  • Depth of Field:
    • 2.8 - 5.8"@5mils - Code 39
    • 2.6 - 12.5" - Postnet
    • 0.6 - 14"@13mils - 100% UPC
    • 1 - 21"@20mils
    • 3.4 - 5.7"@6.6mils - PDF417
    • 2.6 - 6.8"@10mils - QR Code
    • 2.3 - 7.5"@10mils - MicroPDf
    • 2.3 - 8.0"@10mils - Data Matrix
    • 2.1 - 8.9"@10mils - PDF417
    • 1.5 - 12.8"@35mils - Maxicode

General Information

  • Manufacturer: Symbol
  • Product Name: DS6607 SR Digital Barcode Scanner

Physical Characteristics

  • Dimensions: 6.55" (166.37mm) x 2.82" (71.63mm) x 4.72" (119.89mm)
  • Weight: 6.04 oz - Without Cable
  • Color: White

Agency Approvals

  • Agency Approvals:
    • UL1950
    • CSA C22.2 No. 950
    • EN60950/IEC950
    • CDRH Class II
    • IEC Class 2
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA

Environmental Conditions

  • Temperature:
    • 0°C (32°F) to 50°C (122°F) Operating
    • -40°C (-40°F) to 70°C (158°F) Storage
  • Humidity: 5 to 95% Non-condensing

Warranty

  • Manufacturer Warranty: 5 Year(s)
Part # Description Availability Price Order
TSP-US-SC-3 BCI Service Contracts, True Support Contract 3-year - Scanners Includes Tier 1 and Tier 2 Technical Helpdesk Support 7:30am-cst-5:00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $48 per year for 3 years, billed annually.
Ships Free in 3-5 Days
$48.00
SXB-DS6607-50 Symbol Service Plan, 5 year comprehensive overnight free replacement service for any problems with your DS6607. Available only on new units.
Ships Free in 3-5 Days
$41.36

The Symbol DS6607-SR20001 is also known as Symbol Technologies SYM-DS6607SR20001 or DS6607SR20001 .
