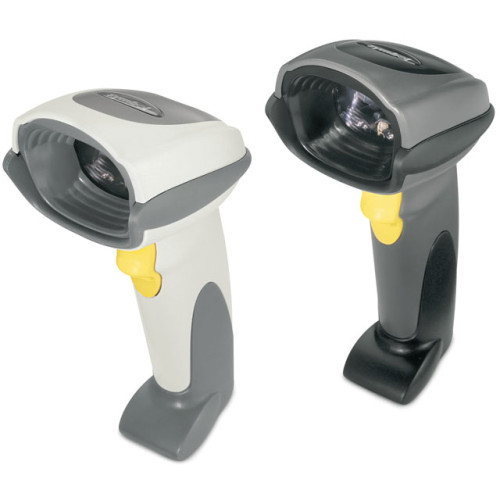

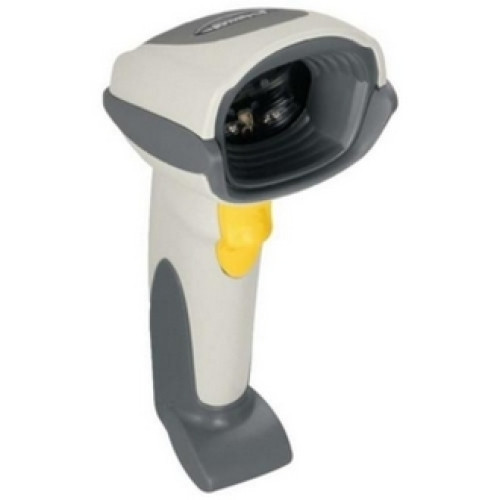

Symbol DS 6607 Barcode Scanner
Part #: DS6607-SR20007 | SKU: SYM15339

The DS 6607, with its CCD sensor, is ideal for capturing linear and 2D barcodes as well as image capture and transfer. A USB connection insures quick data communications. The DS 6607 features omnidirectional reading, making scans faster and speeding up inventory and checkout processes. The DS 6607's sturdy construction makes it perfect for retail point of sale stations.

Symbol DS 6607 Barcode Scanner

Part Details: DS 6607, USB/RS-232, Far Focus - Color: Black. Order cables and power supply separately. See accessories.

Additional Information

Manufacturer Symbol
Model Name DS 6607

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • UPC/EAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • JAN-8
    • JAN-13
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Code 128
    • Code 128 Full ASCII
    • Codabar (NW7)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • Code 11
    • Code 32
    • Bookland EAN
    • IATA
    • UCC/EAN RSS
    • RSS Variants
    • PDF 417
    • Micro PDF417
    • MaxiCode
    • DataMatrix
    • Composite Code
    • QR Code
    • U.S. Postnet
    • U.S. Planet
    • U.K. Postal
    • Japanese Post
    • Australian Post
    • Dutch Postal
    • UPC/EAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • JAN-8
    • JAN-13
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Code 128
    • Code 128 Full ASCII
    • Codabar (NW7)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • Code 11
    • Code 32
    • Bookland EAN
    • IATA
    • UCC/EAN RSS
    • RSS Variants
    • PDF 417
    • Micro PDF417
    • MaxiCode
    • DataMatrix
    • Composite Code
    • QR Code
    • U.S. Postnet
    • U.S. Planet
    • U.K. Postal
    • Japanese Post
    • Australian Post
    • Dutch Postal
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 2.80" - 5.80"@5 mil - Code 39
    • 2.60" - 12.50"@ - Postnet
    • 0.60" - 14"@13 mil - 100% UPC
    • 1" - 21"@20 mil - Code 39
    • 3.40" - 5.70"@6.60 mil - PDF417
    • 2.60" - 6.80"@10 mil - QR Code
    • 2.30" - 7.50"@10 mil - MicroPDF
    • 2.30" - 8"@10 mil - Data Matrix
    • 2.10" - 8.90"@10 mil - PDF417
    • 1.50" - 12.80"@35 mil - Maxicode

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: DS6607
  • Product Name: DS6607 SR Barcode Reader

Physical Characteristics

  • Height: 6.6"
  • Width: 2.8"
  • Depth: 4.7"
  • Color: Black
  • Weight (Approximate): 6.04 oz

Interfaces/Ports

  • Host Interface:
    • Serial
    • Multi-interface

Other

  • Certifications & Standards:
    • Electrical Safety:
    • UL1950
    • CSA C22.2 No. 950
    • EN60950/IEC950
    • Laser Safety:
    • CDRH Class II
    • IEC Class 2
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA
  • Platform Supported: PC
  • Additional Information:
    • Supported Interfaces:
    • Serial
    • USB

Warranty

  • Limited Warranty: 5 Year

Power Description

  • Input Voltage: 5 V DC
Extended Details

Recommended Accessories for Model: Symbol DS 6607 Barcode Scanner

  • Zebra DS 6608 Accessory
    Part #: 20-66483-02R | SKU: 29271

    Black intellistand assembly for the DS6xxx
    Price: $170.47
    In Stock
  • Zebra DS3578-ER Power Device
    Part #: 50-16000-182R | SKU: 21798

    AC Power Line Cord, 2 Wire, 6', ungrounded, NEMA 1-15P Plug. (For use with 2 Wire, ungrounded Power Supplies)
    Price: $13.92
    In Stock
  • Zebra ET1 Enterprise Power Device
    Part #: 23844-00-00R | SKU: 26223

    US AC Line Cord, Grounded, 7.5', Three wire for power supplies.
    Price: $18.51
    In Stock
  • Zebra LS 3408 Accessory
    Part #: CBA-R02-C09PAR | SKU: 20870

    Cable Assembly (9 Feet, Coiled, RS232, STD-DB9 Female, TXD on 2). Required power supply not included, see (Part# PWRS-14000-253R).
    $45.06
    In Stock
  • Zebra DS 6607 Accessory
    Part #: 11-66553-06R | SKU: 26187

    Wall mount bracket for several Motorola DS and LS barcode scanners. Color: Gray.
    $45.06
    In Stock

Recommended Warranties for Model: Symbol DS 6607 Barcode Scanner

  • Zebra Service Contracts Service Contract
    Part #: SXB-DS6607-50 | SKU: 17648

    Whatever happens to your DS6607, Symbol will send you a <b>free replacement overnight!</b> Get 5 years of comprehensive protection with no down-time at an unbeatable value. Available only on new units.
    MSRP: $49.00 Price: $41.36
    In Stock
