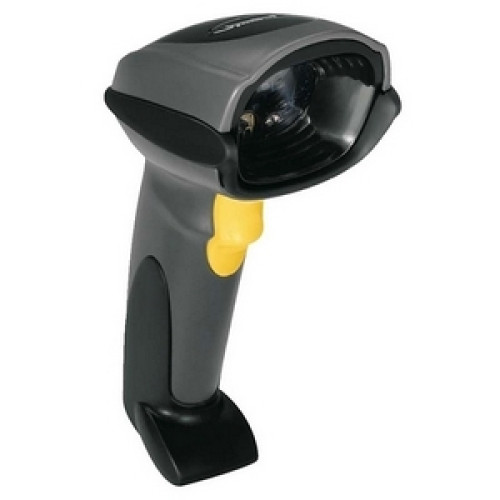

DS6608-HD20007 - Symbol DS6608 Bar code Scanner

The DS6608, with its CCD sensor, is ideal for capturing both linear and 2D bar codes. Multiple interface options allow quick data communications. The DS6608 features omnidirectional reading, making scans faster and speeding up inventory and checkout processes. The DS6608's sturdy construction makes it perfect for retail point of sale stations.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
DS6608-HD20007 DS6608, Hi-Density - Color: Black. Order cables and power supply separately. See accessories.
Information:   |  Specifications  |
Accessories:   |  Accessories/Options  |  Symbol DS6608 service contract  |

DS6608-HD20007 Details

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Image Sensor: CCD
  • Barcode Symbology Supported:
    • UPC/EAN
    • UCC/EAN 128
    • JAN-13
    • JAN-8
    • Code 39
    • Code 39 Full ASCII
    • Trioptic Code 39
    • Code 128
    • Code 128 Full ASCII
    • Codabar (NW7)
    • Discrete 2 of 5
    • Interleaved 2 of 5
    • Code 93
    • Code 32
    • MSI
    • Code 11
    • Bookland EAN
    • IATA
    • UCC/EAN
    • RSS
    • RSS Variants
    • PDF 417
    • Micro PDF417
    • MaxiCode
    • DataMatrix
    • QR Code
    • U.S. Planet
    • U.S. Postnet
    • U.K. Postal
    • Japanese Post
    • Australian Post
    • Dutch Postal
    • Composite Code
    • Coupon Code
    • ECC 200
    • JAN 128
    • UPC/EAN
    • UCC/EAN 128
    • JAN-13
    • JAN-8
    • Code 39
    • Code 39 Full ASCII
    • Trioptic Code 39
    • Code 128
    • Code 128 Full ASCII
    • Codabar (NW7)
    • Discrete 2 of 5
    • Interleaved 2 of 5
    • Code 93
    • Code 32
    • MSI
    • Code 11
    • Bookland EAN
    • IATA
    • UCC/EAN
    • RSS
    • RSS Variants
    • PDF 417
    • Micro PDF417
    • MaxiCode
    • DataMatrix
    • QR Code
    • U.S. Planet
    • U.S. Postnet
    • U.K. Postal
    • Japanese Post
    • Australian Post
    • Dutch Postal
    • Composite Code
    • Coupon Code
    • ECC 200
    • JAN 128
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 0.50" - 7"@ - 100% UPC
    • 1.90" - 3.60"@5 mil - PDF417

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: DS6608
  • Product Name: DS6608 HD Barcode Reader

Physical Characteristics

  • Height: 6.6"
  • Width: 2.8"
  • Depth: 4.7"
  • Color: Black
  • Weight (Approximate): 6.04 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Certifications & Standards:
    • Electrical Safety:
    • UL1950
    • CSA C22.2 No. 950
    • EN60950/IEC950
    • Laser Safety:
    • CDRH Class II
    • IEC Class 2
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA
  • Platform Supported: PC
  • Additional Information:
    • Supported Interfaces:
    • SerialKeyboard WedgeWand EmulationIBM 468X/469XUSB

Warranty

  • Limited Warranty: 5 Year
Part # Description Availability Price Order
TSP-US-SC-3 BCI Service Contracts, True Support Contract 3-year - Scanners Includes Tier 1 and Tier 2 Technical Helpdesk Support 7:30am-cst-5:00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $48 per year for 3 years, billed annually.
Ships Free in 3-5 Days
$48.00

The Symbol DS6608-HD20007 is also known as Symbol Technologies SYM-DS6608HD20007 or DS6608HD20007 .
