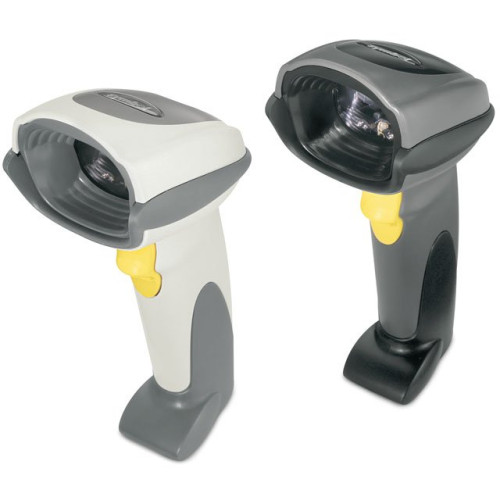

DS6608-SR20007 - Symbol DS6608 Bar code Scanner

The DS6608, with its CCD sensor, is ideal for capturing both linear and 2D bar codes. Multiple interface options allow quick data communications. The DS6608 features omnidirectional reading, making scans faster and speeding up inventory and checkout processes. The DS6608's sturdy construction makes it perfect for retail point of sale stations.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
DS6608-SR20007 DS6608, Standard Range - Color: Black. Order cables and power supply separately. See accessories.
Information:   |  Specifications  |
Accessories:   |  Accessories/Options  |  Symbol DS6608 service contract  |

DS6608-SR20007 Details

Technical Information

  • Form Factor: Handheld Scanner
  • Barcode Dimension: 1D/2D
  • Symbologies Supported:
    • UPC/EAN
    • UCC/EAN 128
    • JAN-13
    • JAN-8
    • Code 39
    • Code 39 Full ASCII
    • Trioptic Code 39
    • Code 128
    • Code 128 Full ASCII
    • Codabar (NW7)
    • Discrete 2 of 5
    • Interleaved 2 of 5
    • Code 93
    • Code 32
    • MSI
    • Code 11
    • Bookland EAN
    • IATA
    • UCC/EAN
    • RSS
    • RSS Variants
    • PDF 417
    • Micro PDF417
    • MaxiCode
    • DataMatrix
    • QR Code
    • U.S. Planet
    • U.S. Postnet
    • U.K. Postal
    • Japanese Post
    • Australian Post
    • Dutch Postal
  • Scanner Type: Laser
  • Interface Options:
    • Keyboard Wedge
    • RS-232
    • IBM 468X/469X
    • Synapse Adapter Cable
    • USB
  • Interface Connectivity: Corded
  • Scan Pattern: Omnidirectional
  • Power Supply: External
  • Depth of Field: 1 - 14" - 100%UPC/EAN

General Information

  • Manufacturer: Symbol
  • Product Name: DS6608SR Digital Barcode Scanner

Physical Characteristics

  • Dimensions: 6.55" (166.37mm) x 2.82" (71.63mm) x 4.72" (119.89mm)
  • Weight: 6.04 oz - without Cable
  • Color: Black

Agency Approvals

  • Agency Approvals:
    • UL1950
    • CSA C22.2 No. 950
    • EN60950/IEC950
    • CDRH Class II
    • IEC Class 2
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA

Environmental Conditions

  • Temperature:
    • 0°C (32°F) to 50°C (122°F) Operating
    • -40°C (-40°F) to 70°C (158°F) Storage
  • Humidity: 5 to 95%

Warranty

  • Manufacturer Warranty: 5 Year(s)
