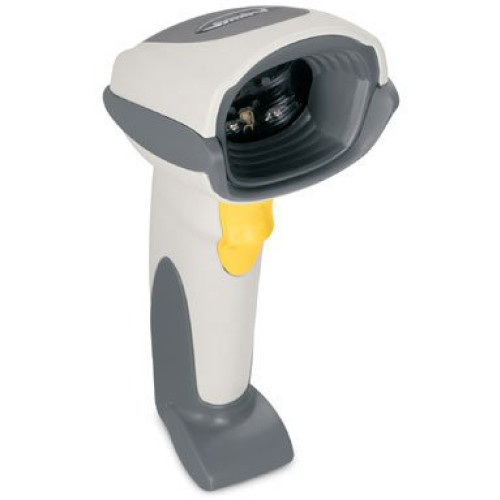

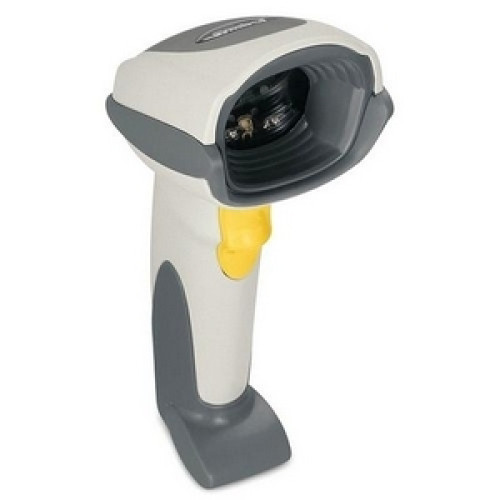

DS6707-DC20001ZZR - Symbol DS 6707 Bar code Scanner

The Symbol DS 6707 helps maximize employee productivity and streamline business processes in the retail store, at the post office, in the pharmacy and on the manufacturing floor. With the DS 6707, you get the power of a barcode scanner, digital camera and document scanner in a single, cost-effective device. From point-and-shoot simplicity to extremely reliable barcode scanning and the ability to scan full size documents including fine print the DS 6707 is the right tool for the job. A wide range of connection options makes the Symbol DS 6707 the right choice for any application.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
DS6707-DC20001ZZR DS 6707, SCANNER ONLY, 2D Imager, Document Capture capability. Cables and accessories must be purchased separately. Color: White. Ships Free Today $278.55
Retail $389
Save 28%
Information:   |  Specifications  |  Symbol's DS 6707 page  |
Accessories:   |  Accessories/Options  |  Symbol DS 6707 service contract  |

DS6707-DC20001ZZR Details

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • UPC/EAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • JAN-8
    • JAN-13
    • Code 39
    • Trioptic Code 39
    • Code 128
    • Code 128 Full ASCII
    • Codabar (NW1)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • Bookland EAN
    • IATA
    • Code 32
    • RSS Variants
    • PDF 417
    • Micro PDF417
    • MaxiCode
    • DataMatrix
    • QR Code
    • U.S. Postnet
    • U.S. Planet
    • U.K. Postal
    • Japanese Post
    • Australian Post
    • Dutch Postal
    • UPC/EAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • JAN-8
    • JAN-13
    • Code 39
    • Trioptic Code 39
    • Code 128
    • Code 128 Full ASCII
    • Codabar (NW1)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • Bookland EAN
    • IATA
    • Code 32
    • RSS Variants
    • PDF 417
    • Micro PDF417
    • MaxiCode
    • DataMatrix
    • QR Code
    • U.S. Postnet
    • U.S. Planet
    • U.K. Postal
    • Japanese Post
    • Australian Post
    • Dutch Postal
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 2.50" - 10"@5 mil - Code 39
    • 0.80" - 16.80"@13 mil - 100% UPC/EAN
    • 0.70" - 28.30"@20 mil - Code 39
    • 1.90" - 11.80"@10 mil - PDF417
    • 2.60" - 12.20"@10 mil - Data Matrix

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: DS6707
  • Product Name: DS6707 DC Barcode Reader

Physical Characteristics

  • Height: 6.6"
  • Width: 2.8"
  • Depth: 4.7"
  • Color: White
  • Weight (Approximate): 6.40 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • RoHS Compliant
    • Medical Electrical Equipment: EN60001-1-2: 2002
    • Electrical Safety:
    • UL6950-1
    • CSA C22.2 No. 60950-1
    • EN60950-1/IEC60950-1
    • Laser Safety:
    • EN60825-1:1994 +A1: 2002 +A2 :2001
    • IEC60825-1
    • 21CFR1040.10
    • 21CFR1040.11
    • CDRH Class II
    • IEC Class 2
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES-003 Class B
    • CISPR 22
    • CISPR 24
  • Additional Information:
    • Supported Interfaces:
    • USB
    • Serial

Warranty

  • Limited Warranty: 5 Year

Power Description

  • Input Voltage: 5 V DC
Part # Description Availability Price Order
CBA-U09-C15ZAR Symbol Cable, 15', Coiled, standard USB cable, Series A. Ships Free Today $61.67
Retail $90
Save 31%
CBA-U01-S07ZAR Motorola Cable, USB Cable, 7 ft. (2m) Straight, Series A Connector. Ships Free Today $25.50
Retail $27
20-85342-01 Symbol Picture Stand, Megapixel, for DS6707 Ships Free Today $131.25
Retail $199
Save 34%
20-67176-01R Symbol Gray universal desktop holder
Ships Free in 24-48 Hours
$23.20
20-66483-01R Symbol White intellistand assembly for the DS6xxx Ships Free Today $57.65
Retail $83
Save 30%
TSP-US-SC-3 BCI Service Contracts, True Support Contract 3-year - Scanners Includes Tier 1 and Tier 2 Technical Helpdesk Support 7:30am-cst-5:00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $48 per year for 3 years, billed annually.
Ships Free in 24-48 Hours
$48.00
SSS-DS670X-50 Symbol Service Contract - 5 year, Zebra OneCare Select. Includes Comprehensive coverage. Check datasheet for regional availability.
Ships Free in 24-48 Hours
$44.40
Retail $53.90
Save 17%

The Symbol DS6707-DC20001ZZR is also known as Symbol Technologies SYM-DS6707DC20001ZZR or DS6707DC20001ZZR .
