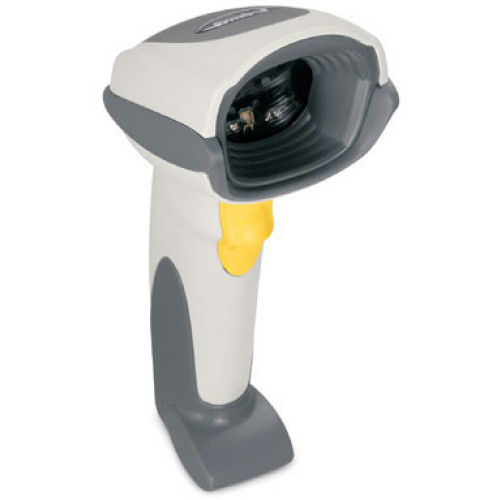

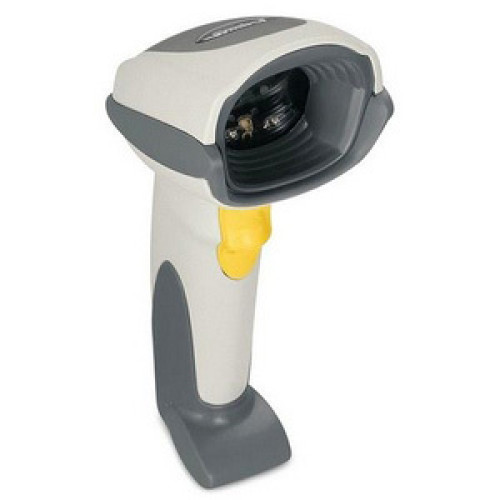

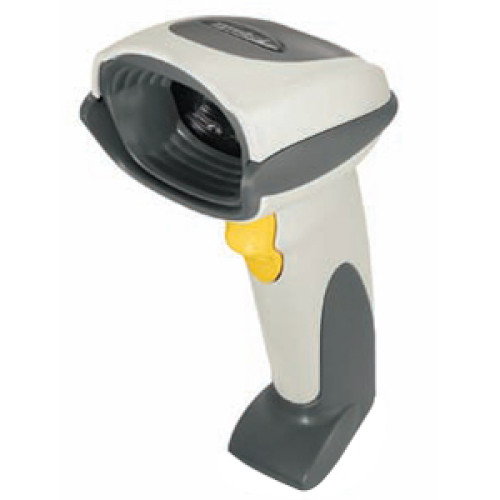

DS6707-HD20001ZZR - Symbol DS 6707 Bar code Scanner

The Symbol DS 6707 helps maximize employee productivity and streamline business processes in the retail store, at the post office, in the pharmacy and on the manufacturing floor. With the DS 6707, you get the power of a barcode scanner, digital camera and document scanner in a single, cost-effective device. From point-and-shoot simplicity to extremely reliable barcode scanning and the ability to scan full size documents including fine print the DS 6707 is the right tool for the job. A wide range of connection options makes the Symbol DS 6707 the right choice for any application.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
DS6707-HD20001ZZR DS 6707, SCANNER ONLY, 2D Imager, High Density. Cables and accessories must be purchased separately. Color: White.
Ships Free in 3-5 Days
$572.40
Information:   |  Specifications  |  Symbol's DS 6707 page  |
Accessories:   |  Accessories/Options  |  Symbol DS 6707 service contract  |

DS6707-HD20001ZZR Details

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1-D:
    • UPC/EAN and with supplementals
    • Code 39
    • Code 39 Full
    • ASCII
    • Tri-optic Code 39
    • RSS variants
    • UCC/EAN 128
    • Code 128
    • Code 128 Full ASCII
    • Code 93
    • Codabar (NW1)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • MSI
    • Codell
    • IATA
    • Bookland EAN
    • Code 32
    • PDF417 (and Variants):
    • PDF417
    • microPDF417 and composite codes
    • Postal:
    • U.S. Postnet and Planet
    • U.K.
    • Japan
    • Australian
    • Dutch
    • 2-D:
    • MaxiCodde
    • DataMatrix (ECC 200)
    • QR Code
    • 1-D:
    • UPC/EAN and with supplementals
    • Code 39
    • Code 39 Full
    • ASCII
    • Tri-optic Code 39
    • RSS variants
    • UCC/EAN 128
    • Code 128
    • Code 128 Full ASCII
    • Code 93
    • Codabar (NW1)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • MSI
    • Codell
    • IATA
    • Bookland EAN
    • Code 32
    • PDF417 (and Variants):
    • PDF417
    • microPDF417 and composite codes
    • Postal:
    • U.S. Postnet and Planet
    • U.K.
    • Japan
    • Australian
    • Dutch
    • 2-D:
    • MaxiCodde
    • DataMatrix (ECC 200)
    • QR Code
  • Depth of Field:
    • 0.84" - 2.42"@3 mil - Code 39
    • 0.42" - 3.13"@4 mil - Code 39
    • 0.29" - 3.38"@5 mil - Code 39
    • 4.38"@7.50 mil - Code 39
    • 0.59" - 4.96"@10 mil - Code 39
    • 0.42" - 8.21"@20 mil - Code 39
    • 0.21" - 5.13"@13 mil - 100% UPC
    • 0.63" - 3.10"@6.67 mil - PDF417
    • 0.46" - 3.54"@10 mil - PDF417
    • 1.33" - 4.46"@15 mil - PDF417
    • 1.04" - 2.13"@4 mil - Data Matrix
    • 0.79" - 2.50"@5 mil - Data Matrix
    • 0.50" - 3"@7.50 mil - Data Matrix
    • 0.54" - 3.50"@10 mil - Data Matrix
    • 1.13" - 2.17"@4 mil - QR Code
    • 0.88" - 2.54"@5 mil - QR Code
    • 0.67" - 3"@7.50 mil - QR Code
    • 0.46" - 3.42"@10 mil - QR Code

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: DS6707
  • Product Name: Symbol DS6707 Barcode Reader
  • Product Line: Symbol

Physical Characteristics

  • Height: 6.6"
  • Width: 2.8"
  • Depth: 4.7"
  • Color: White
  • Weight (Approximate): 6.40 oz

Interfaces/Ports

  • Host Interface:
    • Serial
    • USB

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS

Warranty

  • Limited Warranty: 5 Year
Part # Description Availability Price Order
CBA-U09-C15ZAR Symbol Cable, 15', Coiled, standard USB cable, Series A. Ships Free Today $61.84
Retail $90
Save 31%
CBA-U01-S07ZAR Motorola Cable, USB Cable, 7 ft. (2m) Straight, Series A Connector. Ships Free Today $25.50
Retail $27
20-85342-01 Symbol Picture Stand, Megapixel, for DS6707
Ships Free in 3-5 Days
$130.83
Retail $199
Save 34%
20-70738-02R Symbol Black gooseneck stand assembly for DS6xxx Ships Free Today $41.58
Retail $55
Save 24%
20-67176-01R Symbol Gray universal desktop holder Ships Free Today $23.20
20-66483-01R Symbol White intellistand assembly for the DS6xxx Ships Free Today $57.65
Retail $83
Save 30%
TSP-US-SC-3 BCI Service Contracts, True Support Contract 3-year - Scanners Includes Tier 1 and Tier 2 Technical Helpdesk Support 7: 30am-cst-5: 00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $48 per year for 3 years, billed annually.
Ships Free in 3-5 Days
$48.00
SSS-DS670X-50 Symbol Service Contract - 5 year, Zebra OneCare Select. Includes Comprehensive coverage. Check datasheet for regional availability.
Ships Free in 3-5 Days
$44.40
Retail $53.90
Save 17%

The Symbol DS6707-HD20001ZZR is also known as Symbol Technologies SYM-DS6707HD20001ZZR or DS6707HD20001ZZR .
