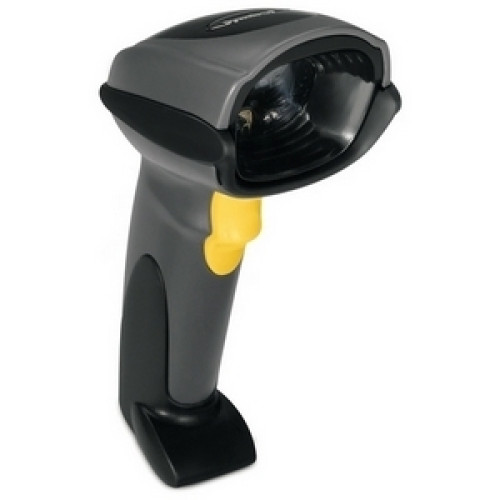

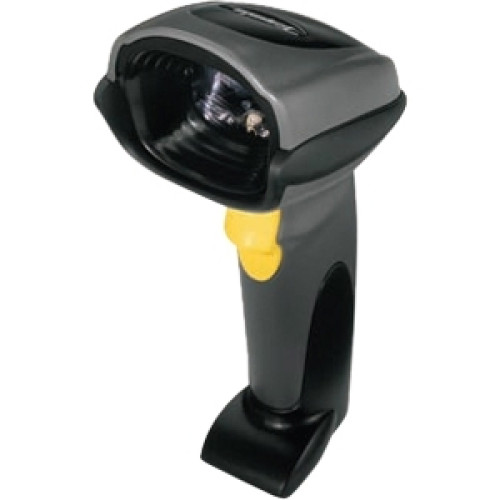

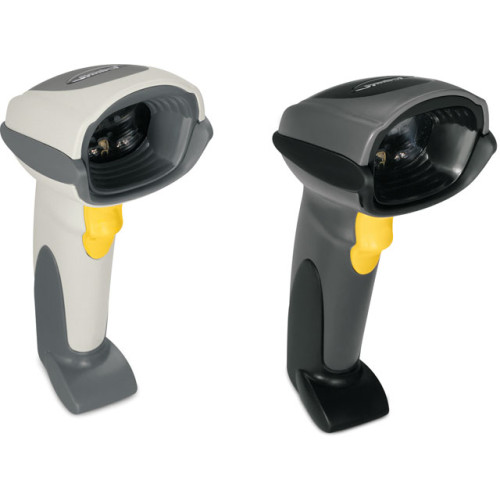

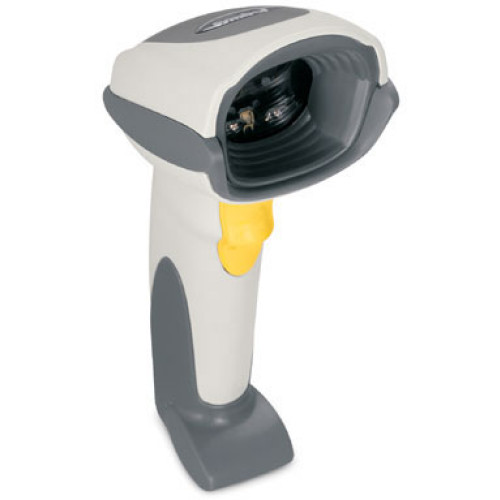

Symbol DS6708 Barcode Scanner
Part #: DS6708-SR20001ZZR | SKU: SYM21070

The Motorola DS6708 helps maximize employee productivity and streamline business processes in the retail store, at the post office, in the pharmacy and on the manufacturing floor. With the DS6708, you get the power of a barcode scanner and a 1.3 megapixel digital camera in a single, cost-effective device. From point-and-shoot simplicity to extremely reliable barcode scanning and the ability to scan fine print the DS6708 is the right tool for the job. A wide range of connection options makes the Motorola DS6708 the right choice for any application.

Symbol DS6708 Barcode Scanner

Part Details: DS6708, SCANNER ONLY, 2D Imager. Cables and accessories sold separately. Color: White.

Additional Information

Color White
Connection USB
Connectivity Corded
Form Factor Handheld
Included Cables Scanner Only - No Cable
Manufacturer Symbol
Model Name DS6708
Ruggedness General Purpose
Scan Pattern Area
Scanner Capability 2D
Scanner Type Imager

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • UPC/EAN with Supplementals
    • UPC/EAN
    • Code 39
    • Code 39 Full ASCII
    • Trioptic Code 39
    • RSS Variants
    • UCC/EAN 128
    • Code 128
    • Code 128 Full ASCII
    • Code 93
    • Codabar (NW1)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • MSI
    • Code ll
    • IATA
    • Bookland EAN
    • Code 32
    • PDF 417
    • Macro Micro PDF-417
    • Composite Codes
    • U.S. Postnet
    • U.S. Planet
    • U.K. Postal
    • Japanese Post
    • Australian Post
    • Dutch Postal
    • MaxiCode
    • DataMatrix
    • QR Code
    • UPC/EAN with Supplementals
    • UPC/EAN
    • Code 39
    • Code 39 Full ASCII
    • Trioptic Code 39
    • RSS Variants
    • UCC/EAN 128
    • Code 128
    • Code 128 Full ASCII
    • Code 93
    • Codabar (NW1)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • MSI
    • Code ll
    • IATA
    • Bookland EAN
    • Code 32
    • PDF 417
    • Macro Micro PDF-417
    • Composite Codes
    • U.S. Postnet
    • U.S. Planet
    • U.K. Postal
    • Japanese Post
    • Australian Post
    • Dutch Postal
    • MaxiCode
    • DataMatrix
    • QR Code
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 1.10" - 6.50"@5 mil - Code 39
    • 0.50" - 9.70"@13 mil - 100% UPC/EAN
    • 0.50" - 15.20"@20 mil - Code 39
    • 0.90" - 7"@10 mil - PDF417
    • 1.10" - 7.50"@10 mil - Data Matrix

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: DS6708
  • Product Name: DS6708 Barcode Reader

Physical Characteristics

  • Height: 6.6"
  • Width: 2.8"
  • Depth: 4.7"
  • Color: White
  • Weight (Approximate): 6.40 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • Electrical Safety:
    • UL6950-1
    • CSA C22.2 No. 60950-1
    • EN60950-1 / IEC60950-1
    • Laser Safety:
    • EN60825-1:1994 +A1: 2002 +A2 :2001
    • IEC60825-1
    • IEC60825-21CFR1040.10
    • IEC6082521-CFR1040.11
    • CDRH Class II
    • IEC Class 2
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES-003 Class B
    • CISPR 22
    • CISPR 24
    • Medical electrical equipment:
    • EN60001-1-2: 2002
    • Environmental:
    • RoHS directive 2002/95/EEC
  • Additional Information:
    • Supported Interfaces:
    • Serial
    • USB
    • IBM 468X/469X
    • Keyboard Wedge

Warranty

  • Limited Warranty: 5 Year

Power Description

  • Input Voltage: 5 V DC
Extended Details

Recommended Accessories for Model: Symbol DS6708 Barcode Scanner

  • Zebra ET1 Enterprise Power Device
    Part #: 23844-00-00R | SKU: ZEB26223

    US AC Line Cord, Grounded, 7.5', Three wire for power supplies.
    Price: $18.51
    In Stock
  • Zebra Cables Accessory
    Part #: CBA-U15-S15ZAR | SKU: ZEB29346

    15' USB Power Plus cable, Straight, RoHS (PowerPlus USB is non-standard, please call for more information.)
    MSRP: $69.42 Price: $51.65
    In Stock
  • Zebra Cables Accessory
    Part #: CBA-U03-S07ZAR | SKU: ZEB26307

    Cable, USB, Power Plus connector, 7 ft, Straight.
    MSRP: $51.14 Price: $39.31
    In Stock
  • Zebra LS 3408 Accessory
    Part #: CBA-R02-C09PAR | SKU: ZEB20870

    Cable Assembly (9 Feet, Coiled, RS232, STD-DB9 Female, TXD on 2). Required power supply not included, see (Part# PWRS-14000-253R).
    MSRP: $45.06 Price: $35.82
    In Stock
  • Zebra DS 6607 Accessory
    Part #: 11-66553-06R | SKU: ZEB26187

    Wall mount bracket for several Motorola DS and LS barcode scanners. Color: Gray.
    MSRP: $45.06 Price: $35.82
    In Stock
