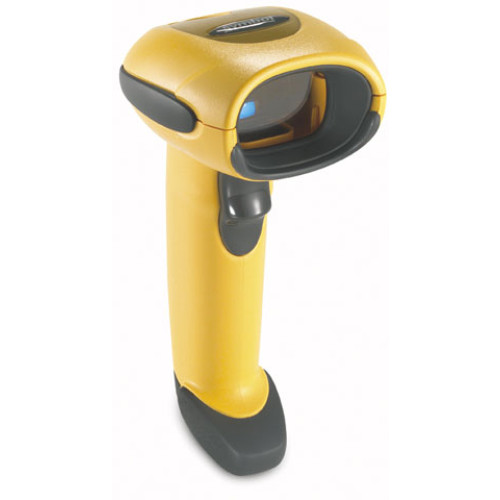

LS3008-SR20005ZZR - Symbol LS 3008 Bar code Scanner

The Symbol LS 3008 laser handheld scanner accelerates throughput with productivity-enhancing features such as Multi-Line Rastering and Superior Motion Tolerances. It offers continuous, one-pass scanning, allowing novice and advanced users alike to process more items more rapidly and spend less time keying in data. With its innovative multi-line rastering scan pattern, the LS 3008 enables the quick and accurate scanning of all types of one-dimensional (1D) symbologies, including damaged symbols. It also provides a wide working range and superior motion tolerance to increase scanning flexibility and performance.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
LS3008-SR20005ZZR LS 3008, SCANNER ONLY, 1D Laser. Cables must be purchased separately. See accessories.
Information:   |  Specifications  |  Symbol's LS 3008 page  |
Accessories:   |  Accessories/Options  |  Symbol LS 3008 service contract  |

LS3008-SR20005ZZR Details

Technical Information

  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • UPC/EAN with Supplementals
    • Code 39
    • Code 39 Full ASCII
    • Trioptic Code 39
    • RSS Variants
    • UCC/EAN 128
    • Code 128
    • Code 128 Full ASCII
    • Codabar (NW1)
    • Code 93
    • Discrete 2 of 5
    • Interleaved 2 of 5
    • Code ll
    • IATA
    • Bookland EAN
    • Code 32
    • UPC/EAN with Supplementals
    • Code 39
    • Code 39 Full ASCII
    • Trioptic Code 39
    • RSS Variants
    • UCC/EAN 128
    • Code 128
    • Code 128 Full ASCII
    • Codabar (NW1)
    • Code 93
    • Discrete 2 of 5
    • Interleaved 2 of 5
    • Code ll
    • IATA
    • Bookland EAN
    • Code 32
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 0 mil - 19"@13 mil - 100% UPC/EAN
    • 1.25" - 5.25"@5 mil - Code 39

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: LS3008
  • Product Name: Symbol LS3008 Barcode Reader
  • Product Line: Symbol
  • Package Type: Retail

Physical Characteristics

  • Height: 6.7"
  • Width: 2.7"
  • Depth: 3.7"
  • Color:
    • Yellow
    • Black
  • Weight (Approximate): 6.40 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Package Contents:
    • LS3008 Hand Held Barcode Reader
    • Quick Start Guide
    • LS3008 Hand Held Barcode Reader
    • Quick Start Guide
  • Certifications & Standards:
    • Electrical Safety:
    • UL 1950
    • CSA C22.2 No. 950
    • EN60950/IEC950
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA
    • Laser Safety:
    • IEC Class 2
    • CDRH Class II
  • Additional Information:
    • Supported Interfaces:
    • Serial
    • IBM 468X/469X
    • Keyboard Wedge
    • USB
    • Laser Emulation
    • Wand Emulation
    • Synapse

Warranty

  • Limited Warranty: 3 Year

Power Description

  • Input Voltage: 5.5 V DC
Part # Description Availability Price Order
CBA-U01-S07ZAR Motorola Cable, USB Cable, 7 ft. (2m) Straight, Series A Connector. Ships Free Today $25.50
Retail $27
20-70774-02R Symbol Twilight black intellistand for the LS4200, DS4200 and LS3008 Ships Free Today $43.87
Retail $59
Save 25%
TSP-US-SC-3 BCI Service Contracts, True Support Contract 3-year - Scanners Includes Tier 1 and Tier 2 Technical Helpdesk Support 7:30am-cst-5:00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $48 per year for 3 years, billed annually.
Ships Free in 3-5 Days
$48.00
SSS-LS3008-30 Symbol Service Contract - 3 year, Zebra OneCare Select. Includes Comprehensive coverage. Check datasheet for regional availability.
Ships Free in 3-5 Days
$36.05
Retail $40.70
Save 11%

The Symbol LS3008-SR20005ZZR is also known as Symbol Technologies SYM-LS3008SR20005ZZR or LS3008SR20005ZZR .
