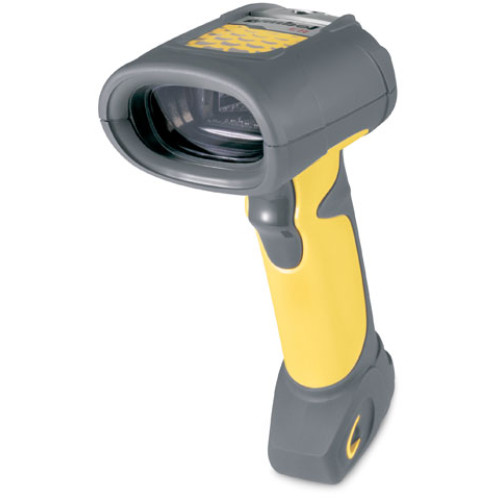

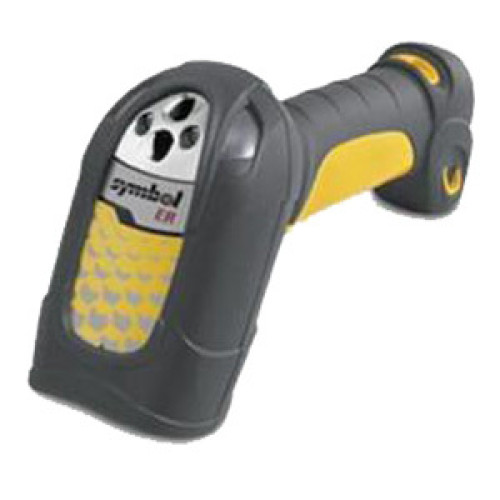

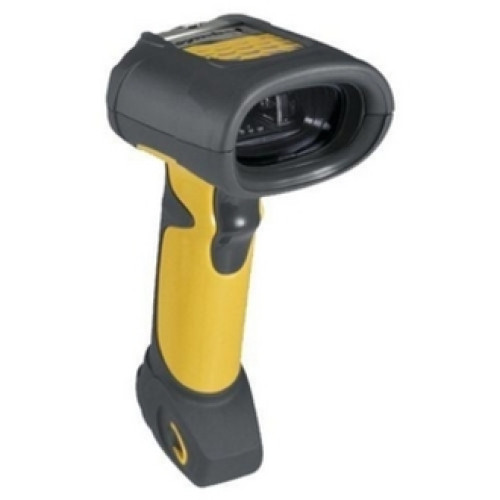

LS3408-ER20005 - Symbol LS 3408ER, LS 3408 Series Bar code Scanner

The LS 3408ER, LS 3408 Series can read bar codes from as far away as 45 feet (14.6 meters) and as close as 5 inches (13 cm) to give you the kind of versatility that's necessary for today's industrial applications. The rugged housing, sealed to IP65 standards, withstands repeated drops of up to 6.5 feet (2 meters) to concrete, ensuring limited downtime. A variety of interface options makes connecting to existing systems fast and easy.

Part # Description Availability Price Order
LS3408-ER20005 LS 3408 ER, SCANNER ONLY, 1D Laser, Extended Range. Cables and accessories must be purchased separately. See accessories.

LS3408-ER20005 Details

Technical Information

  • Scan Rate: 36 scan/s
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • UPC/EAN
    • UCC/EAN 128
    • JAN-13
    • JAN-8
    • Code 39
    • Code 39 Full ASCII
    • Trioptic Code 39
    • Code 128
    • Code 128 Full ASCII
    • Codabar (NW7)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • Code 11
    • Bookland EAN
    • IATA
    • UCC/EAN
    • RSS
    • RSS Variants
    • Code 32
    • UPC/EAN
    • UCC/EAN 128
    • JAN-13
    • JAN-8
    • Code 39
    • Code 39 Full ASCII
    • Trioptic Code 39
    • Code 128
    • Code 128 Full ASCII
    • Codabar (NW7)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • Code 11
    • Bookland EAN
    • IATA
    • UCC/EAN
    • RSS
    • RSS Variants
    • Code 32
  • Maximum Scan Resolution: 7 mil
  • Depth of Field: 0 mil - 45 ft@100 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: LS3408-ER
  • Product Name: Symbol LS3408-ER Barcode Reader
  • Product Line: Symbol

Physical Characteristics

  • Height: 7.3"
  • Width: 4.8"
  • Depth: 2.9"
  • Color:
    • Yellow
    • Black
  • Weight (Approximate): 12.56 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Package Contents:
    • LS3408-ER Barcode Reader
    • Quick Start Guide
    • LS3408-ER Barcode Reader
    • Quick Start Guide
  • Certifications & Standards:
    • Input Transient Protection:
    • IEC 1000-4-(2,3,4,5,6,11)
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Japan VCCI/MITI/Dentori
    • Laser Safety:
    • IEC825-1 Class 2
  • Additional Information:
    • Supported Interfaces:
    • Serial
    • Keyboard Wedge
    • IBM 468X/469X
    • USB
    • Wand Emulation

Warranty

  • Limited Warranty: 3 Year
Part # Description Availability Price Order
CBA-U01-S07ZAR Motorola Cable, USB Cable, 7 ft. (2m) Straight, Series A Connector. Ships Free Today $25.38
Retail $27
CBA-U01-S07ZAR Motorola Cable, USB Cable, 7 ft. (2m) Straight, Series A Connector. Ships Free Today $25.38
Retail $27
BCISC-LS3408ER BCI 3-Year Extended Warranty Plus, Rest easy with 3 years of technical support and quick replacements on your purchase. You get dedicated technical support specialists 8am-6pm CT, Monday-Friday and quick (overnight turnaround) replacements for products damaged by regular use or accidental breakage. Ships Free Today $64.90

The Symbol LS3408-ER20005 is also known as Symbol Technologies SYM-LS3408ER20005 or LS3408ER20005 .
