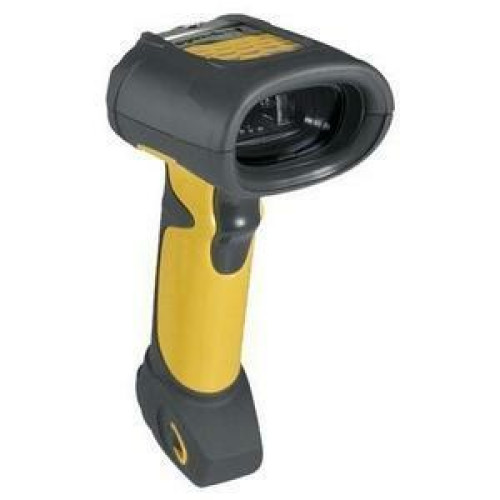

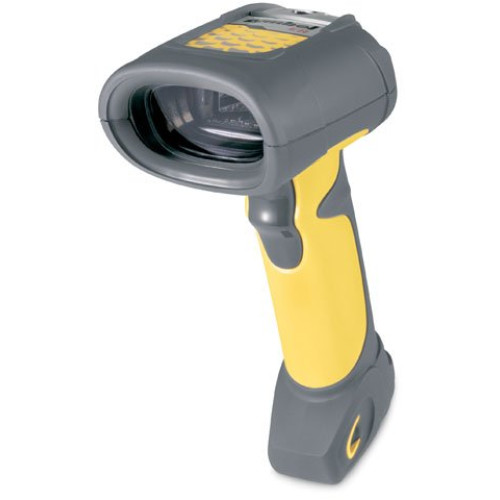

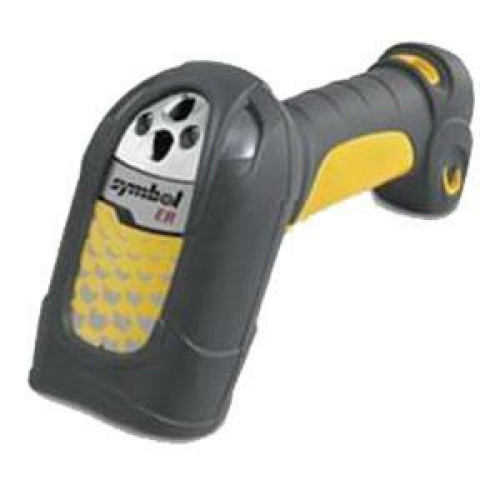

LS3408-FZ20135R - Symbol LS 3408FZ, LS 3408 Series Bar code Scanner

The LS 3408FZ, LS 3408 Series uses fuzzy logic technology to interpret bar codes that have been damaged or soiled to give you the kind of versatility that's necessary for today's industrial applications. The rugged housing, sealed to IP65 standards, withstands repeated drops of up to 6.5 feet (2 meters) to concrete, ensuring limited downtime. The rugged LS 3408FZ, LS 3408 Series FZ handheld scanner from Symbol features fuzzy logic technology for fast and accurate reading of damaged, dirty and poorly printed one-dimensional (1D) bar codes typically found in industrial environments.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
LS3408-FZ20135R LS3408FZ, SCANNER ONLY, 1D Laser, Fuzzy logic. Cables and accessories must be purchased separately. This part is custom configured for CL2/Intel, please call for details.
Ships Free in 24-48 Hours
$575.00

LS3408-FZ20135R Details

Technical Information

  • Barcode Dimension: 1D
  • Scan Rate: 36 scan/s
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • UPC/EAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • JAN-8
    • JAN-13
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Code 128
    • Code 128 Full ASCII
    • Codabar (NW7)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • Code 11
    • Code 32
    • Bookland EAN
    • IATA
    • UCC/EAN RSS
    • UCC/EAN RSS Variants
    • UPC/EAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • JAN-8
    • JAN-13
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Code 128
    • Code 128 Full ASCII
    • Codabar (NW7)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • Code 11
    • Code 32
    • Bookland EAN
    • IATA
    • UCC/EAN RSS
    • UCC/EAN RSS Variants
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 2.50" - 7.25"@5 mil
    • 2" - 15.25"@7.50 mil
    • 1" - 24"@13 mil - 100% UPC
    • 2" - 67"@40 mil
    • 4" - 84"@55 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: LS3408-FZ
  • Product Name: Symbol LS3408-FZ Barcode Reader
  • Product Line: Symbol

Physical Characteristics

  • Height: 7.3"
  • Width: 4.8"
  • Depth: 2.9"
  • Color: Yellow
  • Weight (Approximate): 12.35 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Certifications & Standards:
    • Input Transient Protection:
    • IEC 1000-4-2
    • IEC 1000-4-3
    • IEC 1000-4-4
    • IEC 1000-4-5
    • IEC 1000-4-6
    • IEC 1000-4-11
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Japan VCCI/MITI/Dentori
    • Laser Safety:
    • IEC825-1 Class 2
  • Additional Information:
    • Supported Interfaces:
    • Serial
    • Keyboard Wedge
    • IBM 468X/469X
    • USB
    • Wand Emulation
    • Scanner Emulation

Warranty

  • Limited Warranty: 3 Year

Power Description

  • Input Voltage: 14 V DC
Part # Description Availability Price Order
CBA-U01-S07ZAR Motorola Cable, USB Cable, 7 ft. (2m) Straight, Series A Connector. Ships Free Today $25.50
Retail $27
50-15400-031 Symbol Tool Balancer: Pulley 10' Cable Ships Free Today $98.46
Retail $143
Save 31%
TSP-US-SC-3 BCI Service Contracts, True Support Contract 3-year - Scanners Includes Tier 1 and Tier 2 Technical Helpdesk Support 7:30am-cst-5:00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $48 per year for 3 years, billed annually.
Ships Free in 24-48 Hours
$48.00
SSS-LS3408-30 Motorola Service Contract - 3 year, Zebra OneCare Select. Includes Comprehensive coverage. Check datasheet for regional availability.
Ships Free in 24-48 Hours
$64.90

The Symbol LS3408-FZ20135R is also known as Symbol Technologies SYM-LS3408FZ20135R or LS3408FZ20135R .
