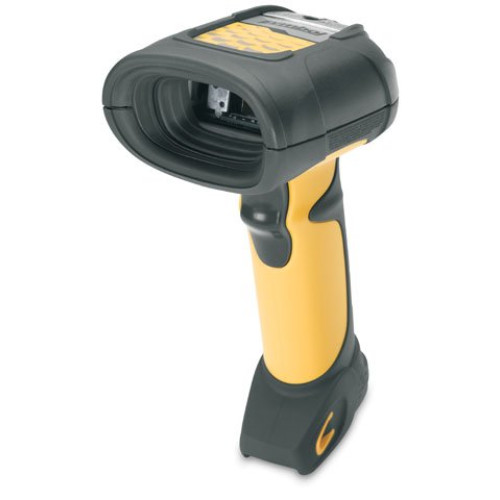

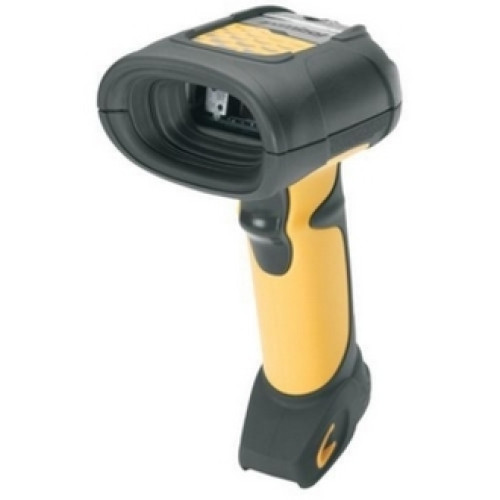

LS3478-ER20005WR - Symbol LS3478 ER Bar code Scanner

The Symbol LS3478 ER is a new, rugged wireless bar code scanner with extended range capabilities, meaning bar codes can be read from up to 45 feet away. Warehouses, industrial facilities and retail stockrooms require higher standards of dirt and moisture protection, so the LS3478 ER was designed with an IP65-rated seal, keeping the electronics performing properly for years. The LS3478 ER reads all linear bar code, has a comfortable grip and features both bright LED and beeper positive scan notifications - never worry you missed a scan again!

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
LS3478-ER20005WR LS3478 ER, Scanner only (Bluetooth, Extra Range, M-Interface, Cordless Scanner and CL 2) - Color: Yellow. Cradle and cables not included. See accessories.
Information:   |  Specifications  |
Accessories:   |  Accessories/Options  |

LS3478-ER20005WR Details

Technical Information

  • Barcode Dimension: 1D
  • Scan Rate: 36 scan/s
  • Connectivity Technology: Wireless
  • Scanning Distance: 328.08 ft
  • Light Source: Laser
  • Barcode Symbology Supported:
    • UPC/EAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • JAN-8
    • JAN-13
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Code 128 Full ASCII
    • Codabar (NW7)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • Code 11
    • Code 32
    • Bookland EAN
    • IATA
    • UCC/EAN RSS Variants
    • RSS Variants
    • Code 128
    • UPC/EAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • JAN-8
    • JAN-13
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Code 128 Full ASCII
    • Codabar (NW7)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • Code 11
    • Code 32
    • Bookland EAN
    • IATA
    • UCC/EAN RSS Variants
    • RSS Variants
    • Code 128
  • Maximum Scan Resolution: 7.50 mil
  • Depth of Field:
    • 0.25" - 20"@7.50 mil
    • 2" - 32"@10 mil
    • 3" - 69"@15 mil
    • 3" - 94"@20 mil
    • 15" - 15 ft@55 mil
    • 0 mil - 30.42 ft@70 mil
    • 0 mil - 45 ft@100 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: LS3478-ER
  • Product Name: Symbol LS3478-ER Barcode Reader
  • Product Line: Symbol

Physical Characteristics

  • Height: 7.3"
  • Width: 4.8"
  • Depth: 2.9"
  • Color:
    • Yellow
    • Black
  • Weight (Approximate): 14.80 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • RoHS Compliant
    • Input Transient Protection:
    • IEC 1000-4-(2,3,4,5,6,11)
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Japan VCCI/MITI/Dentori
    • Laser Safety:
    • IEC825-1 Class 2
  • Additional Information:
    • Supported Interfaces:
    • Serial
    • Keyboard Wedge
    • Wand Emulation
    • IBM 468X/469X
    • USB
    • Synapse

Warranty

  • Limited Warranty: 3 Year

Network & Communication

  • Bluetooth: Yes
Part # Description Availability Price Order
CBA-U01-S07ZAR Motorola Cable, USB Cable, 7 ft. (2m) Straight, Series A Connector. Ships Free Today $25.50
Retail $27
CBA-T13-C09ZAR Symbol Cable, (9 feet, Coiled, RS-232) for the VRC 7900/8900. Ships Free Today $57.65
Retail $83
Save 30%
CBA-R02-C09PAR Symbol Cable, Assembly (9 feet, Coiled, RS-232, STD-DB9 Female, TXD on 2). Required power supply not included, see (Part# PWRS-14000-253R). Ships Free Today $28.37
Retail $32
Save 11%
CBA-K06-C12PAR Symbol Cable, 12 feet, Keyboard wedge, PS/2, Power Port and Coiled
Ships Free in 24-48 Hours
$44.56
Retail $60
Save 25%
BTRY-LS34IAB00-00 Symbol Spare battery for LS3478, LS3578, DS3478 and DS3578 Ships Free Today $38.80
Retail $50
Save 22%
50-15400-031 Symbol Tool Balancer: Pulley 10' Cable Ships Free Today $98.46
Retail $143
Save 31%
11-35035-01R Symbol Industrial Scanner Holster for the Phaser, 3408, 3478 and 3578 Ships Free Today $47.89
Retail $66
Save 27%
TSP-US-SC-3 BCI Service Contracts, True Support Contract 3-year - Scanners Includes Tier 1 and Tier 2 Technical Helpdesk Support 7:30am-cst-5:00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $48 per year for 3 years, billed annually.
Ships Free in 24-48 Hours
$48.00
TSP-US-SC-2 BCI Service Contracts, True Support contract 2-year - Scanners Includes Tier 1 and Tier 2 Technical Helpdesk Support 7:30am-cst-5:00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $54 per year for 2 years, billed annually.
Ships Free in 24-48 Hours
$54.00
SSB-LS3478-30 Symbol Service Plan, 3-day depot service plan including all parts, labor, and priority technical support. 3-year service plan for the LS3478.
Ships Free in 24-48 Hours
$72.00
SSB-LS3478-20-R Symbol Service Plan, RENEWAL-SERVICE FROM THE START SERVICE CENTER BRONZE 2 YR
Ships Free in 24-48 Hours
$130.00

The Symbol LS3478-ER20005WR is also known as Symbol Technologies SYM-LS3478ER20005WR or LS3478ER20005WR .
