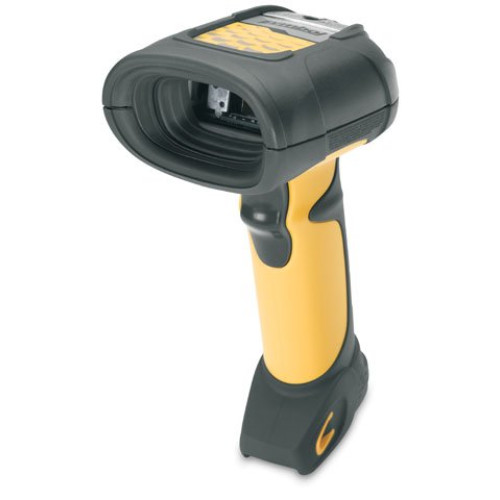

Photo of Symbol LS3478-FZ20005WR Symbol logo

Symbol LS3478 FZ

Scanner only (Bluetooth, FZY, M-Interface, Cordless Scanner and CL 2) - Color: Yellow. Cradle and cables not included. See accessories.

Scanner
This part is replaced by LS3578-FZ20005WR.
Call for Details



Symbol LS3478 FZ Scanner

Symbol's rugged LS3478 FZ cordless scanner provides fuzzy logic technology so you're able to rapidly and accurately read the often damaged, dirty and poorly printed one-dimensional (1D) bar codes found in your industrial environment. The LS3478 FZ features rugged construction, an IP 65 rated seal to keep out dust and water, and a comfortable hand grip that won't leave users tired. These features plus Symbol's dependable performance make the LS3478 FZ a perfect choice for any warehouse, industrial or stockroom application.

Full specifications (PDF)

Manufacturer part number: LS3478-FZ20005WR

Technical Information

  • Barcode Dimension: 1D
  • Scan Rate: 36 scan/s
  • Connectivity Technology: Wireless
  • Scanning Distance: 328.08 ft
  • Light Source: Laser
  • Barcode Symbology Supported:
    • UPC/EAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • JAN-8
    • JAN-13
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Code 128 Full ASCII
    • Codabar (NW7)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • Code 11
    • Code 32
    • Bookland EAN
    • IATA
    • UCC/EAN RSS Variants
    • RSS Variants
    • Code 128
    • UPC/EAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • JAN-8
    • JAN-13
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Code 128 Full ASCII
    • Codabar (NW7)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • Code 11
    • Code 32
    • Bookland EAN
    • IATA
    • UCC/EAN RSS Variants
    • RSS Variants
    • Code 128
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 2.50" - 7.50"@5 mil
    • 2" - 15.75"@7.50 mil
    • 1" - 24"@13 mil - 100% UPC
    • 0 mil - 39.50"@20 mil - 80% MRD
    • 0 mil - 26.50"@20 mil - 31% MRD
    • 2" - 67"@40 mil
    • 4" - 84"@55 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: LS3478-FZ
  • Product Name: Symbol LS3478-FZ Barcode Reader
  • Product Line: Symbol

Physical Characteristics

  • Height: 7.3"
  • Width: 4.8"
  • Depth: 2.9"
  • Color:
    • Yellow
    • Black
  • Weight (Approximate): 14.60 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • RoHS Compliant
    • Input Transient Protection:
    • IEC 1000-4-(2,3,4,5,6,11)
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Japan VCCI/MITI/Dentori
    • Laser Safety:
    • IEC825-1 Class 2
  • Additional Information:
    • Supported Interfaces:
    • Serial
    • Keyboard Wedge
    • Wand Emulation
    • IBM 468X/469X
    • USB
    • Synapse

Warranty

  • Limited Warranty: 3 Year

Network & Communication

  • Bluetooth: Yes
