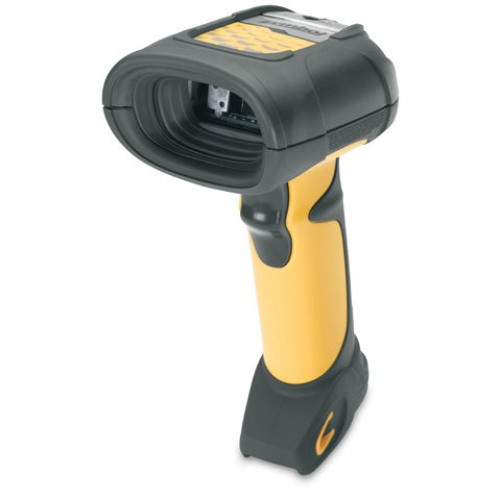

LS3478-FZ20005WW - Symbol LS3478 FZ Bar code Scanner

The Symbol LS3478 FZ is a new, rugged wireless bar code scanner with fuzzy logic technology, which allows reading of soiled, smudged or otherwise damaged bar codes. Warehouses, industrial facilities and retail stockrooms require higher standards of dirt and moisture protection, so the LS3478 FZ was designed with an IP65-rated seal, keeping the electronics performing properly for years. The LS3478 FZ reads all linear bar code, has a comfortable grip and features both bright LED and beeper positive scan notifications - never worry you missed a scan again!

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
LS3478-FZ20005WW LS3478 FZ, Scanner only (Bluetooth, FZY, M-Interface, Cordless Scanner and CL 2) - Color: Yellow. Cradle and cables not included. See accessories.
Information:   |  Specifications  |
Accessories:   |  No accessories available  |  Symbol LS3478 FZ service contract  |

LS3478-FZ20005WW Details

Technical Information

  • Barcode Dimension: 1D
  • Scan Rate: 36 scan/s
  • Connectivity Technology: Wireless
  • Scanning Distance: 328.08 ft
  • Light Source: Laser
  • Barcode Symbology Supported:
    • Bookland EAN
    • Codabar
    • Code 11
    • Code 32
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Code 93
    • Code 128
    • Code 128 Full ASCII
    • Discrete 2 of 5
    • Interleaved 2 of 5
    • IATA
    • JAN-8
    • JAN-13
    • MSI
    • RSS Variants
    • UCC/EAN 128
    • UCC/EAN RSS
    • UPC/EAN
    • UPC/EAN Supplementals
    • Bookland EAN
    • Codabar
    • Code 11
    • Code 32
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Code 93
    • Code 128
    • Code 128 Full ASCII
    • Discrete 2 of 5
    • Interleaved 2 of 5
    • IATA
    • JAN-8
    • JAN-13
    • MSI
    • RSS Variants
    • UCC/EAN 128
    • UCC/EAN RSS
    • UPC/EAN
    • UPC/EAN Supplementals
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 2.50" - 7.25"@5 mil
    • 2" - 15.75"@7.50 mil
    • 1" - 24"@13 mil
    • 0 mil - 39.50"@20 mil - 80% MRD
    • 0 mil - 26.50"@20 mil - 31% MRD
    • 2" - 67"@40 mil
    • 4" - 84"@55 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: LS3478-FZ
  • Product Name: Symbol LS3478-FZ Barcode Reader
  • Product Line: Symbol

Physical Characteristics

  • Height: 7.3"
  • Width: 4.8"
  • Depth: 2.9"
  • Color:
    • Black
    • Yellow
  • Weight (Approximate): 14.60 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Package Contents:
    • LS3478-FZ Cordless Barcode Reader
    • Quick Start Guide
    • LS3478-FZ Cordless Barcode Reader
    • Quick Start Guide
  • Certifications & Standards:
    • Input Transient Protection:
    • IEC 1000-4-(2,3,4,5,6,11)
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Japan VCCI/MITI/Dentori
    • Laser Safety:
    • IEC825-1 Class 2
  • Additional Information:
    • Supported Interfaces:
    • Serial
    • Keyboard Wedge
    • Wand Emulation
    • IBM 468X/469X
    • USB
    • Synapse

Network & Communication

  • Bluetooth: Yes

Warranty

  • Limited Warranty: 3 Year

Battery Information

  • Battery Chemistry: Lithium Ion (Li-Ion)
Part # Description Availability Price Order
CBA-U01-S07ZAR Motorola Cable, USB Cable, 7 ft. (2m) Straight, Series A Connector. Ships Free Today $25.50
Retail $27
CBA-T13-C09ZAR Symbol Cable, (9 feet, Coiled, RS-232) for the VRC 7900/8900. Ships Free Today $57.65
Retail $83
Save 30%
CBA-R02-C09PAR Symbol Cable, Assembly (9 feet, Coiled, RS-232, STD-DB9 Female, TXD on 2). Required power supply not included, see (Part# PWRS-14000-253R). Ships Free Today $28.37
Retail $32
Save 11%
CBA-K06-C12PAR Symbol Cable, 12 feet, Keyboard wedge, PS/2, Power Port and Coiled Ships Free Today $44.56
Retail $60
Save 25%
BTRY-LS34IAB00-00 Symbol Spare battery for LS3478, LS3578, DS3478 and DS3578 Ships Free Today $38.71
Retail $50
Save 22%
50-15400-031 Symbol Tool Balancer: Pulley 10' Cable Ships Free Today $98.14
Retail $143
Save 31%
50-14000-122R Symbol Power supply, 9-60VDC, 9VDC, 1A, SAE J1455 (For Use with Forklift Application). Ships Free Today $271.41
Retail $390
Save 30%
11-35035-01R Symbol Industrial Scanner Holster for the Phaser, 3408, 3478 and 3578 Ships Free Today $47.89
Retail $66
Save 27%
TSP-US-SC-3 BCI Service Contracts, True Support Contract 3-year - Scanners Includes Tier 1 and Tier 2 Technical Helpdesk Support 7: 30am-cst-5: 00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $48 per year for 3 years, billed annually.
Ships Free in 3-5 Days
$48.00
TSP-US-SC-2 BCI Service Contracts, True Support contract 2-year - Scanners Includes Tier 1 and Tier 2 Technical Helpdesk Support 7: 30am-cst-5: 00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $54 per year for 2 years, billed annually.
Ships Free in 3-5 Days
$54.00

The Symbol LS3478-FZ20005WW is also known as Symbol Technologies SYM-LS3478FZ or LS3478FZ20005WW .
