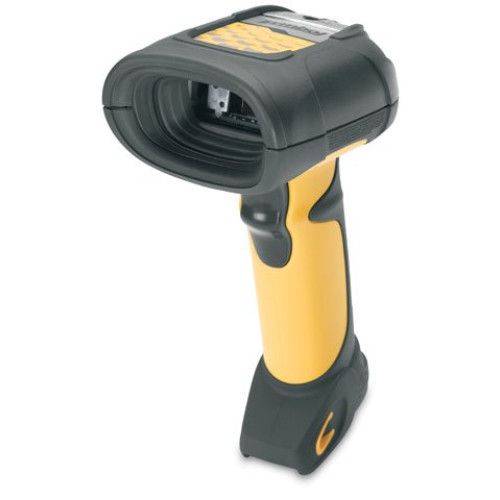

LS3478-FZBU0100U - Symbol LS3478 FZ Bar code Scanner

The Symbol LS3478 FZ is a new, rugged wireless bar code scanner with fuzzy logic technology, which allows reading of soiled, smudged or otherwise damaged bar codes. Warehouses, industrial facilities and retail stockrooms require higher standards of dirt and moisture protection, so the LS3478 FZ was designed with an IP65-rated seal, keeping the electronics performing properly for years. The LS3478 FZ reads all linear bar code, has a comfortable grip and features both bright LED and beeper positive scan notifications - never worry you missed a scan again!

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
LS3478-FZBU0100U LS3478 FZ, Scanner with Radio/Charging Cradle, 7 ft. Straight USB Cable and US Power supply.
Information:   |  Specifications  |
Accessories:   |  No accessories available  |  Symbol LS3478 FZ service contract  |

LS3478-FZBU0100U Details

Technical Information

  • Barcode Dimension: 1D
  • Scan Rate: 36 scan/s
  • Connectivity Technology: Wireless
  • Scanning Distance: 328.08 ft
  • Light Source: Laser
  • Barcode Symbology Supported:
    • UPC/EAN
    • UPC/EAN Supplementals
    • UCC/EAN 128
    • JAN-8
    • JAN-13
    • Code 39
    • Code 39 Full ASCII
    • Trioptic Code 39
    • Code 128
    • Code 128 Full ASCII
    • Codabar (NW7)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • Code 11
    • Code 32
    • Bookland EAN
    • IATA
    • UCC/EAN
    • RSS Variants
    • RSS
    • UPC/EAN
    • UPC/EAN Supplementals
    • UCC/EAN 128
    • JAN-8
    • JAN-13
    • Code 39
    • Code 39 Full ASCII
    • Trioptic Code 39
    • Code 128
    • Code 128 Full ASCII
    • Codabar (NW7)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • Code 11
    • Code 32
    • Bookland EAN
    • IATA
    • UCC/EAN
    • RSS Variants
    • RSS
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 2.50" - 7.25"@5 mil
    • 2" - 15.75"@7.50 mil
    • 1" - 24"@13 mil - 100% UPC
    • 0 mil - 39.50"@20 mil - 80% MRD
    • 0 mil - 26.50"@20 mil - 31% MRD
    • 2" - 67"@40 mil
    • 4" - 84"@55 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: LS3478-FZ
  • Product Name: Symbol LS3478-FZ Barcode Reader
  • Product Line: Symbol

Physical Characteristics

  • Height: 7.3"
  • Width: 4.8"
  • Depth: 2.9"
  • Color:
    • Black
    • Yellow
  • Weight (Approximate): 14.60 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Package Contents:
    • LS3478-FZ Barcode Reader
    • Radio/charging Cradle
    • 7ft straight USB Cable
    • Universal AC power supply
    • LS3478-FZ Barcode Reader
    • Radio/charging Cradle
    • 7ft straight USB Cable
    • Universal AC power supply
  • Certifications & Standards:
    • IEC 1000-4-(2,3,4,5,6,11)
    • EMI/RFI
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Japan VCCI/MITI/Dentori
    • Laser:
    • IEC825-1 Class 2
  • Additional Information:
    • Supported Interfaces:
    • Serial
    • Keyboard Wedge
    • Wand Emulation
    • IBM 468X/469X
    • USB
    • Synapse

Network & Communication

  • Bluetooth: Yes

Warranty

  • Limited Warranty: 3 Year

Power Description

  • Input Voltage: 14 V DC
Part # Description Availability Price Order
TSP-US-SC-3 BCI Service Contracts, True Support Contract 3-year - Scanners Includes Tier 1 and Tier 2 Technical Helpdesk Support 7:30am-cst-5:00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $48 per year for 3 years, billed annually.
Ships Free in 3-5 Days
$48.00
TSP-US-SC-2 BCI Service Contracts, True Support contract 2-year - Scanners Includes Tier 1 and Tier 2 Technical Helpdesk Support 7: 30am-cst-5: 00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $54 per year for 2 years, billed annually.
Ships Free in 3-5 Days
$54.00

The Symbol LS3478-FZBU0100U is also known as Symbol Technologies SYM-LS3478FZBU0100U or LS3478FZBU0100U .
