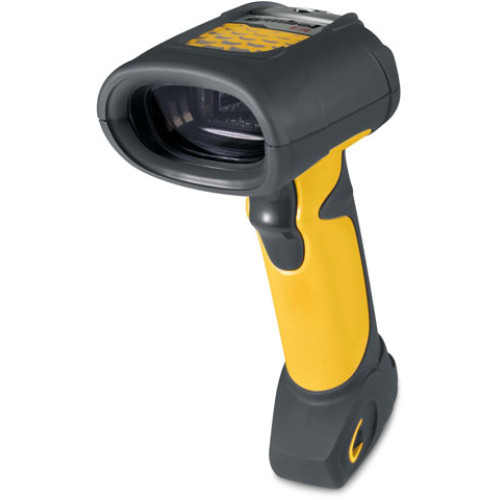

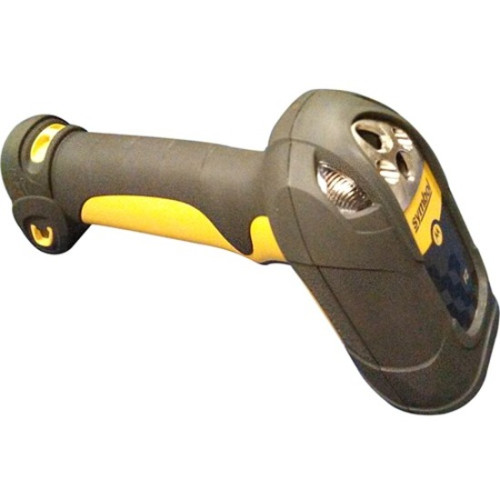

LS3578-FZ20005WR - Symbol LS 3578 FZ Bar code Scanner

Designed to meet the challenges of harsh manufacturing environments, the Symbol LS3578-FZ features fuzzy logic technology which allows first pass reads of nearly any 1D barcode, even when the barcode is dirty or damaged. Reliable and secure wireless data transmission between the scanner and host is guaranteed with integrated Bluetooth, while the 150 ft. (45 m) range allows operators to move freely without being restricted by a cord. A rugged, drop-resistant design and a sealed housing provide reliability with less accident-related equipment failure and downtime.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
LS3578-FZ20005WR LS 3578 FZ, SCANNER ONLY, 1D Laser, Cordless, Fuzzy Logic. Cables and accessories must be purchased separately. For the full kit purchase (Part# LS3578-FZBU0100UR). Ships Free Today $494.09
Retail $690
Save 28%
Information:   |  Specifications  |  Symbol's LS 3578 FZ page  |
Accessories:   |  Accessories/Options  |  Symbol LS 3578 FZ service contract  |

LS3578-FZ20005WR Details

Technical Information

  • Barcode Dimension: 1D
  • Scan Rate: 36 scan/s
  • Connectivity Technology: Wireless
  • Scanning Distance: 45 ft
  • Light Source: Laser
  • Barcode Symbology Supported:
    • UPC/EAN
    • UPC/EAN Supplementals
    • UCC/EAN 128
    • JAN-8
    • JAN-13
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Code 128
    • Code 128 Full ASCII
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • Code 11
    • Code 32
    • Bookland EAN
    • IATA
    • UCC/EAN RSS
    • RSS Variants
    • UPC/EAN
    • UPC/EAN Supplementals
    • UCC/EAN 128
    • JAN-8
    • JAN-13
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Code 128
    • Code 128 Full ASCII
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • Code 11
    • Code 32
    • Bookland EAN
    • IATA
    • UCC/EAN RSS
    • RSS Variants
  • Maximum Scan Resolution: 5 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: LS3578-FZ
  • Product Name: Symbol LS3578-FZ Barcode Reader
  • Product Line: Symbol

Physical Characteristics

  • Height: 7.3"
  • Width: 4.8"
  • Depth: 2.9"
  • Color:
    • Black
    • Yellow
  • Weight (Approximate): 14.80 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • Symbol LS3578-FZ Barcode Reader
    • Quick Start Guide
    • Symbol LS3578-FZ Barcode Reader
    • Quick Start Guide
  • Certifications & Standards:
    • Input transient protection:
    • IEC 1000-4-2
    • IEC 1000-4-3
    • IEC 1000-4-4
    • IEC 1000-4-5
    • IEC 1000-4-6
    • IEC 1000-4-11
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Japan VCCI/MITI/Dentori
    • Laser safety:
    • IEC825-1 Class 2
    • RoHS Compliance
  • Additional Information:
    • Interface Option:
    • Serial
    • Keyboard Wedge
    • Wand Emulation
    • IBM 468X/469X

Network & Communication

  • Bluetooth: Yes

Warranty

  • Limited Warranty: 3 Year

Power Description

  • Power Source: Battery
Part # Description Availability Price Order
50-16000-182R Motorola AC Power Line Cord, 2 Wire, 6', ungrounded, NEMA 1-15P Plug. (For use with 2 Wire, ungrounded Power Supplies) Ships Free Today $12.87

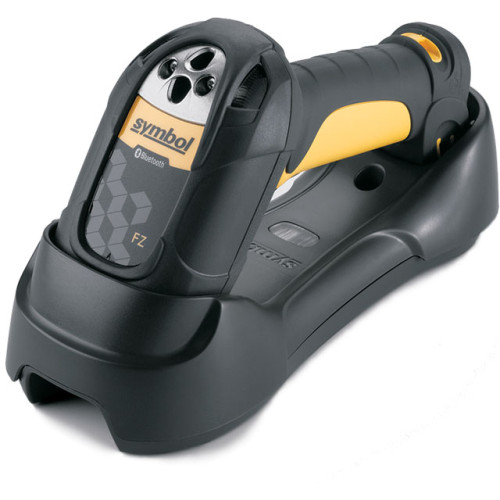

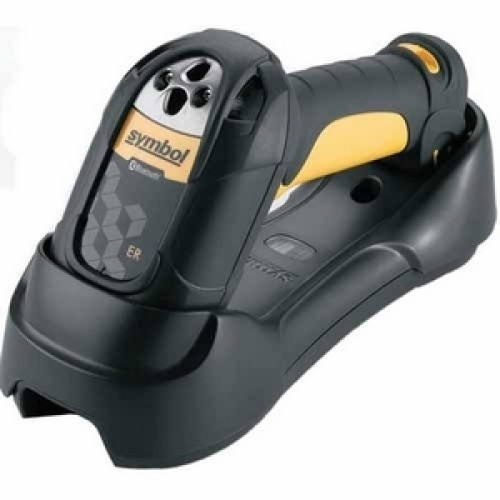

STB3578-C0007WR Symbol 3578 Standard Cradle, Radio/Charging used with NON FIPS compliant scanners. Ships Free Today $181.44
Retail $275
Save 34%
CBA-U01-S07ZAR Motorola Cable, USB Cable, 7 ft. (2m) Straight, Series A Connector. Ships Free Today $25.50
Retail $27
BTRY-LS34IAB00-00 Symbol Spare battery for LS3478, LS3578, DS3478 and DS3578 Ships Free Today $38.71
Retail $50
Save 22%
50-14000-266R Motorola DS3578-ER Accessories, Universal Power supply, 9v D/C, 100-250v AC. Requires Line Cord (Part#50-16000-182r). Ships Free Today $33.54
Retail $41
Save 18%
TSP-US-SC-3 BCI Service Contracts, True Support Contract 3-year - Scanners Includes Tier 1 and Tier 2 Technical Helpdesk Support 7:30am-cst-5:00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $48 per year for 3 years, billed annually.
Ships Free in 24-48 Hours
$48.00
SSS-LS3578-30 Symbol Service Contract - 3 year, Zebra OneCare Select. Includes Comprehensive coverage. Includes coverage for cradles. Check datasheet for regional availability.
Ships Free in 24-48 Hours
$66.83
Retail $86.90
Save 23%

The Symbol LS3578-FZ20005WR is also known as Symbol Technologies SYM-LS3578FZ20005WR or LS3578FZ20005WR .
