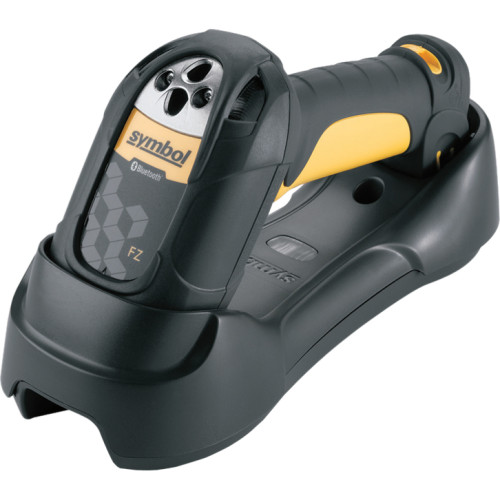

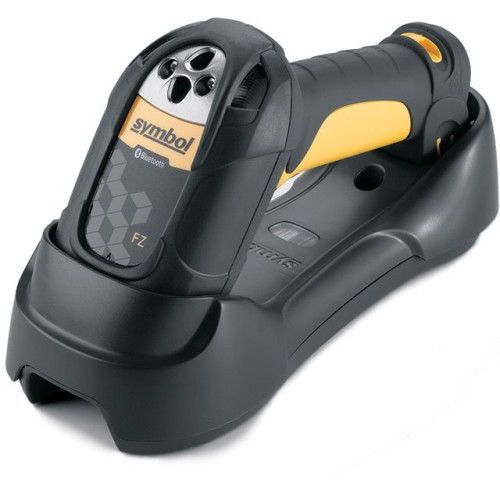

LS3578-FZBR0100UR - Symbol LS 3578 FZ Bar code Scanner

Designed to meet the challenges of harsh manufacturing environments, the Symbol LS3578-FZ features fuzzy logic technology which allows first pass reads of nearly any 1D barcode, even when the barcode is dirty or damaged. Reliable and secure wireless data transmission between the scanner and host is guaranteed with integrated Bluetooth, while the 150 ft. (45 m) range allows operators to move freely without being restricted by a cord. A rugged, drop-resistant design and a sealed housing provide reliability with less accident-related equipment failure and downtime.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
LS3578-FZBR0100UR LS 3578 FZ, RS-232 Kit, 1D Laser, Cordless, Fuzzy Logic. Includes Charging and Communications Cradle, RS-232 cable, Power supply, and Line Cord. Ships Free Today $740.88
Information:   |  Specifications  |  Symbol's LS 3578 FZ page  |
Accessories:   |  Accessories/Options  |  Symbol LS 3578 FZ service contract  |

LS3578-FZBR0100UR Details

Technical Information

  • Barcode Dimension: 1D
  • Scan Rate: 36 scan/s
  • Connectivity Technology: Wireless
  • Scanning Distance: 147.64 ft
  • Light Source: Laser
  • Barcode Symbology Supported:
    • UPC/EAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • JAN-8
    • JAN-13
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Code 128
    • Code 128 Full ASCII
    • Codabar (NW7)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • Code 11
    • Code 32
    • Bookland EAN
    • IATA
    • UCC/EAN RSS
    • RSS Variants
    • UPC/EAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • JAN-8
    • JAN-13
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Code 128
    • Code 128 Full ASCII
    • Codabar (NW7)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • Code 11
    • Code 32
    • Bookland EAN
    • IATA
    • UCC/EAN RSS
    • RSS Variants
  • Maximum Scan Resolution: 5 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: LS3578-FZ
  • Product Name: Symbol LS3578-FZ Handheld Barode Scanner
  • Product Line: Symbol

Physical Characteristics

  • Color:
    • Black
    • Yellow
  • Weight (Approximate): 14.60 oz

Interfaces/Ports

  • Host Interface: Serial

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • Symbol LS3578-FZ Rugged Barcode Reader
    • Cradle
    • 7 ft. Straight RS-232 Cable
    • Universal Power Supply
    • US AC Line Cord
    • Symbol LS3578-FZ Rugged Barcode Reader
    • Cradle
    • 7 ft. Straight RS-232 Cable
    • Universal Power Supply
    • US AC Line Cord
  • Certifications & Standards:
    • IP65
    • RoHS Compliant
    • Radio EN 300 328
    • Input Transient Protection:
    • IEC 1000-4-2
    • IEC 1000-4-3
    • IEC 1000-4-4
    • IEC 1000-4-5
    • IEC 1000-4-6
    • IEC 1000-4-11
    • EMI/RFI:
    • EN 301 489-1
    • EN 301 489-17
    • IEC 60601-1-2
    • EN 55022, EN 55024
    • EN 61000-3-2
    • EN 61000-3-3
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Japan VCCI/MITI/Dentori
    • EN 301 489-1
    • EN 301 489-17
    • IEC 60601-1-2
    • EN 55022, EN 55024
    • EN 61000-3-2
    • EN 61000-3-3
    • Laser Safety:
    • IEC825-1 Class 2
    • EN 60825-1
    • IEC 60825-1
    • 21CFR1040.10
    • Electrical Safety:
    • UL 60950-1
    • C22.2 No. 60950-1
    • EN 60950-1
    • IEC 60950-1
    • RF Exposure:
    • EN 50360
    • EN 50361
    • FCC Part 2
    • OET Bulletin 65
    • RSS102
  • Additional Information:
    • Supported Interfaces:
    • SerialKeyboard WedgeIBM 468X/469XUSBSynapse

Power Description

  • Input Voltage: 14 V DC
  • Power Source: Battery

Warranty

  • Limited Warranty: 3 Year

Network & Communication

  • Bluetooth: Yes
Part # Description Availability Price Order
BTRY-LS34IAB00-00 Symbol Spare battery for LS3478, LS3578, DS3478 and DS3578 Ships Free Today $38.71
Retail $50
Save 22%
21-52612-01R Symbol Rugged scanner holder (can be mounted on forklift) Ships Free Today $82.67
Retail $125
Save 33%
11-66553-06R Symbol Wall mount bracket for several Motorola DS and LS barcode scanners. Color: Gray. Ships Free Today $28.37
Retail $32
Save 11%
TSP-US-SC-3 BCI Service Contracts, True Support Contract 3-year - Scanners Includes Tier 1 and Tier 2 Technical Helpdesk Support 7:30am-cst-5:00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $48 per year for 3 years, billed annually.
Ships Free in 3-5 Days
$48.00
SSS-LS3578-30 Symbol Service Contract - 3 year, Zebra OneCare Select. Includes Comprehensive coverage. Includes coverage for cradles. Check datasheet for regional availability.
Ships Free in 3-5 Days
$66.83
Retail $86.90
Save 23%

The Symbol LS3578-FZBR0100UR is also known as Symbol Technologies SYM-LS3578FZBR0100UR or LS3578FZBR0100UR .
