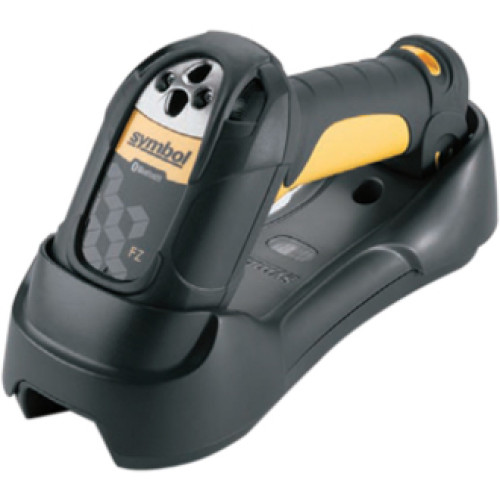

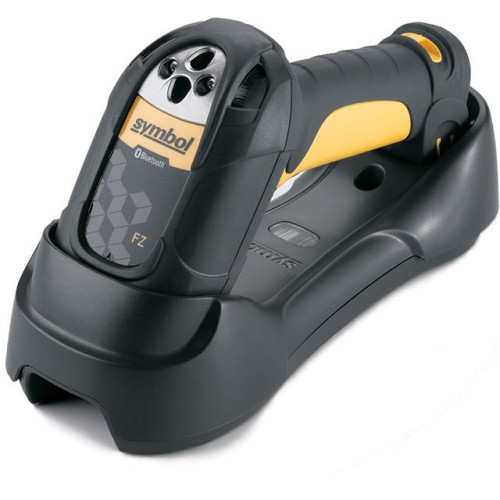

LS3578-FZBU01000R - Symbol LS 3578 FZ Bar code Scanner

Designed to meet the challenges of harsh manufacturing environments, the Symbol LS3578-FZ features fuzzy logic technology which allows first pass reads of nearly any 1D barcode, even when the barcode is dirty or damaged. Reliable and secure wireless data transmission between the scanner and host is guaranteed with integrated Bluetooth, while the 150 ft. (45 m) range allows operators to move freely without being restricted by a cord. A rugged, drop-resistant design and a sealed housing provide reliability with less accident-related equipment failure and downtime.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
LS3578-FZBU01000R LS 3578 FZ, USB Kit, 1D Laser, Cordless, Fuzzy Logic. Includes Charging and Communications Cradle and USB cable. Requires power supply and line cord. See accessories.
Information:   |  Specifications  |  Symbol's LS 3578 FZ page  |
Accessories:   |  Accessories/Options  |  Symbol LS 3578 FZ service contract  |

LS3578-FZBU01000R Details

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern: Single Line
  • Scan Rate: 36 scan/s
  • Connectivity Technology: Wireless
  • Light Source: Laser
  • Barcode Symbology Supported:
    • Supported Symbologies:
    • UPC.EAN
    • UPC.EAN with Supplemental
    • GS1-128 (formerly UCC/EAN 128)
    • JAN 8 & 13
    • Code 39
    • Code 39 Full ASCII
    • Code 39 Trioptic
    • Code 128
    • Code 128 Full ASCII
    • Codabar (NW7)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • Code 11
    • Code 32
    • Bookland EAN
    • IATA
    • GS1DataBar (formerly RSS)
    • Supported Symbologies:
    • UPC.EAN
    • UPC.EAN with Supplemental
    • GS1-128 (formerly UCC/EAN 128)
    • JAN 8 & 13
    • Code 39
    • Code 39 Full ASCII
    • Code 39 Trioptic
    • Code 128
    • Code 128 Full ASCII
    • Codabar (NW7)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • Code 11
    • Code 32
    • Bookland EAN
    • IATA
    • GS1DataBar (formerly RSS)
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 2.50" - 7.25"@5 mil - Code 39
    • 2" - 15.75"@7.50 mil - Code 39
    • 1" - 24"@13 mil - 100% UPC
    • 0 mil - 39.50"@20 mil - Code 39
    • 2" - 67"@40 mil - Code 39
    • 4" - 84"@55 mil - Code 39

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: LS3578-FZ
  • Product Name: Symbol LS3578-FZ Handheld Barcode Scanner
  • Product Line: Symbol

Physical Characteristics

  • Height: 7.3"
  • Width: 4.8"
  • Depth: 2.9"
  • Weight (Approximate): 14.60 oz

Interfaces/Ports

  • Host Interface: USB

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS

Warranty

  • Limited Warranty: 3 Year

Network & Communication

  • Bluetooth: Yes
Part # Description Availability Price Order
50-16000-182R Motorola AC Power Line Cord, 2 Wire, 6', ungrounded, NEMA 1-15P Plug. (For use with 2 Wire, ungrounded Power Supplies) Ships Free Today $12.88
BTRY-LS34IAB00-00 Symbol Spare battery for LS3478, LS3578, DS3478 and DS3578 Ships Free Today $38.71
Retail $50
Save 22%
50-14000-266R Motorola DS3578-ER Accessories, Universal Power supply, 9v D/C, 100-250v AC. Requires Line Cord (Part#50-16000-182r). Ships Free Today $33.62
Retail $41
Save 18%
21-52612-01R Symbol Rugged scanner holder (can be mounted on forklift) Ships Free Today $82.67
Retail $125
Save 33%
TSP-US-SC-3 BCI Service Contracts, True Support Contract 3-year - Scanners Includes Tier 1 and Tier 2 Technical Helpdesk Support 7:30am-cst-5:00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $48 per year for 3 years, billed annually.
Ships Free in 3-5 Days
$48.00
SSS-LS3578-30 Symbol Service Contract - 3 year, Zebra OneCare Select. Includes Comprehensive coverage. Includes coverage for cradles. Check datasheet for regional availability.
Ships Free in 3-5 Days
$66.83
Retail $86.90
Save 23%

The Symbol LS3578-FZBU01000R is also known as Symbol Technologies SYM-LS3578FZBU01000R or LS3578FZBU01000R .
