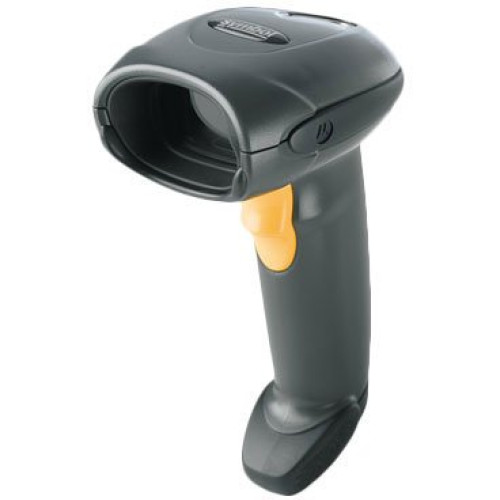

Photo of Symbol LS4208-SR20007ZZ Symbol logo

Symbol LS4208

Multiple interface. Color: Black. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# CBA-U01-S07ZAR), PS/2 (Part# CBA-K01-S07PAR), or RS-232 Serial cables (Part# CBA-R01-S07PAR) and a Power supply (Part# PWRS-14000-253R).

This part is replaced by LS4208-SR20007ZZR.
Call for Details



Symbol LS 4208 Scanner

The LS 4208 is the next generation of Symbol's best selling LS4000 laser scanner series. Designed to increase efficiencies in scan-intensive operations, the LS 4208 laser handheld scanner accelerates throughput with productivity-enhancing features never before delivered by a single scanner. It offers continuous, one-pass scanning, allowing novice and advanced users alike to process more items more rapidly and spend less time keying in data. With its innovative multi-line rastering scan pattern, the Symbol LS 4208 enables the quick and accurate scanning of all types of one-dimensional (1D) symbologies, including damaged symbols and stacked reduced space symbology (RSS) bar codes. It also provides a wide working range and superior motion tolerance to increase scanning flexibility and performance. Choose from a variety of interfaces, including USB, RS-232 and Keyboard wedge.

Full specifications (PDF)

Manufacturer part number: LS4208-SR20007ZZ

Technical Information

  • Form Factor: Handheld Scanner
  • Barcode Dimension: 1D
  • Symbologies Supported:
    • UPC/EAN Supplementals
    • Code 39
    • Code 39 Full ASCII
    • Trioptic Code 39
    • RSS Variants
    • UCC/EAN 128
    • Code 128
    • Code 128 Full ASCII
    • Code 93
    • Codabar (NW1)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • MSI
    • Code ll
    • IATA
    • Bookland EAN
    • Code 32
  • Scanner Type: Laser
  • Scan Rate: 200 decodes / second
  • Interface Options:
    • RS-232 - Standard, Nixdorf, ICL, & Fujitsu
    • IBM 468X/469X
    • Keyboard Wedge
    • USB - Standard, IBM SurePOS, Macintosh
    • Wand Emulation
  • Interface Connectivity: Corded
  • Scan Pattern: 2-D Raster
  • Input Voltage: 5 V DC
  • Depth of Field:
    • 1.5 - 5.5"@5mils - Code 39
    • 0 - 14"@10mils - Code 39
    • 0 - 19"@13mils - 100% UPC/EAN
    • 0 - 29"@20mils - Code 39

General Information

  • Manufacturer: Symbol
  • Product Name: LS4208 Barcode Scanner

Physical Characteristics

  • Dimensions: 6.7" (170.18mm) x 2.7" (68.58mm) x 3.7" (93.98mm)
  • Weight: 6.4 oz - Approximately
  • Color: Black

Agency Approvals

  • Agency Approvals:
    • UL1950
    • CSA C22.2 No. 950
    • EN60950/IEC950
    • CDRH Class II
    • IEC Class 2
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA

Environmental Conditions

  • Temperature:
    • 32°F (0°C) to 122°F (50°C) Operating
    • -40°F (-40°C) to 158°F (70°C) Storage
  • Humidity: 5 to 95% Non-condensing

Warranty

  • Manufacturer Warranty: 5 Year(s)
