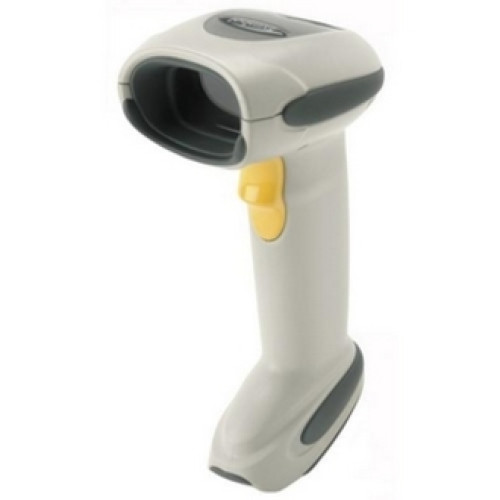

Photo of Symbol LS4278-SR20001ZZWW Symbol logo

Symbol LS4278

Scanner only with Bluetooth. Color: white. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# CBA-U01-S07ZAR), PS/2 (Part# CBA-K01-S07PAR), or RS-232 Serial cables (Part# CBA-R01-S07PAR), Power supply (Part# PWRS-14000-253R) and either Charging/Communications (Part# STB4278-C0007WR) or Charging-only cradles (Part# STB4208-C0007R).

This part is replaced by LS4278-SR20001ZZWR.
Call for Details
Ships in 24-48 hours

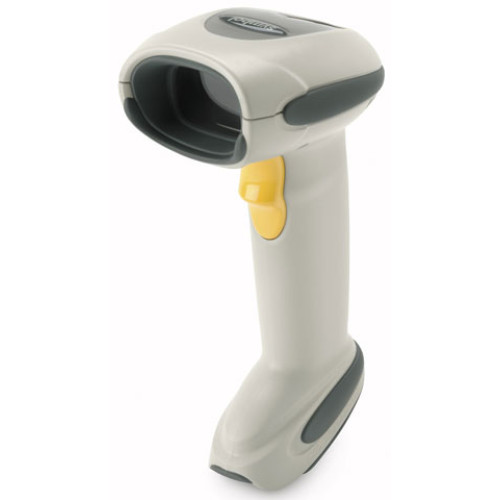

Symbol LS4278 Scanner

The Symbol LS4278 helps users increase productivity and cut costs while providing free movement throughout the workspace. Its unique array of productivity-enhancing features allow novice and advanced users to process items more rapidly and spend less time keying in data. The addition of Bluetooth wireless communications provides workers with the cordless freedom to move to large bulky items for scanning instead of risking injury from lifting heavy objects plus the ability to physically check all sides of a shopping cart for unscanned items. The LS4278 communicates via Bluetooth to the cradle, which in turn connects to the host computer via a variety of connection interfaces, including USB, Keyboard wedge and RS-232.

Full specifications (PDF)

Manufacturer part number: LS4278-SR20001ZZWW

Technical Information

  • Form Factor: Handheld Scanner
  • Symbologies Supported:
    • UPC/EAN Supplementals
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • RSS Variants
    • UCC/EAN 128
    • Code 128
    • Code 128 Full ASCII
    • Code 93
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • MSI
    • IATA
    • Code 32
    • Bookland EAN
    • Codabar (NW1)
  • Scanner Type: Laser
  • Scan Rate: 200 decodes / sec
  • Interface Options: Bluetooth - Scanner
  • Interface Connectivity: Cordless
  • Cordless Range: 50ft
  • Scan Pattern: Omnidirectional
  • Input Voltage:
    • 5 V DC - Cradle (External Power, Charging / Non Charging)
    • 5 V DC - Cradle (Host Power, Charging / Non Charging)
    • 12 V DC - Cradle (External Power, Through Cable)
    • 12 V DC - Cradle (Host Power, Through Cable)
  • Depth of Field:
    • 1.5 - 5.5"@5mils - Code 39
    • 0 - 19"@13mils - 100% UPC/EAN
    • 0 - 14"@10mils - Code 39
    • 0 - 29"@20mils - Code 39
  • Battery Capacity: 720 mAh

General Information

  • Manufacturer: Symbol
  • Product Name: LS4278 Barcode Scanner

Physical Characteristics

  • Dimensions:
    • 7.3" (185.42mm) x 2.7" (68.58mm) x 3.85" (97.79mm) - Scanner
    • 2.0" (50.8mm) x 3.4" (86.36mm) x 8.35" (212.09mm) - Cradle
  • Weight:
    • 238 g - Scanner
    • 183 g - Cradle
  • Color: White

Agency Approvals

  • Agency Approvals:
    • UL1950
    • CSA C22.2 No.950
    • EN60950/IEC950
    • CDRH Class II
    • IEC Class 2
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA
    • IEEE 802.11

Environmental Conditions

  • Temperature:
    • 0°C (32°F) to 50°C (122°F) Operating
    • -40°C (-40°F) to 70°C (158°F) Storage
  • Humidity: 5 to 95% Non-condensing

Warranty

  • Manufacturer Warranty: 3 Year(s)
