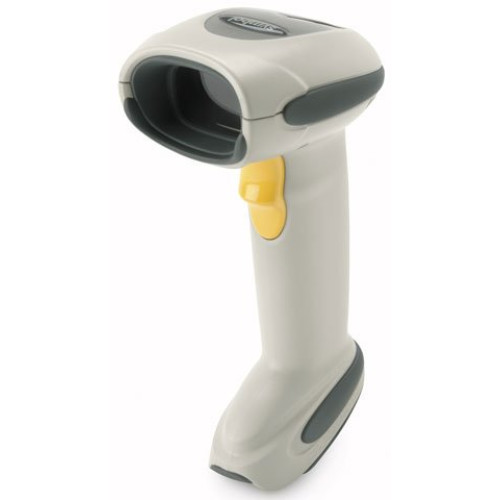

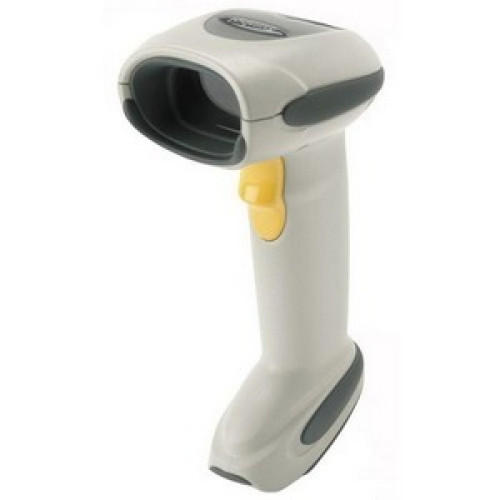

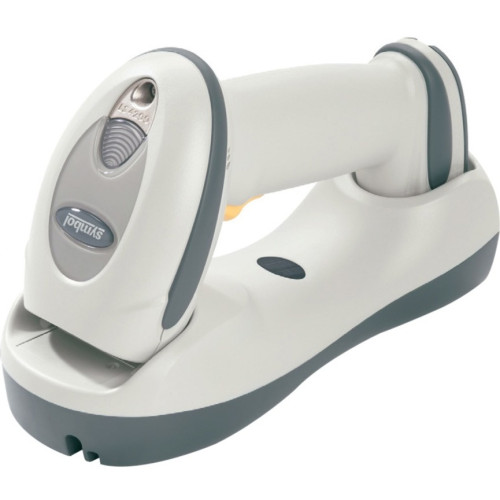

LS4278-TRWM0400ZWW - Symbol LS4278 Bar code Scanner

The cordless Symbol LS4278 leverages the innovative design of the corded LS4208. The Symbol LS4200 Series is the best handheld scanner series designed specifically for those customers who understand that keeping the line moving or the application running has a direct effect on their bottom line. The LS4278 is the next generation of the very popular LS407x series - Symbol's best selling laser scanner ever. Designed to increase efficiencies in scan-intensive operations, the Symbol LS4278 accelerates throughput with productivity-enhancing features. With an innovative multi-line rastering scan pattern, the LS4278 enables the quick and accurate scanning of all types of one-dimensional (1D) symbologies, including damaged symbols and stacked reduced space symbology (RSS) barcodes. It also provides a wide working range and superior motion tolerance to increase scanning flexibility and performance. The LS4278 offers continuous, one-pass scanning, allowing novice and advanced users alike to process more items more rapidly and spend less time keying in data.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
LS4278-TRWM0400ZWW LS4278, IBM 468x/9x Kit. 1D Laser, Cordless Charging Cradle, Color: White
Information:   |  Specifications  |  Symbol's LS4278 page  |
Accessories:   |  Accessories/Options  |  Symbol LS4278 service contract  |

LS4278-TRWM0400ZWW Details

Technical Information

  • Form Factor: Handheld Scanner
  • Symbologies Supported:
    • UPC/EAN Supplementals
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • RSS Variants
    • UCC/EAN 128
    • Code 128
    • Code 128 Full ASCII
    • Code 93
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • MSI
    • IATA
    • Code 32
    • Bookland EAN
    • Codabar (NW1)
  • Scanner Type: Laser
  • Scan Rate: 200 decodes / sec
  • Interface Options:
    • Bluetooth
    • IBM 468X/469X
  • Interface Connectivity: Cordless
  • Cordless Range: 50ft
  • Scan Pattern: Omnidirectional
  • Input Voltage:
    • 5 V DC - Cradle (External Power, Charging / Non Charging)
    • 5 V DC - Cradle (Host Power, Charging / Non Charging)
    • 12 V DC - Cradle (External Power, Through Cable)
    • 12 V DC - Cradle (Host Power, Through Cable)
  • Depth of Field:
    • 1.5 - 5.5"@5mils - Code 39
    • 0 - 19"@13mils - 100% UPC/EAN
    • 0 - 14"@10mils - Code 39
    • 0 - 29"@20mils - Code 39
  • Battery Capacity: 720 mAh

General Information

  • Manufacturer: Symbol
  • Product Name: LS4278 Barcode Scanner

Physical Characteristics

  • Dimensions:
    • 7.3" (185.42mm) x 2.7" (68.58mm) x 3.85" (97.79mm) - Scanner
    • 2.0" (50.8mm) x 3.4" (86.36mm) x 8.35" (212.09mm) - Cradle
  • Weight:
    • 238 g - Scanner
    • 183 g - Cradle
  • Color: White

Agency Approvals

  • Agency Approvals:
    • UL1950
    • CSA C22.2 No.950
    • EN60950/IEC950
    • CDRH Class II
    • IEC Class 2
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA
    • IEEE 802.11

Other

  • Package Contents:
    • LS4278 Barcode Scanner
    • 7ft straight IBM 468x/9x Port 5 Cable
    • Cradle
  • Cables Included: IBM 468X/469X

Environmental Conditions

  • Temperature:
    • 0°C (32°F) to 50°C (122°F) Operating
    • -40°C (-40°F) to 70°C (158°F) Storage
  • Humidity: 5 to 95% Non-condensing

Warranty

  • Manufacturer Warranty: 3 Year(s)
Part # Description Availability Price Order
CBA-U01-S07ZAR Motorola Cable, USB Cable, 7 ft. (2m) Straight, Series A Connector. Ships Free Today $25.50
Retail $27
CBA-R22-C09ZAR Symbol Cable, 9 feet, RS-232, ICL FUJITSU T POS POS500
Ships Free in 3-5 Days
$36.41
Retail $46
Save 20%
CBA-R08-S07ZAR Symbol Cable, 7 feet, RS-232, NIXDORF 5V, ST Ships Free Today $22.06
CBA-R06-C20PAR Symbol Cable, Universal Style 3, RS-232, 20 ft, Coiled, Gray Ships Free Today $57.65
Retail $83
Save 30%
CBA-K06-C12PAR Symbol Cable, 12 feet, Keyboard wedge, PS/2, Power Port and Coiled Ships Free Today $44.56
Retail $60
Save 25%
CBA-D02-C09ZAR Symbol Cable, Standard Undecoded, 9 ft, Coiled Ships Free Today Call for Details
BTRY-LS42RAA0E-01 Symbol Spare battery for LS4278, DS6878 and LI4278
Ships Free in 3-5 Days
$26.65
Retail $29

The Symbol LS4278-TRWM0400ZWW is also known as Symbol Technologies SYM-LS4278TRWM0400ZW or LS4278TRWM0400ZWW .
