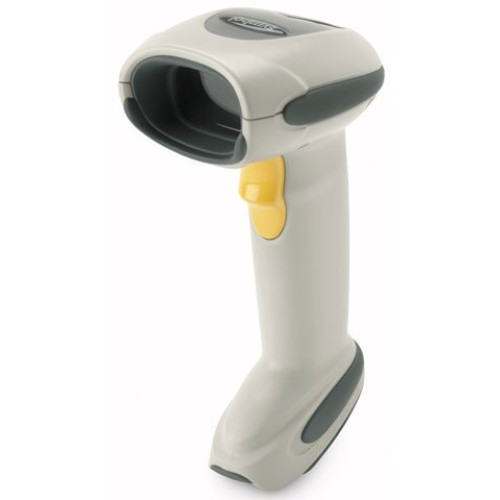

Symbol LS 4278 Barcode Scanner
Part #: LS4278-TRWU0100ZWW | SKU: 19806

The cordless Symbol LS 4278 leverages the innovative design of the corded LS4208. The Symbol LS4200 Series is the best handheld scanner series designed specifically for those customers who understand that keeping the line moving or the application running has a direct effect on their bottom line. The LS 4278 is the next generation of the very popular LS407x series - Symbol's best selling laser scanner ever. Designed to increase efficiencies in scan-intensive operations, the Symbol LS 4278 accelerates throughput with productivity-enhancing features. With an innovative multi-line rastering scan pattern, the LS 4278 enables the quick and accurate scanning of all types of one-dimensional (1D) symbologies, including damaged symbols and stacked reduced space symbology (RSS) barcodes. It also provides a wide working range and superior motion tolerance to increase scanning flexibility and performance. The LS 4278 offers continuous, one-pass scanning, allowing novice and advanced users alike to process more items more rapidly and spend less time keying in data.

Symbol LS 4278 Barcode Scanner

Part Details: LS 4278, USB Kit. 1D Laser, cordless charging cradle, Color: White

Additional Information

Connectivity No
Manufacturer No
Model Name LS 4278
Scanner Capability No
Scanner Type No

Technical Information

  • Form Factor: Handheld Scanner
  • Symbologies Supported:
    • UPC/EAN Supplementals
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • RSS Variants
    • UCC/EAN 128
    • Code 128
    • Code 128 Full ASCII
    • Code 93
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • MSI
    • IATA
    • Code 32
    • Bookland EAN
    • Codabar (NW1)
  • Scanner Type: Laser
  • Scan Rate: 200 decodes / sec
  • Interface Options:
    • Bluetooth
    • USB - Type A
  • Interface Connectivity: Cordless
  • Cordless Range: 50ft
  • Scan Pattern: Omnidirectional
  • Input Voltage:
    • 5 V DC - Cradle (External Power, Charging / Non Charging)
    • 5 V DC - Cradle (Host Power, Charging / Non Charging)
    • 12 V DC - Cradle (External Power, Through Cable)
    • 12 V DC - Cradle (Host Power, Through Cable)
  • Depth of Field:
    • 1.5 - 5.5"@5mils - Code 39
    • 0 - 19"@13mils - 100% UPC/EAN
    • 0 - 14"@10mils - Code 39
    • 0 - 29"@20mils - Code 39
  • Battery Capacity: 720 mAh

General Information

  • Manufacturer: Symbol
  • Product Name: LS4278 Barcode Scanner

Physical Characteristics

  • Dimensions:
    • 7.3" (185.42mm) x 2.7" (68.58mm) x 3.85" (97.79mm) - Scanner
    • 2.0" (50.8mm) x 3.4" (86.36mm) x 8.35" (212.09mm) - Cradle
  • Weight:
    • 238 g - Scanner
    • 183 g - Cradle
  • Color: White

Agency Approvals

  • Agency Approvals:
    • UL1950
    • CSA C22.2 No.950
    • EN60950/IEC950
    • CDRH Class II
    • IEC Class 2
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA
    • IEEE 802.11

Other

  • Package Contents:
    • LS4278 Barcode Scanner
    • 7ft straight USB Type A Cable
    • Cradle
  • Cables Included: USB

Environmental Conditions

  • Temperature:
    • 0°C (32°F) to 50°C (122°F) Operating
    • -40°C (-40°F) to 70°C (158°F) Storage
  • Humidity: 5 to 95% Non-condensing

Warranty

  • Manufacturer Warranty: 3 Year(s)
Extended Details
