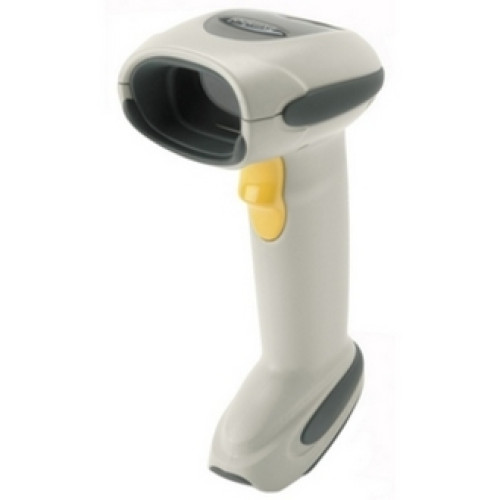

Photo of Symbol LS4278-TRWU0300ZWR Symbol logo

Symbol LS4278

PoweredUSB Kit. 1D Laser, cordless, Color: White. Call to purchase.

This part is replaced by LI4278-SR20001WR.
Call for Details



Symbol LS4278 Scanner

The Symbol LS4278 helps users increase productivity and cut costs while providing free movement throughout the workspace. Its unique array of productivity-enhancing features allow novice and advanced users to process items more rapidly and spend less time keying in data. The addition of Bluetooth wireless communications provides workers with the cordless freedom to move to large bulky items for scanning instead of risking injury from lifting heavy objects plus the ability to physically check all sides of a shopping cart for unscanned items. The LS4278 communicates via Bluetooth to the cradle, which in turn connects to the host computer via a variety of connection interfaces, including USB, Keyboard wedge and RS-232.

Full specifications (PDF)

Manufacturer part number: LS4278-TRWU0300ZWR

Technical Information

  • Form Factor: Handheld Scanner
  • Barcode Dimension: 1D
  • Symbologies Supported:
    • UPC/EAN Supplementals
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • RSS Variants
    • UCC/EAN 128
    • Code 128
    • Code 128 Full ASCII
    • Code 93
    • Codabar (NW1)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • MSI
    • Code ll
    • IATA
    • Bookland EAN
    • Code 32
  • Scanner Type: Laser
  • Scan Rate: 200 decodes per second
  • Interface Options:
    • IBM 468X/469X
    • RS-232C
    • Keyboard Wedge
    • Wand Emulation
    • USB
  • Interface Connectivity: Cordless
  • Cordless Range: 50'
  • Scan Pattern: 2-D Raster
  • Input Voltage: 5 V DC
  • Power Supply: External
  • Depth of Field:
    • 1.5 - 5.5"@5mils - Code 39
    • 0 - 19"@13mils - 100% UPC/EAN
    • 0 - 14"@10mils - Code 39
    • 0 - 29"@20mils - Code 39

General Information

  • Manufacturer: Motorola
  • Product Name: LS4278 Barcode Scanner

Physical Characteristics

  • Dimensions: 7.3" (185.42mm) x 2.7" (68.58mm) x 3.85" (97.79mm)
  • Weight: 8.4 oz
  • Color: White

Agency Approvals

  • Agency Approvals:
    • RoHS Compliant
    • UL1950
    • CSA C22.2 No. 950
    • EN60950/IEC950
    • CDRH Class II
    • IEC Class 2
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA

Other

  • Package Contents:
    • LS4278 Barcode Scanner
    • 7ft USB Power Plus Straight Cable
  • Cables Included: USB (Power Plus Connector)

Environmental Conditions

  • Temperature:
    • 32°F (0°C) to 122°F (50°C) Operating
    • -40°F (-40°C) to 158°F (70°C) Storage
  • Humidity: 5 to 95% Non-condensing

Warranty

  • Manufacturer Warranty: 3 Year(s)
