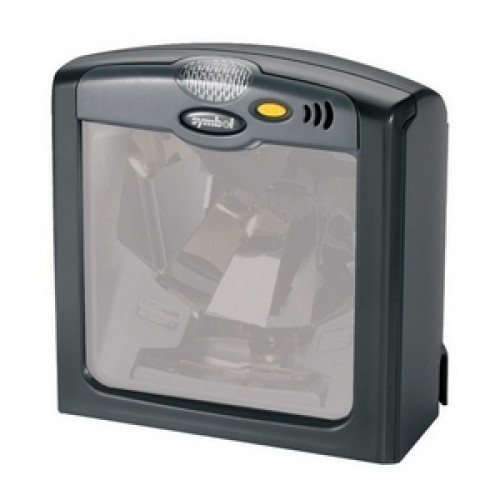

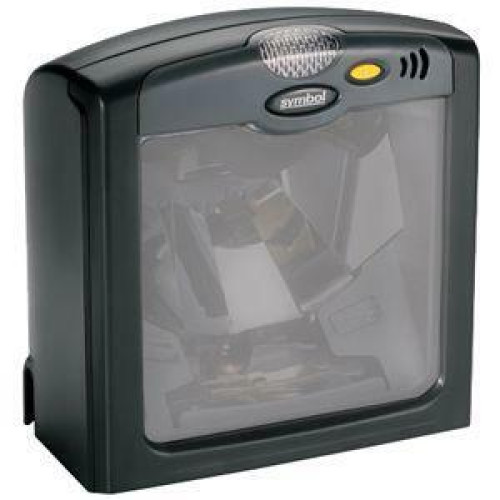

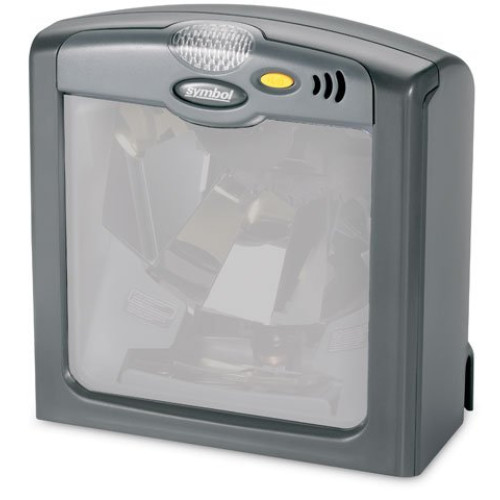

LS7708-BENK0100AR - Symbol LS7708 Bar code Scanner

Moving customers through checkout quickly is one of the most important issues faced by retailers today. The LS 7708 mini-slot scanner from Symbol is the perfect choice for retailers looking for higher throughput and increased productivity. The on-counter LS 7708 is available for presentation or swipe scanning in an attractive form factor. For fast, accurate merchandise scanning at checkout, this easy-to-use, hands-free scanner requires minimal operator effort. Every feature contributes to increased performance for more efficient, rapid customer checkouts.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
LS7708-BENK0100AR LS7708, Keyboard wedge kit: Includes PS/2 cable, power supply and AC line cord, EAS Antenna. Color: Black.
Information:   |  Specifications  |  Symbol's LS7708 page  |
Accessories:   |  No accessories available  |  Symbol LS7708 service contract  |

LS7708-BENK0100AR Details

Technical Information

  • Form Factor: Presentation Scanner
  • Resolution: 5 mil(s)
  • Symbologies Supported:
    • UPC/EAN/JAN
    • UPC/EAN Supplementals
    • UCC/EAN 128
    • Code 128
    • ISBT 128
    • Code 39
    • Code 39 TriOptic
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • Code 11
    • RSS Variants
    • Codabar
  • Scanner Type: Laser
  • Scan Rate: 2400 Scans/sec
  • Interface Options:
    • USB
    • RS-232
    • IBM 468X/469X
    • Standard Keyboard Wedge
    • Synapse
  • Interface Connectivity: Corded
  • Scan Pattern: Omnidirectional
  • Input Voltage Range: 4.75 to 5.5 V DC
  • Depth of Field:
    • 0.5 - 2.5"@5mils - 38%
    • 0 - 5"@7.8mils - 60%
    • 0 - 7.5"@10.4mils - 80%
    • 0 - 10"@13mils - 100% UPC/EAN

General Information

Physical Characteristics

  • Dimensions:
    • 6.3" (160.02mm) x 5.98" (151.89mm) x 3.73" (94.74mm)
    • 6.3" (160.02mm) x 5.98" (151.89mm) x x 3.73" (94.74mm)
  • Weight: 2 lb (0.91 kg) - Scanner only
  • Color: Black

Other

  • Package Contents:
    • LS7708 Barcode Scanner
    • EAS Antenna
    • 6' Straight Keyboard Wedge PS/2 Cable
    • 7.5' US Battery Charger
    • AC Line Cord
    • 120V AC Power Supply
  • Cables Included: Keyboard Wedge PS/2

Agency Approvals

  • Agency Approvals:
    • UL 1950
    • CSA C22.2 No. 950
    • EN60825
    • CDRH Class IIa
    • IEC 60825 Class 1
    • CISPR B
    • FCC B

Environmental Conditions

  • Temperature:
    • 0°C (32°F) to 40°C (104°F) Operating
    • -40°C (-40°F) to 70°C (158°F) Storage
  • Humidity: 5 to 95% Non-condensing

Warranty

  • Manufacturer Warranty: 2 Year(s)
Part # Description Availability Price Order
CBA-U01-S07ZAR Motorola Cable, USB Cable, 7 ft. (2m) Straight, Series A Connector. Ships Free Today $25.50
Retail $27
CBA-R22-C09ZAR Symbol Cable, 9 feet, RS-232, ICL FUJITSU T POS POS500
Ships Free in 3-5 Days
$36.41
Retail $46
Save 20%
CBA-R08-S07ZAR Symbol Cable, 7 feet, RS-232, NIXDORF 5V, ST Ships Free Today $22.06
CBA-R02-C09PAR Symbol Cable, Assembly (9 feet, Coiled, RS-232, STD-DB9 Female, TXD on 2). Required power supply not included, see (Part# PWRS-14000-253R). Ships Free Today $28.37
Retail $32
Save 11%

The Symbol LS7708-BENK0100AR is also known as Symbol Technologies SYM-LS7708BENK0100AR or LS7708BENK0100AR .
