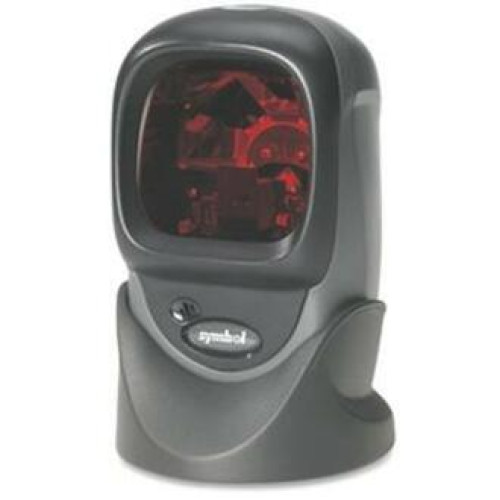

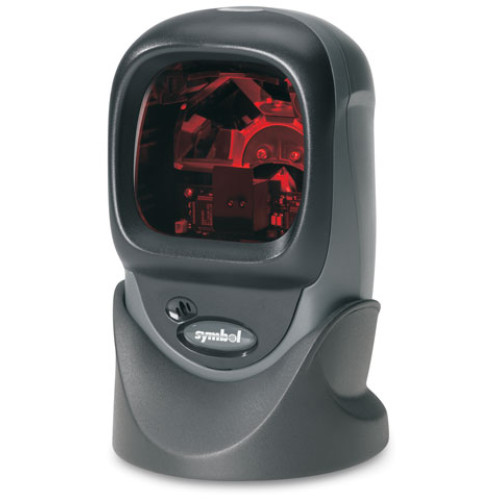

LS9203-7NNK0100E - Symbol LS9203 Bar code Scanner

The Symbol LS9203 is designed to speed the checkout process for customers while improving sales tracking and inventory management. The LS9203's high-performance handheld and presentation scanning capability enables point-of-sale employees to work faster and more accurately. Twenty scan lines improve bar code reading time - no more stopping to turn an item to get the scan line to line up with the bar code. The LS9203 also offers several connection options, including USB, Serial (RS232) and keyboard wedge. With its sturdy construction and small size, the Symbol LS9203 is perfect for checkout applications. See the LS9208 Scanner for single line/omnidirectional scanning and EAS support.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
LS9203-7NNK0100E LS9203, Keyboard wedge kit: Scanner, stand, 220V Euro Power supply, 6 ft. power port straight PS/2 Keyboard wedge cable and product CD. Color: Twilight Black.
Information:   |  Specifications  |  Symbol's LS9203 page  |
Accessories:   |  Accessories/Options  |

LS9203-7NNK0100E Details

Technical Information

  • Scan Pattern: Omni-directional
  • Scan Rate: 1500 scan/s
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • UPC/EAN/JAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • Code 128
    • ISBT 128
    • Code 39
    • Trioptic Code 39
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Chinese 2 of 5
    • Code 93
    • Code 11
    • Codabar
    • MSI
    • RSS-14
    • RSS-Limited
    • RSS-Expanded
    • UPC/EAN/JAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • Code 128
    • ISBT 128
    • Code 39
    • Trioptic Code 39
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Chinese 2 of 5
    • Code 93
    • Code 11
    • Codabar
    • MSI
    • RSS-14
    • RSS-Limited
    • RSS-Expanded
  • Maximum Scan Resolution: 5 mil
  • Depth of Field: 0 mil - 8.50"@13 mil - 100% UPC/EAN

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: LS9203
  • Product Name: Symbol LS 9203 Barcode Reader
  • Product Line: Symbol

Physical Characteristics

  • Height: 6.1"
  • Width: 3.9"
  • Depth: 3.9"
  • Color: Black
  • Weight (Approximate): 12.20 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Package Contents:
    • Symbol LS9203 Barcode Reader
    • Stand (LS9203-SR10007NSWW)
    • 220V Power Supply (50-14000-009)
    • 6ft Straight Keyboard Wedge PS/2 Cable (Power Port) (25-62417-20)
    • Product CD (SW-72099-01)
    • Symbol LS9203 Barcode Reader
    • Stand (LS9203-SR10007NSWW)
    • 220V Power Supply (50-14000-009)
    • 6ft Straight Keyboard Wedge PS/2 Cable (Power Port) (25-62417-20)
    • Product CD (SW-72099-01)
  • Certifications & Standards:
    • Electrical safety:
    • UL 1950
    • CSA C22.2 No. 950
    • Laser safety:
    • CDRH Class IIa
    • IEC 60825 Class 1
    • Note: Class IIa Laser Product. Avoid Long Term Viewing of Direct Laser Light
    • EMC:
    • CISPR B
    • FCC B
    • EN60825
  • Additional Information:
    • Supported Interfaces:
    • USB
    • Serial
    • Keyboard Wedge
    • Wand Emulation

Warranty

  • Limited Warranty: 2 Year

Power Description

  • Input Voltage: 5 V DC
Part # Description Availability Price Order
CBA-U01-S07ZAR Motorola Cable, USB Cable, 7 ft. (2m) Straight, Series A Connector. Ships Free Today $25.50
Retail $27
CBA-R22-C09ZAR Symbol Cable, 9 feet, RS-232, ICL FUJITSU T POS POS500
Ships Free in 3-5 Days
$36.41
Retail $46
Save 20%
CBA-R08-S07ZAR Symbol Cable, 7 feet, RS-232, NIXDORF 5V, ST Ships Free Today $22.06
CBA-R02-C09PAR Symbol Cable, Assembly (9 feet, Coiled, RS-232, STD-DB9 Female, TXD on 2). Required power supply not included, see (Part# PWRS-14000-253R). Ships Free Today $28.37
Retail $32
Save 11%

The Symbol LS9203-7NNK0100E is also known as Symbol Technologies SYM-LS92037NNK0100E or LS92037NNK0100E .
