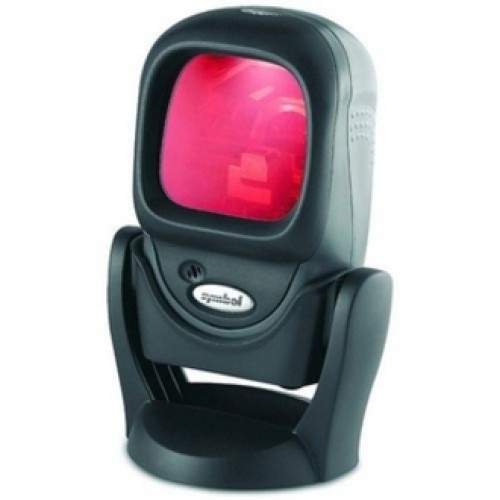

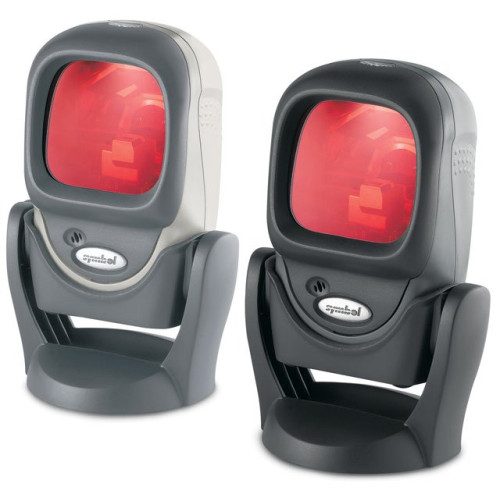

LS9208-SR10001NSWR - Symbol LS9208 Bar code Scanner

The LS9208 from Symbol Technologies serves as a presentation scanner and provides a high performance processor with an innovative 100-line rastering omnidirectional scan pattern for greater productivity at checkout, and increasing customer satisfaction. Created to be quick and versatile, the LS9208 offers both omni-directional and single-line scanning to cover any application. The LS9208 also supports Electronic Article Surveillance (EAS) for added security and convenience. Additionally, an adjustable multimount stand is included for greater adaptation in a variety of environments and is especially good at reading reduced space symbology (RSS) Best of all, it includes a 3 year warranty.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
LS9208-SR10001NSWR LS9208, Includes stand & product reference guide. Color: white. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# CBA-U01-S07ZAR), PS/2 (Part# CBA-K01-S07PAR), or RS-232 Serial cables (Part# CBA-R01-S07PAR) and a Power supply (Part# PWRS-14000-253R).
Information:   |  Specifications  |  Symbol's LS9208 page  |
Accessories:   |  Accessories/Options  |  Symbol LS9208 service contract  |

LS9208-SR10001NSWR Details

Technical Information

  • Scan Pattern:
    • Single Line
    • Omni-directional
  • Scan Rate: 1500 scan/s
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • UPC/EAN/JAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • Code 128
    • ISBT 128
    • Code 39
    • Trioptic Code 39
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • Code 11
    • Codabar
    • MSI
    • RSS Variants
    • UPC/EAN/JAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • Code 128
    • ISBT 128
    • Code 39
    • Trioptic Code 39
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • Code 11
    • Codabar
    • MSI
    • RSS Variants
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 1" - 2.50"@5 mil
    • 0 mil - 6"@7.80 mil
    • 0 mil - 7.50"@10.40 mil
    • 0 mil - 9"@13 mil - 100% UPC/EAN

General Information

  • Product Type: Desktop Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: LS9208
  • Product Name: Symbol LS 9208 Barcode Reader
  • Product Line: Symbol

Physical Characteristics

  • Height: 5.5"
  • Width: 3.5"
  • Depth: 3"
  • Color: White
  • Weight (Approximate): 10.20 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • Symbol LS 9208 Barcode Reader
    • Adjustable Stand
    • Symbol LS 9208 Barcode Reader
    • Adjustable Stand
  • Certifications & Standards:
    • RoHS Compliant
    • Electrical Safety:
    • UL 1950
    • CSA C22.2 No. 950 EN60825
    • Laser Safety:
    • CDRH Class IIa Laser Product
    • IEC 60825 Class 1 Laser Product
    • EMC:
    • CISPR B
    • FCC B
  • Additional Information:
    • Supported Interfaces:
    • USB
    • Serial
    • IBM 468X/469X
    • Keyboard Wedge
    • Wand Emulation
    • Synapse

Warranty

  • Limited Warranty: 30 Month

Power Description

  • Input Voltage: 5 V DC
Part # Description Availability Price Order
CBA-U01-S07ZAR Motorola Cable, USB Cable, 7 ft. (2m) Straight, Series A Connector. Ships Free Today $25.50
Retail $27
CBA-R22-C09ZAR Symbol Cable, 9 feet, RS-232, ICL FUJITSU T POS POS500
Ships Free in 24-48 Hours
$36.22
Retail $46
Save 21%
CBA-R08-S07ZAR Symbol Cable, 7 feet, RS-232, NIXDORF 5V, ST Ships Free Today $22.10
CBA-R02-C09PAR Symbol Cable, Assembly (9 feet, Coiled, RS-232, STD-DB9 Female, TXD on 2). Required power supply not included, see (Part# PWRS-14000-253R). Ships Free Today $28.43
Retail $32
Save 11%

The Symbol LS9208-SR10001NSWR is also known as Symbol Technologies SYM-LS9208SR11NSWR or LS9208SR10001NSWR .
