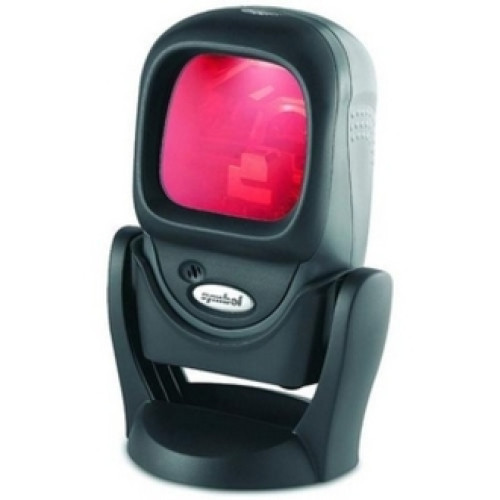

Photo of Symbol LS9208-SR10007NSWR Symbol logo

Symbol LS9208

Includes stand & product reference guide. Color: black. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# CBA-U01-S07ZAR), PS/2 (Part# CBA-K01-S07PAR), or RS-232 Serial cables (Part# CBA-R01-S07PAR) and a Power supply (Part# PWRS-14000-253R).

This part is replaced by LS9208-SR11007NSWR.
Call for Details
Ships in 24-48 hours

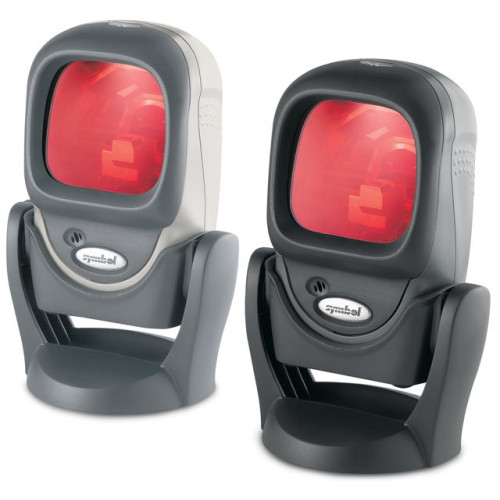

Symbol LS9208 Scanner

The Symbol LS9208 presentation scanner delivers both a high-performance processor and an innovative 100-line rastering omnidirectional scan pattern for increased productivity at checkout, resulting in higher customer satisfaction. Created to be quick and versatile, the LS9208 offers both omnidirectional and single-line scanning to cover any application. The LS9208 also supports Electronic Article Surveillance (EAS) for added security and convenience. Reads Reduced Space Symbology (RSS). All units feature a 30 month warranty.

Full specifications (PDF)

Manufacturer part number: LS9208-SR10007NSWR

Technical Information

  • Form Factor: Presentation Scanner
  • Resolution: 5 mil(s)
  • Symbologies Supported:
    • UPC/EAN/JAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • Code 128
    • ISBT 128
    • Code 39
    • Trioptic Code 39
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • Code 11
    • Codabar
    • MSI
    • RSS Variants
  • Scanner Type: Laser
  • Scan Rate:
    • 1500 Scans/sec (Omnidirectional)
    • 75 Scans/sec (Single scan line)
  • Interface Options:
    • USB
    • RS-232
    • IBM 468X/469X
    • Keyboard Wedge
    • Wand
    • Synapse
  • Interface Connectivity: Corded
  • Scan Pattern:
    • Single Line
    • Omnidirectional
  • Input Voltage: 5 V DC
  • Depth of Field:
    • 1 - 2.5"@5mils - 38%
    • 0 - 6"@7.8mils - 60%
    • 0 - 7.5"@10.4mils - 80%
    • 0 - 9"@13mils - 100% UPC/EAN

General Information

  • Manufacturer: Motorola
  • Product Name: LS9208 Barcode Scanner

Physical Characteristics

  • Dimensions:
    • 5.51" (139.95mm) x 3.49" (88.65mm) x x 2.96" (75.18mm) - Scanner only
    • 7.18" (182.37mm) x 4.83" (122.68mm) x x 3.73" (94.74mm) - With adjustable stand
  • Weight:
    • 10.2 oz - Scanner only
    • 21.5 oz - With adjustable stand
  • Color: Black

Agency Approvals

  • Agency Approvals:
    • RoHS Compliant
    • UL 1950
    • CSA C22.2 No. 950 EN60825
    • CDRH Class IIa Laser Product
    • IEC 60825 Class 1 Laser Product
    • CISPR B
    • FCC B

Other

  • Package Contents:
    • LS9208 Barcode Scanner
    • Adjustable Stand
    • Quick Reference Guide

Environmental Conditions

  • Temperature:
    • 32°F (0°C) to 104°F (40°C) Operating
    • -40°F (-40°C) to 158°F (70°C) Storage
  • Humidity: 5 to 95% Non-condensing

Warranty

  • Manufacturer Warranty: 30 Month(s)
