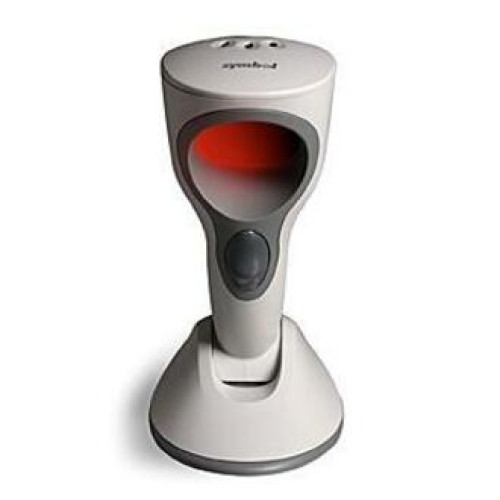

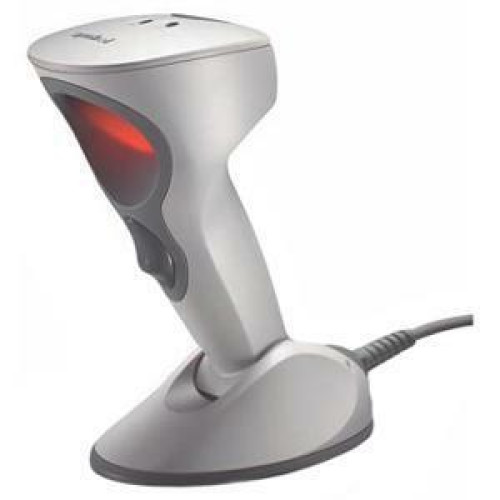

Symbol M2004 Cyclone Barcode Scanner
Part #: M2004-I400-0200AN | SKU: SYM3902

A smart investment Symbol's innovative new scanner is future-ready now. The M2004 Cyclone scanner decodes existing new and emerging barcode symbologies instantly. The M2004 Cyclone scanner is packed with features that deliver optimum flexibility including next generation scanning technology. As good looking as it is practical the M2004 Cyclone's sleek design complements any store's decor. Large merchandise or small single or multiple barcode types this scanner can handle it all. Revolutionary user-selectable scan pattern versatility plus remarkable ease of use and adaptability make the Adaptive M2004 Cyclone Scanner Series from Symbol Technologies a standout for barcode scanning at point of sale.

Symbol M2004 Cyclone Barcode Scanner

Part Details: M2004 Cyclone, RS-232 kit: Scanner, RS-232 cable, power supply, & product reference guide. Color: white.

Additional Information

Manufacturer Symbol
Model Name M2004 Cyclone

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern:
    • Single Line
    • Omni-directional
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • UPC/EAN/JAN
    • NW7
    • Code 128
    • Code 39 Full ASCII
    • MSI/PLESSEY
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • UCC/EAN 128
    • Codabar
    • PDF 417
    • UCC/EAN
    • RSS
    • UPC/EAN/JAN
    • NW7
    • Code 128
    • Code 39 Full ASCII
    • MSI/PLESSEY
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • UCC/EAN 128
    • Codabar
    • PDF 417
    • UCC/EAN
    • RSS
  • Maximum Scan Resolution: 5.50 mil
  • Depth of Field:
    • 0 mil - 2"@6 mil - Code 39
    • 0.30" - 11"@ - 100% UPC
    • 0.50" - 12"@20 mil - Code 39

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: M2004
  • Product Name: Cyclone M2004 Barcode Reader
  • Product Line: Cyclone

Physical Characteristics

  • Height: 7.8"
  • Width: 3.4"
  • Depth: 5.4"
  • Color: White
  • Weight (Approximate): 12 oz

Interfaces/Ports

  • Host Interface: Serial

Other

  • Package Contents:
    • Cyclone M2004 Barcode Reader
    • RS232 (8 1/2ft. Coiled) Cable w/ 9 Pin Female TxD on 2 (25-32465-21)
    • Power supply 110VAC (50-14000-008)
    • Cyclone M2004 Barcode Reader
    • RS232 (8 1/2ft. Coiled) Cable w/ 9 Pin Female TxD on 2 (25-32465-21)
    • Power supply 110VAC (50-14000-008)
  • Certifications & Standards:
    • Electrical Safety:
    • UL 1950
    • CSA C22.2 No. 950 EN60950/IEC950
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA
    • Laser Safety:
    • CDRH Class lla
    • IEC Class I

Warranty

  • Limited Warranty: 3 Year

Power Description

  • Input Voltage: 110 V AC
Extended Details
