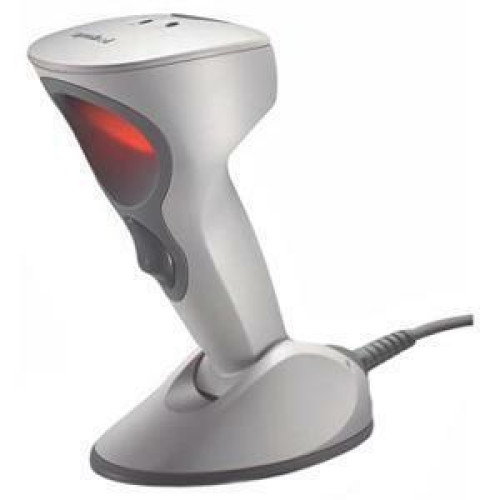

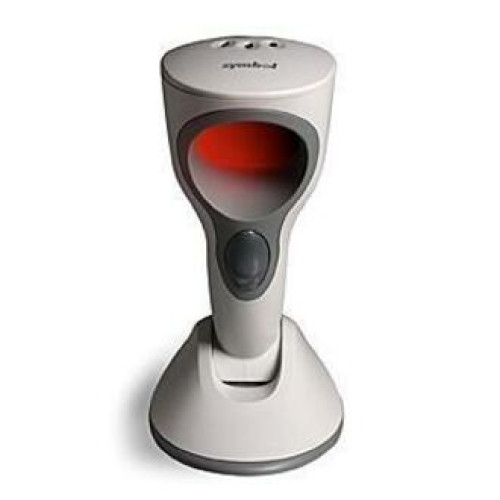

Symbol M2004 Cyclone Barcode Scanner
Part #: M2004-I500-0705ANR | SKU: SYM29430

A smart investment Symbol's innovative new scanner is future-ready now. The M2004 Cyclone scanner decodes existing new and emerging barcode symbologies instantly. The M2004 Cyclone scanner is packed with features that deliver optimum flexibility including next generation scanning technology. As good looking as it is practical the M2004 Cyclone's sleek design complements any store's decor. Large merchandise or small single or multiple barcode types this scanner can handle it all. Revolutionary user-selectable scan pattern versatility plus remarkable ease of use and adaptability make the Adaptive M2004 Cyclone Scanner Series from Symbol Technologies a standout for barcode scanning at point of sale.

Symbol M2004 Cyclone Barcode Scanner

Part Details: M2004 Cyclone, Keyboard wedge kit: Scanner, PS/2 Y-cable, power supply, & product reference guide. Color: black.

Additional Information

Manufacturer Symbol
Model Name M2004 Cyclone

Technical Information

  • Form Factor: Presentation Scanner
  • Barcode Dimension: 1D/2D
  • Resolution:
    • 6.6 mil(s) - Raster/Single Line
    • 5.5 mil(s) - Omni-directional
  • Symbologies Supported:
    • UPC/EAN/JAN
    • NW7
    • Code 128
    • Code 39 Full ASCII
    • MSI/PLESSEY
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • UCC/EAN
    • Codabar
    • PDF 417
    • RSS
  • Scanner Type: Laser
  • Interface Options: RS-232
  • Interface Connectivity: Corded
  • Scan Pattern:
    • Single Line
    • 2-D Raster
    • Omnidirectional
    • Semi-omni-directional
  • Input Voltage: 5.2 V DC
  • Power Supply: Included
  • Depth of Field:
    • 0 - 2"@6mils - Code 39 (Omni Zone)
    • 0 - 5.3" - 80 % UPC (Omni Zone)
    • 0.3 - 11" - 100 % UPC (Omni Zone)
    • 0.5 - 12"@20mils - Code 39 (Omni Zone)

General Information

  • Manufacturer: Motorola
  • Product Line: Cyclone
  • Product Name: Cyclone M2004 Barcode Scanner

Physical Characteristics

  • Dimensions: 3.4" (86.36mm) x 7.8" (198.12mm) x 5.4" (137.16mm)
  • Weight: 12 oz
  • Color: Black

Agency Approvals

  • Agency Approvals:
    • RoHS Compliant
    • Certified to UL 1950
    • CSA C22.2 No. 950 EN60950/IEC950
    • Australian SMA
    • ICES-003 Class B
    • FCC Part 15 Class B
    • European Union EMC Directive
    • IEC Class 2
    • CDRH Class ll

Other

  • Package Contents:
    • Cyclone M2004 Barcode Scanner
    • Synapse Adapter (9ft. Coiled) Cable
    • Synapse IBM PS/2 Keyboard Wedge Cable
    • 110 VAC Power Supply
  • Cables Included:
    • Synapse Adapter Cable
    • Synapse IBM PS/2 Keyboard Wedge Cable

Environmental Conditions

  • Temperature:
    • 32°F (0°C) to 104°F (40°C) Operating
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity: 5 to 95% Non-condensing

Warranty

  • Manufacturer Warranty: 3 Year(s)
Extended Details

Recommended Accessories for Model: Symbol M2004 Cyclone Barcode Scanner

  • Zebra LS 3408 Accessory
    Part #: CBA-R02-C09PAR | SKU: ZEB20870

    Cable Assembly (9 Feet, Coiled, RS232, STD-DB9 Female, TXD on 2). Required power supply not included, see (Part# PWRS-14000-253R).
    $45.06
    In Stock
  • Symbol LS 6004 Accessory
    Part #: CBA-S01-S07ZAR | SKU: SYM23711

    Synapse Adapter Cable, 7 ft. From scanner to synapse. (Must be used in conjunction with Synapse SmartCable. Please call for details.) RoHS.
  • Symbol Synapse Smart Cables Accessory
    Part #: STI80-0200R | SKU: SYM27539

    Synapse Smart Cables, Synapse Cable for IBM PS/2.
  • Symbol Synapse Smart Cables Accessory
    Part #: STI80-0100R | SKU: SYM29547

    Synapse Smart Cables, Synapse Cable for IBM XT/AT.
  • Symbol LS 6004 Accessory
    Part #: 25-32463-20 | SKU: SYM3769

    Synapse Adapter Cable, 6 ft. From scanner to synapse. (Must be used in conjunction with Synapse SmartCable STIxx-xxxx.)
