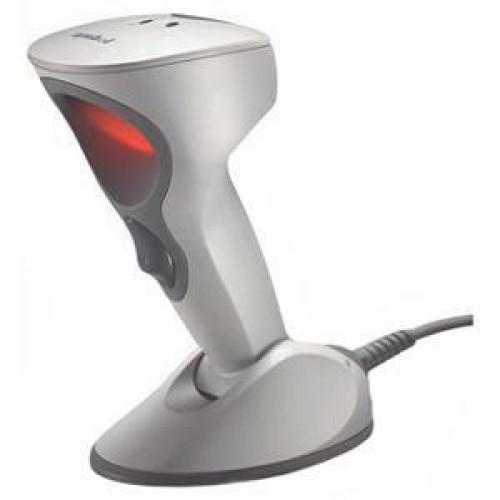

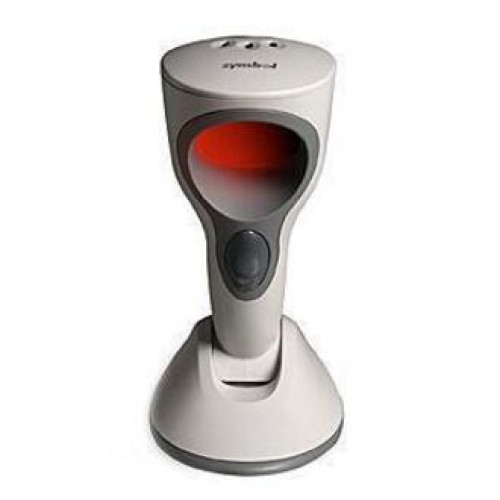

Photo of Symbol M2005-I400-0400ZNR Symbol logo

Symbol M 2005 Cyclone

Scanner with IBM Port 9B straight cable.

This part is replaced by DS9808-LR7NNM01ZR.
Call for Details



Symbol M2004 Cyclone Scanner

A smart investment, Symbol's innovative scanner is future-ready now. The M2004 Cyclone scanner decodes existing, new and emerging bar code symbologies instantly. The Cyclone scanner is packed with features that deliver optimum flexibility including next generation scanning technology. As good looking as it is practical, the Cyclone's sleek design complements any store's decor. Large merchandise or small, single or multiple bar code types, this scanner can handle it all. Revolutionary user-selectable scan pattern versatility plus remarkable ease of use and adaptability make the Adaptive "Cyclone" Scanner Series from Symbol Technologies a standout for bar code scanning at point of sale. All units ship with one product reference guide.

Full specifications (PDF)

Manufacturer part number: M2005-I400-0400ZNR

Technical Information

  • Form Factor: Presentation Scanner
  • Barcode Dimension: 1D/2D
  • Resolution:
    • 6.6 mil(s) - Raster/Single Line
    • 5.5 mil(s) - Omni-directional
  • Symbologies Supported:
    • UPC/EAN/JAN
    • NW7
    • Code 128
    • Code 39 Full ASCII
    • MSI/PLESSEY
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • UCC/EAN
    • Codabar
    • PDF 417
    • RSS
  • Scanner Type: Laser
  • Interface Options:
    • IBM 46XX
    • Synapse
  • Interface Connectivity: Corded
  • Scan Pattern:
    • Single Line
    • 2-D Raster
    • Omnidirectional
    • Semi-omni-directional
  • Input Voltage: 5.2 V DC
  • Depth of Field:
    • 0 - 2"@6mils - Code 39 (Omni Zone)
    • 0 - 5.3" - 80 % UPC (Omni Zone)
    • 0.3 - 11" - 100 % UPC (Omni Zone)
    • 0.5 - 12"@20mils - Code 39 (Omni Zone)

General Information

  • Manufacturer: Motorola
  • Product Line: Cyclone
  • Product Name: Cyclone M2005 Barcode Scanner

Physical Characteristics

  • Dimensions: 3.4" (86.36mm) x 7.8" (198.12mm) x 5.4" (137.16mm)
  • Weight: 12 oz
  • Color: White

Agency Approvals

  • Agency Approvals:
    • RoHS Compliant
    • Certified to UL 1950
    • CSA C22.2 No. 950 EN60950/IEC950
    • Australian SMA
    • ICES-003 Class B
    • FCC Part 15 Class B
    • European Union EMC Directive
    • IEC Class 2
    • CDRH Class ll

Other

  • Package Contents:
    • Cyclone M2005 Barcode Scanner
    • IBM 468X/9X Port 9B (7ft. Straight) Cable
  • Cables Included: IBM 468X/469X

Environmental Conditions

  • Temperature:
    • 32°F (0°C) to 104°F (40°C) Operating
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity: 5 to 95% Non-condensing

Warranty

  • Manufacturer Warranty: 3 Year(s)
