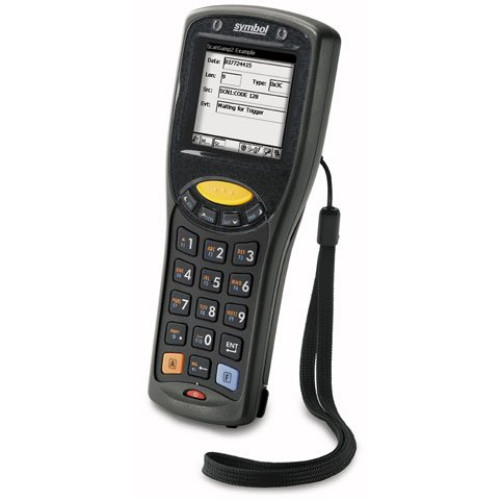

MC1000-KU0LA2U000R - Symbol MC 1000 Hand Held Computer

The Symbol MC 1000 lightweight mobile computer combines bar code scanning and data entry into one high-value yet rugged device, bringing enterprise mobility to light industrial and retail operations. Designed to complement the way people work, the MC 1000 is easy and comfortable to use throughout an extended shift. The MC 1000 has both a high-performance Intel processor and a high-quality one-dimensional (1D) linear laser scanner, as well as an SD card slot for memory upgrades and wireless connectivity. Built on the standards-based Windows CE platform, the MC 1000 provides application flexibility and broad development support to ensure long-term device value even as business needs evolve.

We respond to every email
Part # Description Availability Price Order
MC1000-KU0LA2U000R MC 1000, Batch, Laser, Monochrome non-touch display, Windows CE 4.2 Core, 21 key Numeric Keypad, Lithium-Ion Battery, lanyard. Charging & data cradle not included. See accessories.
Information:   |  Specifications  |  Symbol's MC 1000 page  |
Accessories:   |  Accessories/Options  |  Symbol MC 1000 service contract  |

MC1000-KU0LA2U000R Details

Technical Information

  • Connectivity Technology: Batch
  • Light Source: Laser
  • Electrostatic Discharge (ESD):
    • +/-10 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
  • Drop Specification: 48" To Concrete
  • Barcode Symbology Supported:
    • Interleaved 2 of 5 (ITF)
    • RSS-14 Limited
    • RSS-14 Expanded
    • Codabar (NW-7)
    • ITF
    • MSI Plessey
    • IATA 2 of 5
    • Code 39 (standard and full ASCII)
    • Code 93
    • Code 128
    • UPCA
    • UPCE
    • EAN-13 (WPC)
    • EAN-8
    • UPC/EAN supplementals
    • Coupon Code

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC1000
  • Product Name: MC1000 Mobile Computer

Physical Characteristics

  • Height: 6.4"
  • Width: 2.5"
  • Depth: 1.5"
  • Weight (Approximate): 7.23 oz


  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MC1000 Mobile Computer
    • Battery
    • Wrist Strap
    • Regulatory Guide
    • Quick Start Guide
    • MC1000 Mobile Computer
    • Battery
    • Wrist Strap
    • Regulatory Guide
    • Quick Start Guide
  • Certifications & Standards:
    • Electrical Safety:
    • Certified to UL60950
    • CSA C22.2 No. 60950
    • EN 60950
    • EMI/RFI:
    • CISPR 22 Class B
    • CISPR 24
    • FCC Part 15 Class B
    • EN 55022
    • EN 55024
    • Laser Safety:
    • 21.CFR1040.10 Class II
    • EN 60825
    • IEC 60825 Class 2
  • Additional Information: Environmental Sealing : IP54

Display & Graphics

  • Display Screen Type: LCD
  • Screen Size: 2.2"
  • Display Color: Monochrome
  • Screen Resolution: 240 x 240


  • Flash Memory: 32 MB
  • Standard Memory: 32 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: Secure Digital (SD) Card

Battery Information

  • Battery Capacity: 1800 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 312 MHz
  • Processor Type: XScale


  • Keyboard Type: Alphanumeric
  • Number of Keys: 25


  • Limited Warranty: 1 Year


  • Operating System: Windows CE 4.2
Part # Description Availability Price Order
MC1000-USB-STARTER Symbol MC1000 USB Starter Kit. Includes everything you need to run your MC1000: charging/communications cradle with spare battery port, USB cable, US power supply and AC line cord. Ships Free Today $113.00
MC1000-SERIAL-STARTER Symbol MC1000 Serial Starter Kit. Includes everything you need to run your MC1000: charging/communications cradle with spare battery port, serial cable, US power supply and AC line cord. Ships Free Today $115.90
HMC1000LI Global Technology Systems Symbol Replacement Battery, Replacement Battery (for the MC1000) Ships Free Today $27.88
Retail $31
BTRY-MC10EAB00 Symbol LiON 1800 mAh Rechargeable battery (Does not require separate battery charger, charges while MC1000 is in cradle)
Ships Free in 3-5 Days
Retail $32
Save 11%
50-16000-182R Motorola AC Power Line Cord, 2 Wire, 6', ungrounded, NEMA 1-15P Plug. (For use with 2 Wire, ungrounded Power Supplies) Ships Free Today $12.84
25-68596-01R Symbol MC67 Accessories, USB Client Communication Cable. USB A to Mini B. Ships Free Today $17.00
25-63856-01R Symbol Modem Adapter Cable needed to connect the (Part# MDM9000-100R) (Modem Module) to the MC70, MC75, MC1000, MC3000 and MC9000 Single Slot Cradles. Allows single slot cradle to be used as a modem cradle
Ships Free in 3-5 Days
25-63852-01R Symbol RS-232 Cable for cradle to the host system Ships Free Today $22.51
11-36244-03R Symbol Stylus, 3 Pack, Yellow, Compatible with SPT1800, PPT8800, MC9060-K, AND MC9060-S.
Ships Free in 3-5 Days
23844-00-00R Motorola US AC Line Cord, Grounded, 7.5', Three wire for power supplies (Part# KT-14000-148R) and (Part# 50-14000-241R) and (Part# PWRS-14000-148R). Ships Free Today $15.69
SSB-MC1000-30 Symbol Service Plan, 3-year, comprehensive coverage, Bronze service (3-day turnaround time) for your MC1000. Available only on new units.
Ships Free in 3-5 Days
Retail $125.24
Save 22%
SCBCI-TSP-HH-3 BCI Service Contracts, True Support contract 3-year - Mobile Computers Includes Tier 1 and Tier 2 Technical Helpdesk Support 7:30am-cst-5:00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection.
Ships Free in 3-5 Days

The Symbol MC1000-KU0LA2U000R is also known as Symbol Technologies SYM-MC1000KU0LA2U000 or MC1000KU0LA2U000R .
