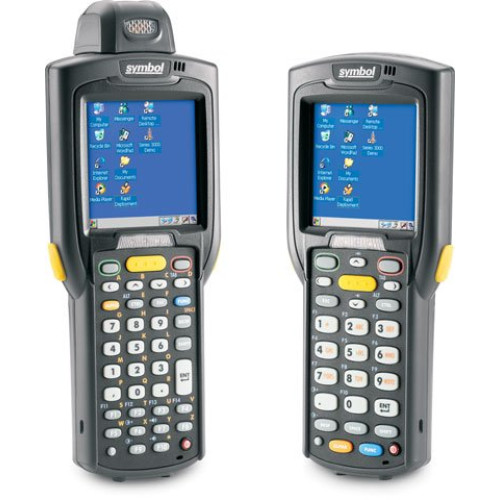

Symbol MC3000 Mobile Computer
Part #: MC30X0SICP48H-00E | SKU: SYM16363

The MC3000 from Symbol Technologies is a lightweight, rugged mobile computer ideal for scan-intensive environments that require high-quality data capture throughout the enterprise. Its superior ergonomic design and flexible configurations facilitate faster decision making and increased workforce satisfaction inside the retail store, on the loading dock or on a delivery route.

Symbol MC3000 Mobile Computer

Part Details: MC3000, Wireless LAN kit, Straight Shooter, Imager, Color Display, Windows CE Pro, 48 key, standard battery. Order cradle, cables & power supply separately. See accessories.

Additional Information

Display Resolution 320 x 320
IP Rating IP54
Manufacturer Symbol
Model Name MC3000
Network Connectivity Wi-Fi 3: 802.11g
Operating System Windows CE 4.2 Pro
RAM Memory 64 MB
Scanner Type Imager
Style Full-size

Technical Information

  • Operating System: Windows CE 4.2 Pro
  • Processor: Intel XScale 520MHz
  • Data Collection Type: Wireless
  • Wireless Security:
    • WEP 128 bit
    • WPA Home (PSK)
    • PEAP
    • WPA Enterprise (EAP Authenticated)
  • Scanner Type: Imager
  • Symbologies Supported:
    • Code 39
    • Code 128
    • Code 93
    • Codabar
    • Code 11
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • EAN-13
    • EAN-128
    • MSI/PLESSEY
    • TLC39
    • UPC-A
    • UPC-E
    • UPC/EAN Supplementals
    • Coupon Code
    • Micro PDF417
    • Macro Micro PDF-417
    • RSS-Expanded
    • RSS-Limited
    • RSS-14
    • DataMatrix
    • MaxiCode
    • U.S. Postnet
    • U.S. Planet
    • UK 4-State
    • Australian 4-State
    • Canadian 4 State
    • Japanese 4-State
    • Dutch Kix

General Information

  • Manufacturer: Symbol
  • Product Line: Mobile Computer (MC)
  • Product Name: MC30X0 Mobile Computer

Physical Characteristics

  • Display: Color VGA - Touch Screen
  • Display Resolution: 320 x 320
  • User Accessible Expansion Slot: MMC SD (For Memory Expansion Only)
  • Keyboard: 48 Key Alpha Numeric Shift Function Integrated
  • Battery Capacity: 4400 mAh
  • Battery Type: Lithium Ion - Included
  • Dimensions: 1.76" (45mm) x 3.18" (81mm) x 7.43" (189mm)
  • Weight: 13.4 oz

Environmental Conditions

  • Environmental Sealing: IP54
  • Temperature:
    • -10°C (14°F) to 50°C (122°F) Operating
    • -30°C (-22°F) to 70°C (158°F) Storage
  • Humidity: 5 to 95% Non-condensing
  • Electrostatic Discharge (ESD):
    • +/-15kVdc Air Discharge
    • +/-8kVdc Direct Discharge
    • +/-8kVdc Indirect Discharge
  • Drop Spec: 4' To Concrete
  • Tumble: 500 one-half meter tumbles at room temperature (1000 drops)

Agency Approvals

  • Agency Approvals:
    • Certified to UL60950
    • CSA C22.2 No. 60950
    • EN60950/IEC 950
    • North America:
    • FCC Part 2 (SAR)
    • FCC Part 15
    • RSS210 Class B
    • EN 301 489-1, 489-17
    • IEC Class 2/FDA Class II in accordance with IEC60825-1/EN60825-1

Other

  • Package Contents:
    • MC30X0 Mobile Computer
    • Battery
    • Handstrap
    • Stylus
    • Regulatory Guide
    • Quick Start Guide

Wireless Data Communications

  • Network Connectivity: WLAN 802.11 b/g
  • Maximum RF Data Rate Supported: 54 Mbps
  • Output Power: 100mW
  • Antenna Connectors: Internal
  • Frequency Band/Bandwidth: 2.4GHz to 2.5GHz

Memory

  • RAM Memory: 64MB
  • Flash Memory: 64MB

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited
