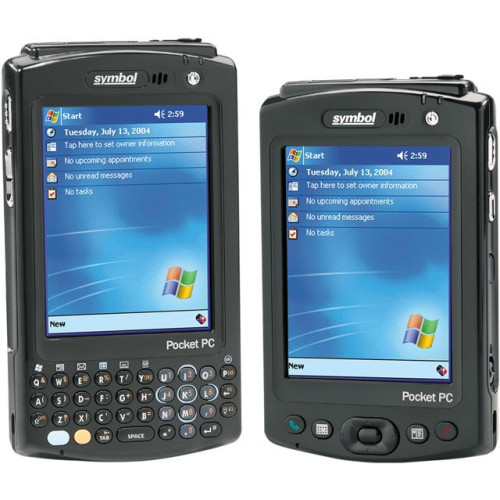

MC5040-PQ0DBQEA8WR - Symbol MC 50 Hand Held Computer

The MC 50 combines a PDA-style design with amazing bar code functionality to improve productivity. The MC 50's light weight contains voice and data communication capabilities, WLAN access and advanced data capture options.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
MC5040-PQ0DBQEA8WR MC 50, Wireless Enterprise Digital Assistant - 802.11b WLAN, Windows Mobile 2003, 64/64, QWERTY Key1.1 megapixel Color Camera with 3600 mAh battery Includes soft case (Part# 21-67294-01R). Order cradle, cables & power supply separately. See accessories. Formerly listed as (Part# MC50-CQ20)
Information:   |  Specifications  |  Symbol's MC 50 page  |
Accessories:   |  Accessories/Options  |  Symbol MC 50 service contract  |

MC5040-PQ0DBQEA8WR Details

Technical Information

  • Connectivity Technology: Wireless
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 36" To Tile Over Concrete

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC5040
  • Product Name: MC5040 Mobile Computer

Physical Characteristics

  • Height: 5.4"
  • Width: 3"
  • Length: 1.1"
  • Weight (Approximate): 8.80 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MC5040 Mobile Computer
    • Two Batteries
    • Hand Strap
    • Stylus
    • Softcase
    • MC5040 Mobile Computer
    • Two Batteries
    • Hand Strap
    • Stylus
    • Softcase
  • Certifications & Standards:
    • Electrical Safety:
    • UL60950 (UL Marking)
    • CSA C22.2 No. 60950 (c-UL Marking)
    • EN60950/IEC 950
    • EMI/RFI:
    • EU/International
    • EN 301 489-1 -17
    • EN61000-4-2: 1995, ESD ±8kV Air/ ±4kV Contact
    • EN61000-4-3: 1997, Radiated Immunity 3V/m
    • EN61000-4-4: 1995, EFT ± 0.5kV
    • EN61000-4-5: 1995, Surge ± 0.5kV
    • EN61000-4-6: 1
    • Laser Safety:
    • IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1
  • Additional Information:
    • CCD Camera:
    • Image Sensor: 1/4 in. Type 1.1 Mega-Pixel CCD
    • Maximum Frame Rate: 7.5 fps
    • Minimum Subject Illumination: 2 lux (at 5 fps)
    • Number of Output Pixels: 1144 (H) x 880 (V)
    • Image Output Interface: UYVY 8-bit
    • Lens F-Number: f2.8

Network & Communication

  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11b
  • Wireless Security:
    • Airbeam Safe (VPN)
    • CCX
    • EAP-TLS
    • FIPS 140-2
    • Kerberos
    • KeyGuard - (SBL TKIP)
    • LEAP
    • PEAP
    • TKIP
    • WEP 128 bit
    • WPA Home (PSK)
    • WPA Enterprise (EAP Authenticated)

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: QVGA
  • Screen Size: 3.5"
  • Display Color: Color
  • Screen Resolution: 240 x 320

Memory

  • Flash Memory: 64 MB
  • Standard Memory: 64 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: Secure Digital (SD) Card

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 520 MHz
  • Processor Type: XScale

Battery Information

  • Battery Capacity: 3600 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Keyboard/Keypad

  • Number of Keys: 37
  • Keyboard Layout: QWERTY

Touchscreen Information

  • Touchscreen: Yes

Software

  • Operating System: Windows Mobile 2003 Second Edition

Warranty

  • Limited Warranty: 1 Year

I/O Expansions

  • Expansion Slot Type: SDIO
Part # Description Availability Price Order
HMC50-LI36 Global Technology Systems Symbol Replacement Battery, MC50 Standard Battery Replacement. OEM Part Numbers: (Part# BTRY-MC50EAB00), Lithium-ion, 1660 mAh, 3.7V
Ships Free in 3-5 Days
$71.04
Retail $112.50
Save 36%
HMC50-LI Global Technology Systems Symbol Replacement Battery, Replacement Battery (Standard) for the Symbol MC50. OEM (Part# BTRY-MC50EAB00)
Ships Free in 3-5 Days
$39.30
Retail $45
Save 12%
11-36244-03R Symbol Stylus, 3 Pack, Yellow, Compatible with SPT1800, PPT8800, MC9060-K, AND MC9060-S. Ships Free Today $13.42

The Symbol MC5040-PQ0DBQEA8WR is also known as Symbol Technologies SYM-MC5040PQ0DBQEA8W or MC5040PQ0DBQEA8WR .
