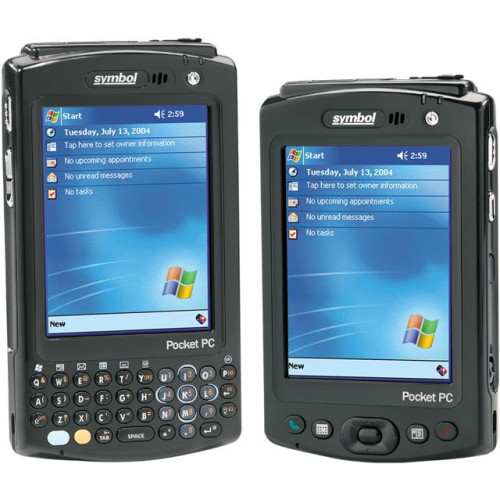

MC5040-PS0DBQEA8WR - Symbol MC 50 Hand Held Computer

The MC 50 combines a PDA-style design with amazing bar code functionality to improve productivity. The MC 50's light weight contains voice and data communication capabilities, WLAN access and advanced data capture options.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
MC5040-PS0DBQEA8WR MC 50, Wireless Enterprise Digital Assistant, WLAN, Positron, 64MB RAM, 64MB ROM, QWERTY keypad, Pocket PC 2003 (Microsoft Windows Mobile 2003 Second Edition), 3400 mAh (extended) battery. Order cradle, cables & power supply separately. See accessories.
Information:   |  Specifications  |  Symbol's MC 50 page  |
Accessories:   |  Accessories/Options  |  Symbol MC 50 service contract  |

MC5040-PS0DBQEA8WR Details

Technical Information

  • Operating System: Windows Mobile 2003 2nd Edition
  • Processor: Intel XScale 520MHz
  • Data Collection Type: Wireless
  • Wireless Security:
    • Airbeam Safe (VPN)
    • CCX
    • EAP-TLS
    • FIPS 140-2
    • Kerberos
    • Keyguard - (SBL TKIP)
    • LEAP
    • PEAP
    • TKIP
    • WEP 128 bit
    • WPA Home (PSK)
    • WPA Enterprise (EAP Authenticated)
  • Scanner Type: Imager - Linear CMOS CSE 600
  • Symbologies Supported:
    • Codabar
    • Code 39
    • Code 93
    • Code 128
    • Discrete 2 of 5
    • Interleaved 2 of 5
    • UCC/EAN 128
    • UPC/EAN

General Information

  • Manufacturer: Motorola
  • Product Line: Mobile Computer (MC)
  • Product Name: MC5040 Mobile Computer

Physical Characteristics

  • Display: 3.5" Color QVGA - Transflective TFT LCD
  • Display Resolution: 240 x 320
  • User Accessible Expansion Slot: SDIO
  • Keyboard: 37 Key QWERTY Integrated
  • Battery Capacity: 3600 mAh
  • Battery Type: Lithium Ion - Included
  • Dimensions: 5.35" (136mm) x 2.95" (75mm) x 0.94" (24mm)
  • Weight: 8.7 oz

Agency Approvals

  • Agency Approvals:
    • RoHS Compliance
    • UL60950 (UL Marking)
    • CSA C22.2 No. 60950 (c-UL Marking)
    • EN60950/IEC 950
    • EU/International
    • EN 301 489-1, -17
    • EN61000-4-2: 1995, ESD ±8kV Air/ ±4kV Contact
    • EN61000-4-3: 1997, Radiated Immunity 3V/m
    • EN61000-4-4: 1995, EFT ± 0.5kV
    • EN61000-4-5: 1995, Surge ± 0.5kV
    • EN61000-4-6: 1

Environmental Conditions

  • Temperature:
    • 32°F (0°C) to 155°F (68°C) Operating
    • -13°F (-25°C) to 104°F (40°C) Storage
  • Humidity: 5 to 95% Non-condensing
  • Electrostatic Discharge (ESD):
    • +/-15kVdc Air Discharge
    • +/-8kVdc Direct Discharge
    • +/-8kVdc Indirect Discharge
  • Drop Spec: 3' To Tile Over Concrete

Other

  • Package Contents:
    • MC5040 Mobile Computer
    • Battery
    • Hand Strap
    • Stylus
    • Softcase

Wireless Data Communications

  • Network Connectivity: WLAN 802.11b
  • Maximum RF Data Rate Supported: 11 Mbps
  • Output Power: 14.5dBm
  • Antenna Connectors: Internal
  • Frequency Band/Bandwidth: 2.4GHz to 2.5GHz

Memory

  • RAM Memory: 64MB
  • Flash Memory: 64MB

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited
Part # Description Availability Price Order
KT-73440-01R Symbol Stylus Non-Elastic Tether Kit - 3 Pack Ships Free Today $15.74
HMC50-LI36 Global Technology Systems Symbol Replacement Battery, MC50 Standard Battery Replacement. OEM Part Numbers: (Part# BTRY-MC50EAB00), Lithium-ion, 1660 mAh, 3.7V
Ships Free in 24-48 Hours
$71.04
Retail $112.50
Save 36%
HMC50-LI Global Technology Systems Symbol Replacement Battery, Replacement Battery (Standard) for the Symbol MC50. OEM (Part# BTRY-MC50EAB00)
Ships Free in 24-48 Hours
$39.30
Retail $45
Save 12%
50-16002-042R Motorola Cable Assembly DC Power Crd 4 Slot Crdl Ships Free Today $33.54
Retail $41
Save 18%
50-16000-182R Motorola AC Power Line Cord, 2 Wire, 6', ungrounded, NEMA 1-15P Plug. (For use with 2 Wire, ungrounded Power Supplies) Ships Free Today $12.87
25-69474-01R Symbol Cable Assembly (Direct USB Cable to MC50 - Requires ADP5000-00).
Ships Free in 24-48 Hours
$36.26
11-36244-03R Symbol Stylus, 3 Pack, Yellow, Compatible with SPT1800, PPT8800, MC9060-K, AND MC9060-S. Ships Free Today $13.44
50-16002-029R Motorola MC67 Accessories, DC Cable For Power Supply (P/N 50-14000-241R) Ships Free Today $33.37
Retail $41
Save 18%
23844-00-00R Motorola US AC Line Cord, Grounded, 7.5', Three wire for power supplies (Part# KT-14000-148R) and (Part# 50-14000-241R) and (Part# PWRS-14000-148R). Ships Free Today $15.76

The Symbol MC5040-PS0DBQEA8WR is also known as Symbol Technologies SYM-MC5040PS0DBQEA8W or MC5040PS0DBQEA8WR .
