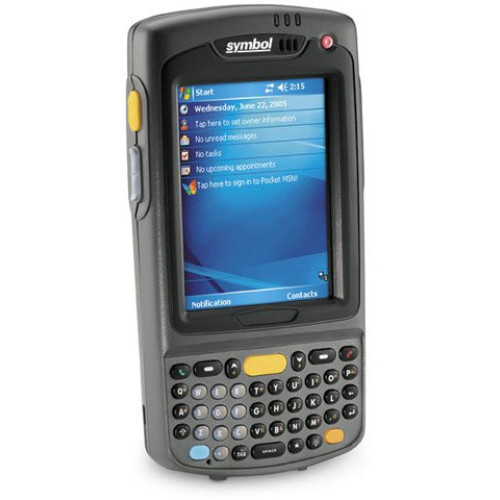

Photo of Symbol MC7004-PUCDJRHA70R Symbol logo

Symbol MC 70

GSM/EDGE/eGPRS, 1D Laser-SE950, Generic GSM Carrier Support, Color QVGA Display, 64MB/128MB, Numeric Keypad, Windows Mobile 5.0.0 Phone Edition, Bluetooth, 1X Battery

This part is replaced by MC7094-PUCDJRHA7WR.
Call for Details



Symbol MC 70 Hand Held Computer

The Symbol MC 70 is a rugged, compact, lightweight TNT-based portable data terminal with standard wireless connectivity using WAN/LAN/PAN and Bluetooth. Key features include a color 1/4 VGA display, 1D Laser Scanner/2D Imager, Converged voice and data (Voice over LAN/WAN), User-accessible memory (SDIO) and Windows Mobile 5.0 OS. The MC 70 is built to an industrial specification in terms of drop, temperature and sealing, giving industrial users and others in harsh operating environments the ultimate in durable connectivity.

Full specifications (PDF)

Manufacturer part number: MC7004-PUCDJRHA70R

Technical Information

  • Scanner Range: Standard Range
  • Connectivity Technology: Batch
  • Light Source: Laser
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification:
    • 48" To Concrete
    • 60" To Concrete73.4F (23C)
  • Barcode Symbology Supported:
    • Codabar (NW7)
    • Code 39
    • Code 93
    • Code 128
    • Discrete 2 of 5
    • Interleaved 2 of 5
    • UPC/EAN/JAN
    • UCC/EAN 128

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC70
  • Product Name: MC70 Mobile Computer

Physical Characteristics

  • Height: 1.5"
  • Width: 3"
  • Length: 6"

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MC70 Mobile Computer
    • Lithium-Ion Battery
    • Battery Cover
    • Hand Strap
    • Tethered Stylus
    • Protective Overlay
    • Regulatory Guide
    • Quick Start Guide
    • MC70 Mobile Computer
    • Lithium-Ion Battery
    • Battery Cover
    • Hand Strap
    • Tethered Stylus
    • Protective Overlay
    • Regulatory Guide
    • Quick Start Guide
  • Certifications & Standards:
    • Electrical Safety:
    • UL / cUL 60950-1
    • IEC / EN60950-1
    • RF Exposure:
    • Canada: RSS-102
    • EU: EN 50360
    • USA:
    • FCC Part 2
    • FCC OET Bulletin 65 Supplement C
    • Australia:AS/NZ 2772.1
    • ARPANSA
    • Bluetooth:
    • Canada: RSS-210
    • Australia: AS/NZS 4268
    • USA:
    • FCC Part 15.247
    • FCC Part 15.407
    • EU:
    • EN 300 328-1
    • EN 301 893
    • Japan:
    • ARIB STD-T33
    • ARIB STD-T66
    • ARIB STD-T71
    • Quad Band:
    • EU: EN301 511
    • Global:
    • 3GPP TS 51.010
    • GCF Approved Module
    • USA:
    • FCC Part 22
    • FCC Part 24
    • Canada:
    • RSS-132
    • RSS-133
    • Australia:
    • AS/ACIF S 018
    • AS TS 001
    • EMI/RFI Batch Versions:
    • North America: FCC Part 15
    • Canada: ICES 003 Class B
    • EU: EN55022 Class B
    • EN 301 489-1
    • EN 301 489-7
    • EN 310 489-17
    • EN 60601-1-2
    • Australia: AS/NZS CISPRA 22
    • Laser Safety:
    • IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1
  • Additional Information:
    • Communication Option: Audio
    • Form Factor:Ruggedized Enterprise Digital Assistant (EDA)
    • Environmental Sealing: IP54
    • Tumble: 1,000 1.6 ft./.5 m tumbles (2,000 drops)
    • Voice Communication:
    • Integrated Voice-over-IP Ready (P2P, PBX, PTT)
    • Wi-Fi Certified

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: QVGA
  • Screen Size: 3.5"
  • Display Color: Color
  • Screen Resolution: 240 x 320

Memory

  • Flash Memory: 128 MB
  • Standard Memory: 64 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: Secure Digital (SD) Card

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 624 MHz
  • Processor Type: XScale

Battery Information

  • Battery Capacity: 1900 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Network & Communication

  • Bluetooth: Yes
  • Cellular Network Supported: GSM
  • Network Band: Quad Band

Keyboard/Keypad

  • Keyboard Type: Numeric
  • Number of Keys: 26

Touchscreen Information

  • Touchscreen: Yes

Software

  • Operating System: Windows Mobile 5.0 Premium Phone Edition

Warranty

  • Limited Warranty: 1 Year

I/O Expansions

  • Expansion Slot Type: SDIO
