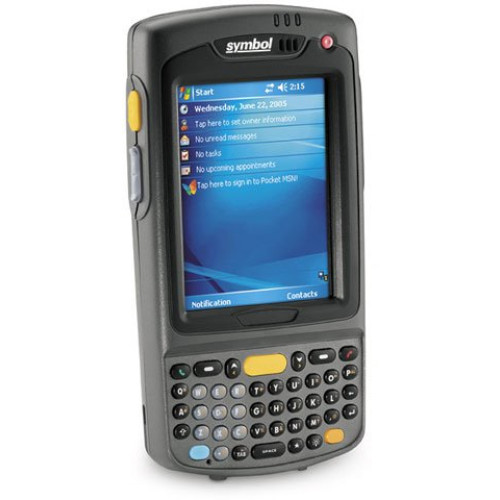

Photo of Symbol MC7090-PK0DJQFA7WR Symbol logo

Symbol MC 70

Wi-Fi (802.11a/b/g), 2D Imager, USB/RS-232 interfaces, Windows Mobile 5.0 Phone Edition, 64MB SDRAM/128MB ROM, GPS, QWERTY keypad, Bluetooth, 1X Battery. Charging/communications cradle, USB cable, US power supply, and AC line cord sold separately.

Hand Held Computer
This part is replaced by MC75A0-P40SWQQA9WR.
Call for Details


Symbol MC 70 Hand Held Computer

The flagship MC70 Enterprise Digital Assistant (EDA) is a rugged handheld mobile device that incorporates a mobile phone, PDA, computer, scanner and imager in a single unit designed for the rigors of all-day, everyday usage. This compact, lightweight device combines multi-mode wireless networking, voice and data communications, and advanced data capture in an enterprise productivity tool that can support nearly any application in any environment. Superior voice functionality includes outstanding acoustic performance and voice quality, handset, headset and speakerphone modes, as well as push to talk capability (if supported by your WLAN application or WWAN carrier). Your mobile workers will have everything they need to increase productivity and efficiency inside and outside your four walls - from field workers reading meters and repairing equipment to drivers delivering packages, hospital workers checking lab results and medication orders, and more.

Full specifications (PDF)

Manufacturer part number: MC7090-PK0DJQFA7WR

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification:
    • 48" To Concrete
    • 60" To Concrete73.4°F (23°C)

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC70
  • Product Name: MC70 Mobile Computer

Physical Characteristics

  • Height: 1.5"
  • Width: 3"
  • Length: 6"
  • Weight (Approximate): 12 oz

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: QVGA
  • Screen Size: 3.5"
  • Display Color: Color
  • Screen Resolution: 240 x 320


  • Flash Memory: 128 MB
  • Standard Memory: 64 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: Secure Digital (SD) Card

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g

Battery Information

  • Battery Capacity: 1900 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 624 MHz
  • Processor Type: XScale


  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS


  • Number of Keys: 44
  • Keyboard Layout: QWERTY

Touchscreen Information

  • Touchscreen: Yes


  • Operating System: Windows Mobile 5.0 Premium Edition


  • Limited Warranty: 1 Year

I/O Expansions

  • Expansion Slot Type: SDIO
