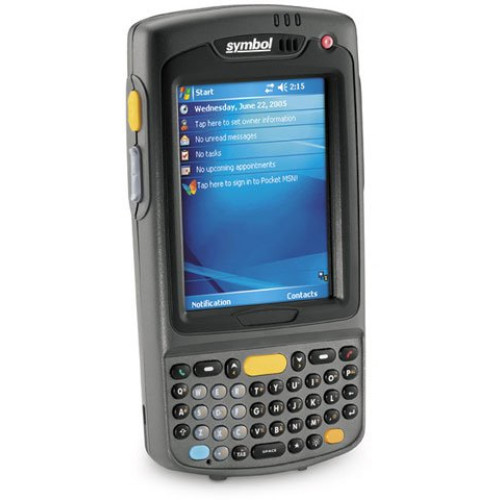

MC7094-PKCDJQHA8WR - Symbol MC 70 Hand Held Computer

The flagship MC70 Enterprise Digital Assistant (EDA) is a rugged handheld mobile device that incorporates a mobile phone, PDA, computer, scanner and imager in a single unit designed for the rigors of all-day, everyday usage. This compact, lightweight device combines multi-mode wireless networking, voice and data communications, and advanced data capture in an enterprise productivity tool that can support nearly any application in any environment. Superior voice functionality includes outstanding acoustic performance and voice quality, handset, headset and speakerphone modes, as well as push to talk capability (if supported by your WLAN application or WWAN carrier). Your mobile workers will have everything they need to increase productivity and efficiency inside and outside your four walls - from field workers reading meters and repairing equipment to drivers delivering packages, hospital workers checking lab results and medication orders, and more.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
MC7094-PKCDJQHA8WR MC 70, Windows Mobile 5.0 OS with 64MB RAM/128MB ROM, WAN/LAN/PAN, eGPRS, 802.11a/b/g and Bluetooth, Alphanumeric keypad, 2D Area Imager, extended battery. Cradles, power supply and communication cables not included. See accessories.
Information:   |  Specifications  |  Symbol's MC 70 page  |
Accessories:   |  Accessories/Options  |  Symbol MC 70 service contract  |

MC7094-PKCDJQHA8WR Details

Technical Information

  • Operating System: Windows Mobile 5.0 Premium Phone Edition
  • Processor: Intel PXA270 XScale 624MHz
  • Data Collection Type: Wireless
  • Wireless Security:
    • AES
    • LEAP
    • PEAP (MS-CHAP v2)
    • PEAP-TLS
    • TKIP
    • TLS
    • TTLS (CHAP)
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS-MD5
    • TTLS-PAP
    • WEP 40 bit
    • WEP 128 bit
    • WPA2
  • Scanner Type: Imager - SE 4400 2D Pico
  • Symbologies Supported:
    • Codabar
    • Code 11
    • Code 39
    • Code 93
    • Code 128
    • CompositeAB
    • Composite C
    • Coupon Code
    • DataMatrix
    • Discrete 2 of 5
    • Dutch Kix
    • EAN-8
    • EAN-13
    • Interleaved 2 of 5
    • Macro PDF-417
    • Micro PDF-417
    • Macro Micro PDF-417
    • MaxiCode
    • MSI
    • PDF 417
    • QR Code
    • RSS-Expanded
    • RSS-Limited
    • RSS-14
    • TLC39
    • Trioptic Code 39
    • UPC/EAN Supplementals
    • UPC-A
    • UPC-E
    • U.S. Planet
    • U.S. Postnet
    • Webcodes
    • Australian 4-State
    • Canadian 4 State
    • Japanese 4-State
    • UK 4-State

General Information

  • Manufacturer:
  • Product Line: Mobile Computer (MC)
  • Product Name: MC70 Mobile Computer

Physical Characteristics

  • Display: 3.5" Color QVGA - Touch Screen TFT LCD
  • Display Resolution: 240 x 320
  • User Accessible Expansion Slot: SDIO
  • Keyboard: 44 Key QWERTY Integrated
  • Battery Capacity: 3800 mAh
  • Battery Type: Lithium Ion - Included
  • Dimensions: 1.5" (38mm) x 3" (76mm) x 6" (152mm)
  • Weight: 12 oz

Environmental Conditions

  • Environmental Sealing: IP54
  • Temperature:
    • -10°C (14°F) to 68°C (154°F) Operating
    • -40°C (-40°F) to 60°C (140°F) Storage
  • Humidity: 95% Non-condensing
  • Electrostatic Discharge (ESD):
    • +/-15kVdc Air Discharge
    • +/-8kVdc Direct Discharge
    • +/-8kVdc Indirect Discharge
  • Drop Spec:
    • 4ft To Concrete
    • 5ft To Concrete 23°C
  • Tumble: 1000 1.6 ft./.5 m tumbles (2000 drops)

Agency Approvals

  • Agency Approvals:
    • RoHS Compliance
    • UL / cUL 60950-1
    • IEC / EN60950-1
    • Canada: RSS-102
    • EU: EN 50360
    • USA:
    • FCC Part 2
    • FCC OET Bulletin 65 Supplement C
    • Australia:
    • AS/NZ 2772.1
    • ARPANSA

Wireless Data Communications

  • Network Connectivity:
    • WLAN 802.11 b/g/a
    • WPAN Bluetooth
    • WWAN GSM/eGPRS (Quad Band 850/900/1800/1900 Mhz)
  • Maximum RF Data Rate Supported: 54 Mbps
  • Output Power: 100mW
  • Antenna Connectors: Internal
  • Frequency Band/Bandwidth: 2.4GHz to 5GHz

Other

  • Additional Information: Communication Option: Audio
  • Package Contents:
    • MC70 Mobile Computer Lithium-Ion Battery Battery Cover Hand Strap Tethered Stylus Protective Overlay Regulatory Guide Quick Start Guide
    • MC70 Mobile Computer Lithium-Ion Battery Battery Cover Hand Strap Tethered Stylus Protective Overlay Regulatory Guide Quick Start Guide

Memory

  • RAM Memory: 64MB
  • Flash Memory: 128MB

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited
Part # Description Availability Price Order
STYLUS-00002-03R Symbol Spring loaded stylus with teather for the MC70/MC75 series, (packet of 3). Ships Free Today $41.58
MC70-USB-STARTER Symbol MC70 USB Starter Kit. Includes everything you need to run your MC70: charging/communications cradle, USB cable, US power supply and AC line cord. Ships Free Today $165.90
MC70-SERIAL-STARTER Symbol MC70 Serial Starter Kit. Includes everything you need to run your MC70: charging/communications cradle, serial cable, US power supply and AC line cord. Ships Free Today $180.20
KT-105878-01R Motorola MC70/MC75 1.5x Battery Door and Strap. Extended battery sold separately (Part# BTRY-MC7XEAB00). Ships Free Today $24.35
HMC70-LI Global Technology Systems Symbol Replacement Battery, 3.7V/2200 mAh. OEM (Part# BTRY-MC70EAB00). Ships Free Today $39.17
Retail $50.40
Save 22%
HMC70-H-DC-ADP Motorola Cigarette Adapter (for the MC70 Charging Holster) Ships Free Today $18.33
HMC70-D Global Technology Systems Symbol Replacement Battery, Door Only Ships Free Today $15.55
HCH7033-CHG Global Technology Systems Charger-Cradle, 3 Cradle-3 Battery Charger (with Power supply Line Cord) for the MC70 and MC75
Ships Free in 24-48 Hours
$300.00
HCH7006-CHG Global Technology Systems 6-Bay Battery Charger (for the MC70)
Ships Free in 24-48 Hours
$245.00
BTRY-MC7XEAB00 Motorola Spare Battery, for use with MC70/MC75, 1.5X extended-capacity, Lithium-ion, 3600 mAh Ships Free Today $55.93
Retail $80
Save 30%
BTRY-MC70EAB02 Symbol Spare 2x Battery, 3800 mAh, for the MC70 (Door sold separately, see (Part# KT-79429-01R)) Ships Free Today $62.82
50-16000-182R Motorola AC Power Line Cord, 2 Wire, 6', ungrounded, NEMA 1-15P Plug. (For use with 2 Wire, ungrounded Power Supplies) Ships Free Today $12.87
25-68596-01R Symbol MC67 Accessories, USB Client Communication Cable. USB A to Mini B. Ships Free Today $17.00
25-63852-01R Symbol RS-232 Cable for cradle to the host system Ships Free Today $22.90
11-77967-01R Symbol Mc70 Fabric Holster Ships Free Today $47.32
23844-00-00R Motorola US AC Line Cord, Grounded, 7.5', Three wire for power supplies (Part# KT-14000-148R) and (Part# 50-14000-241R) and (Part# PWRS-14000-148R). Ships Free Today $15.74

The Symbol MC7094-PKCDJQHA8WR is also known as Symbol Technologies SYM-MC7094PKCDJQHA8R or MC7094PKCDJQHA8WR .
